Precision-Manufactured Warehouse Racking & Stacking Systems
Direct from our precision-engineered manufacturing plant in Guangzhou, China. Each system is designed, roll-formed, surface-treated, and load-tested under rigorous ISO 9001:2015 and CE EN15512 structural parameters.
Engineering Authority: Cold-Formed Steel Science & Structural Integrity
Modern warehouse logistics require structural reliability that balances steel elasticity, load-bearing capacities under live impact, and high-cube footprint economics. As a premier China stacking pallet racks manufacturer and global exporter, Guangzhou Heda Shelves Co., Ltd. builds every upright frame and beam connector upon rigorous structural metallurgy. Using first-tier certified Q235B and Q355B cold-rolled steel coils, our automated roll-forming lines stamp, bend, and profile structural components that adhere strictly to EN 15512, RMI (Rack Manufacturers Institute), and Australian AS 4084 standards.
Unlike conventional fabricators who rely on open structural channel welding, our precision-punched omega upright sections are engineered with multi-bend geometry. This profile design maximizes section modulus while minimizing deadweight, improving resistance against torsional twisting and forklift lateral impacts. Beam end-connectors are precision-welded with multiple interlocking claw hooks equipped with spring-locking pins, preventing beam dislodgement under sudden vertical forklift surges.
Technical Safety Factor: All HEDA selective, drive-in, and shuttle storage systems are engineered with a minimum design safety factor of 1.5 to 1.8 against yield stress. They feature site-specific finite element analysis (FEA) calibrated for local seismic classifications, dynamic live loading, and concrete floor slab elasticity.
Corrosion Engineering & 10-Stage Surface Treatment
Global warehouse installations across humid tropical zones, coastal ports, and sub-zero cold rooms face significant corrosion threats. Standard paint coats rapidly blister, leading to subsurface metal fatigue and cross-sectional structural loss. HEDA eliminates this through an automated 10-stage chemical and mechanical preparation line:
Acid Pickling & Degreasing
Total removal of mill scale, surface oxides, and oil lubricants via submerged chemical immersion baths.
Zinc Phosphating
Formation of a micro-crystalline conversion layer that chemically binds paint resins to raw structural steel.
Electrostatic Curing
Pure thermosetting epoxy-polyester powder applied at 180°C–200°C for high impact and scratch durability.
Future Sourcing & Procurement Trends (2025–2030)
Global supply chain volatility, urban real-estate costs, and e-commerce distribution pressures have fundamentally altered the stacking pallet rack procurement landscape. Procurement directors are shifting from evaluating price-per-kilogram toward total life-cycle asset management (TCO) and adaptive infrastructure. When auditing China stacking pallet racks manufacturers and exporters, global supply chain executives focus on three strategic trends:
1. Densification Over Horizontal Footprint Expansion
With industrial land costs rising near global mega-ports, traditional low-bay selective racking is increasingly complemented or replaced by high-density, high-cube dynamic structures. Radio shuttle systems, push-back arrays, and very narrow aisle (VNA) racking systems allow distribution centers to increase cubic space utilization by 40% to 75% without leasing additional property. Procurement teams now require manufacturers to provide upfront volumetric yield analyses alongside basic structural CAD drafts.
2. Semi-Automated & AMR-Integrated Storage Interfacing
Stacking racks are no longer standalone steel skeletons. The modern distribution facility requires racking structures to interface seamlessly with autonomous mobile robots (AMRs), automatic guided vehicles (AGVs), and automated storage and retrieval systems (AS/RS). This requires cold-formed profiles with tight dimensional tolerances (±0.5mm across upright alignments), precision ground anchoring, and sensor-friendly reflective guide channels.
3. Ocean Freight Volumetric Optimization & Knock-Down Packaging
Global sea freight fluctuates significantly. Tier-one Chinese exporters must provide advanced nesting and container-packing optimization. At HEDA Shelves, our logistics engineers pre-calculate container volume utilization using 3D stuffing software. By bundle-strapping upright frames with protective wooden spacers and nesting cold-formed box beams, our export packages routinely achieve over 95% volumetric efficiency in 40ft HQ containers. This significantly lowers the landed cost per pallet location at major discharge ports.
Engineering Comparison: Heavy-Duty Racking System Topologies
Selecting the optimal pallet racking configuration requires balancing access requirements, inventory rotation velocity (FIFO vs. LIFO), and operational handling equipment. Review our standard structural parameters below:
| System Architecture | Access Factor | Rotation Logic | Standard Bay Capacity | Common Industry Applications |
|---|---|---|---|---|

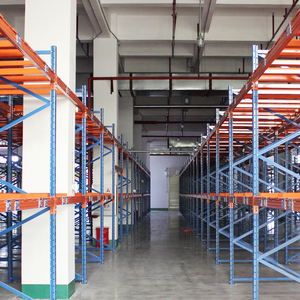

| Selective Pallet Racking | 100% Direct Access | FIFO / LIFO | 1,000 – 4,500 kg / level | 3PL Logistics, Retail Distribution, Multi-SKU Hubs |
| Radio Shuttle System | Lane Dependent | FIFO or LIFO | 500 – 2,000 kg / pallet | Cold Storage, Food & Beverage, Large-Batch FMCG |
| Push-Back Cart Racking | Lane Dependent (2-6 Deep) | Strict LIFO | 1,000 – 1,500 kg / cart | Medium Rotation Buffers, Automotive, Chemical |
| Gravity Flow Pallet Racks | Picking Face Only | Strict FIFO | 500 – 1,500 kg / pallet | Dairy, Pharmaceuticals, Perishable Goods |
| Heavy-Duty Cantilever | Open Face Frontage | Unrestricted | Up to 3,000 kg / arm | Pipes, Rebar, Timber, Sheet Metal, Heavy Extrusions |
Why Partner with Guangzhou Heda Shelves Co., Ltd.?
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into an international supplier of warehouse storage systems. Operating from a 30,000-square-meter facility with over 300 skilled technicians, roll-forming specialists, and structural design engineers, we oversee the entire production chain under one roof.
Full-Process In-House Control
We eliminate quality variance by managing all steel cutting, punching, high-precision roll-forming, robotic welding, and powder coating in-house.
Verified Global Certifications
Fully compliant with international auditing standards. Certified CE (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and RoHS.
Complimentary 3D & CAD Layouts
Our engineering division prepares structural calculations, static loading analyses, and 3D architectural models within 24 hours of inquiry.
Whether routing containerized shipments to Nhava Sheva, Mundra, Chennai, Chattogram, Colombo, Karachi, or inland multi-modal points via Kolkata, our export department ensures seamless shipping coordination, pre-cleared certificate documentation, and custom crating designed for open-ocean transit.
Frequently Asked Questions for Industrial Racking Procurement
Here are answers to the key engineering, logistical, and compliance questions warehouse managers, structural consultants, and procurement directors frequently raise:
What structural information is required to generate a racking layout?
To design an efficient layout and calculate accurate load points, we require: (1) Warehouse architectural drawings (CAD or dimensioned PDF) noting column grids, ceiling clear heights, and service obstacles; (2) Detailed pallet dimensions (Length x Width x Height including cargo overhang) and maximum gross weight; (3) Operational forklift specifications including turning radius, mast lift height, and mast collapsed height.
How does HEDA handle international seismic and building codes?
Every overseas layout is engineered to local site conditions. By evaluating geographical seismic zone factors, concrete slab thickness, and compressive strength ratings (e.g., C20/25, C30/37), our structural team sizes base plates, floor expansion anchors, and horizontal/vertical bracing networks to ensure full stability and compliance.
Can racking systems be configured for extreme cold or corrosive settings?
Yes. For cold storage and freezers down to -30°C, we specify fine-grain Q355D/E steel to eliminate low-temperature brittle fractures, finished with impact-resistant epoxy-polyester coatings. For outdoor yards, chemical zones, or maritime environments, we provide hot-dip galvanized components (ISO 1461) to provide long-term galvanic rust protection.
How are components marked and bundled to assist local installation teams?
Every export shipment is packed with steel framing strapping, plastic protective wrapping, and edge protectors to prevent transit damage. Packages feature color-coded and numbered tag IDs corresponding directly to our installation drawings and 3D erection step-by-step videos, enabling local engineering teams to erect complex structures efficiently.
Ready to Modernize Your Warehouse Facility?
Connect with our senior logistics engineering team to request structural calculations, custom rack profile roll-forming, and a complimentary 2D/3D CAD warehouse layout design tailored to your logistics requirements.
