Engineered Heavy-Duty Pallets & Warehouse Racking Systems
Direct from China's leading manufacturing lines: High-precision cold-rolled steel storage solutions designed for automated distribution centers, sub-zero cold chains, high-bay fulfillment hubs, and heavy-payload industrial environments.

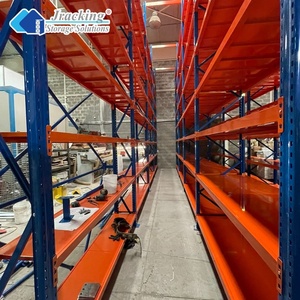

Jracking Industrial Warehouse Racks Shelves EU Standard Pallet Rack System for Cold Room
Certified for low-temperature durability down to -30°C. Engineered with cryogenic-grade Q235B steel and thermal-expansion joints to prevent brittle fractures in frozen storage.
2800KG 5 Levels High Bay Industrial Pallet Racking Heavy Duty Warehouse Rack System
Heavy structural load resistance supporting 2,800 kg per beam level. Vertical clear heights reaching over 12 meters with reinforced seismic upright framing.

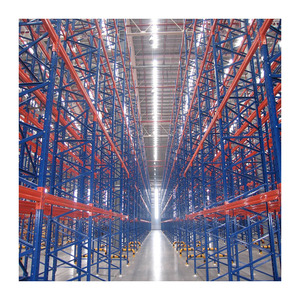

Mracking Heavy Duty Industrial Palletized Racking With A Capacity Of 1000-4000kg Industrial Storage Racking
Ultra-rigid box-beam profile paired with 75mm pitch connection claw pins. Optimized for high-throughput distribution hubs and multi-tier picking facilities.
Industrial Heavy Duty Adjustable Pallet Racks with Cold Rolled Steel Powder Coated Custom Racking Layout for Overseas Warehouse
Pre-treated with pickling and phosphating before electrostatic dry powder thermosetting coating. Engineered specifically for containerized export delivery.

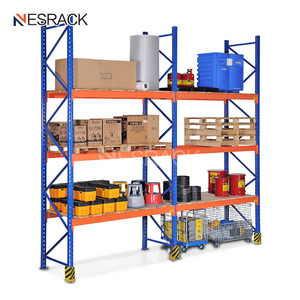

High Quality Discounted Price Heavy Duty Rack System Warehouse Storage Pallet Warehouse Racking For Goods Storage
Factory-direct structural value providing high load reliability at competitive bulk prices. Standardized modules allow rapid deployment for factory warehousing.

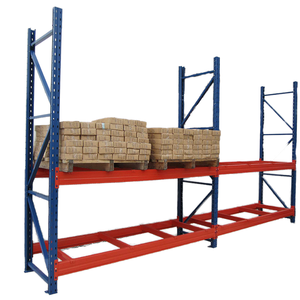

China Factory Direct Heavy-Duty Adjustable Steel Pallet Racking System Industrial Warehouse Selective Pallet Storage Shelves
100% pallet accessibility for dynamic inventory turn rates. Universal teardrop and omega slot profiles compatible with standard counterbalance and reach trucks.

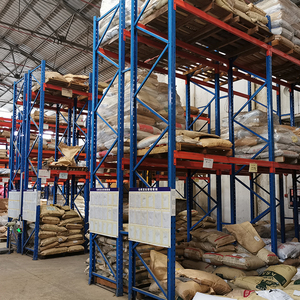

Pallet Warehouse Storage Steel Pallet Racking Heavy Duty Selective Pallet Racking System Double Deep Beam
Compact storage configurations storing pallets two positions deep, increasing warehouse volumetric storage density by up to 30% compared with single selective layouts.

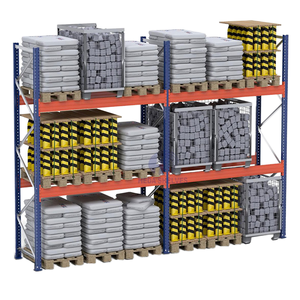

Peterack PT-HD Heavy Duty Corrosion Protected Cold Rolled Steel Selective Pallet Rack Galvanized Powder Coated Finish for
Engineered for extreme coastal, chemical, or outdoor humidity conditions. Dual-treated with hot-dip galvanization and electro-powder coat for long-term corrosion resistance.
World-Class Steel Processing Infrastructure & Technical Capabilities
Since 2001, Guangzhou Heda Shelves Co., Ltd. has stood at the forefront of China's heavy-duty logistics equipment manufacturing, translating advanced metallurgical standards and precision automated roll-forming into high-reliability warehousing assets.
As global supply chains shift toward automated fulfillment and denser footprint utilization, sourcing from verified tier-one Chinese manufacturers offers a strategic balance of cost efficiency, engineering rigor, and production volume. Guangzhou Heda Shelves Co., Ltd. controls every step in-house: from certified hot/cold-rolled raw coil inspection through automated multi-punching, precision roll-forming, robotic robotic welding, chemical immersion passivation, to multi-stage electrostatic polyester powder coating.
Our manufacturing plant maintains official third-party audit credentials, including CE Certification (Registration No. 2435-CPR-8605159) for structural steel racking assemblies under European CPR standards, ISO 9001:2015 Quality Management Certification (Reg. No. 18624Q00169R0M), and environmental compliance with RoHS frameworks. Every production lot undergoes yield tensile testing, beam connector deflection validation under 150% overload, and dry-film cross-hatch adhesion testing (ASTM D3359) before leaving the factory.
Warehouse Pallet & Racking System Architectural Comparison
Procurement directors and warehouse operations engineers must evaluate structural choices based on unit picking velocity, pallet density, capital expense per storage position, and equipment clearance parameters.
| Racking System Type | Direct Pallet Accessibility | Volumetric Storage Density | Inventory Rotation | Optimal Floor Load Factor | Primary Industrial Use Case |
|---|---|---|---|---|---|
| Standard Selective Pallet Racking | 100% Direct Access | FIFO / LIFO Dynamic | Standard Slab (30-50 kN/m²) | High-SKU 3PLs, E-Commerce, Retail FMCG | |
| Double Deep Pallet Racking | 50% Direct Access | LIFO Priority | Reinforced Slab (40-60 kN/m²) | Homogeneous Stock, Cold Storage Buffers | |
| Drive-In / Drive-Through Racking | Lane/Level Selective | LIFO (Drive-In) / FIFO | Heavy Concrete (50-70 kN/m²) | Seasonal Agri-Commodities, Beverages, Paper | |
| Radio Shuttle Automation Racking | Lane Independent Automated | FIFO & LIFO Agile | Precision Flatness Slab (FF 45+) | Frozen Cold Chain (-25°C), Pharmaceutical Hubs | |
| Gravity Pallet Flow Racking | Picking Face Only (Gravity Incline) | Strict FIFO Guaranteed | Structural Foundation (50-80 kN/m²) | Short Shelf-Life Dairy, Meat Processing, Breweries | |
| Heavy Duty Cantilever Racking | 100% Open Horizontal Face | Any Sequence Pick | Point Load Engineered (Up to 3T/Arm) | Structural Steel Beams, PVC Piping, Lumber Yards |
Metallurgical Standards and Cold-Formed Steel Section Modulus
Structural safety in modern racking systems begins at the coil uncoiling phase. Industrial racking manufactured by HEDA utilizes high-ductility, continuous-cast structural carbon steels, primarily grade Q235B (yield strength ≥ 235 MPa, tensile strength 370-500 MPa) and high-strength Q355B (yield strength ≥ 355 MPa) for tall automated high bays. The cold-roll forming lines impart precise residual compressive stresses along outer bend radii, significantly enhancing the section modulus without unnecessary dead load.
Upright profiles employ an engineered closed or 12-bend open Omega shape with strategically calculated diamond or teardrop punching at 50mm or 75mm increments. By maintaining tight hole-pitch tolerances (±0.2mm), connector claws engage cleanly without micro-gaps. This design reduces sway deflections under dynamic forklift loading, and meets or exceeds European standard EN 15512 and FEM 10.2.02 deflection criteria (typically limited to span/200 under design working loads).
Future Procurement Trends for Pallets and Racking (2025–2030)
Procurement directors are shifting from transactional spot buying to total-cost-of-ownership (TCO) frameworks. These four strategic shifts are redefining global racking purchases:
1. Automated AS/RS Integration
Pallet racking systems are increasingly designed to interface with Automated Storage and Retrieval Systems (AS/RS), automated guided vehicles (AGVs), and autonomous mobile robots (AMRs). Tolerances have tightened to sub-millimeter accuracy to prevent shuttle jamming in 30-meter high-bay automated racking structures.
2. Green Steel & Eco Coatings
Global buyers are requiring lower embodied-carbon footprints in their supply chain assets. Chinese mills and manufacturers are adopting scrap-based electric arc furnace (EAF) steel, chrome-free zirconium conversion pre-treatments, and lead-free thermosetting polyester powders with zero VOC emissions during curing.
3. Seismic Performance Modeling
Purchasers are moving beyond prescriptive static calculations toward dynamic non-linear finite element analysis (FEA). This shift ensures racking stability in seismic zones 3 and 4, modeling upright baseplate deformation, soil-structure interaction, and live pallet displacement during earth tremors.
Supply Chain Logistics Optimization: Maximizing 40HQ Ocean Cube Utilization
Export freight rates require efficient sea container stowage. HEDA designs structural components specifically for international shipping. Upright frames can be delivered pre-bolted or knocked-down (KD). Knocked-down shipping allows unbolted columns, horizontal braces, and diagonal struts to bundle tightly together. This configuration enables a single 40ft High Cube (40HQ) container to hold 24 to 26 metric tons of racking, reducing freight costs per pallet position by 35% compared to fully-welded assemblies.
Every containerized shipment includes stamped component tags, plastic-wrapped profile bundles, custom-notched wooden dunnage, edge-protection angles, and complete container stuffing reports. These measures protect electrostatic powder finishes and galvanized surfaces during ocean transit across humid tropical routes.
10-Stage Precision Manufacturing & Passivation Process
How raw coiled steel is transformed into certified, high-strength industrial racking components within Guangzhou Heda Shelves' 30,000 m² smart factory facility.
Raw Coil Inspection
Spectrometric verification of chemical composition and ultrasonic flaw testing on Q235B/Q355B coils.
Precision Slitting
High-speed rotary longitudinal slitting to exact strip widths with edge-burr tolerances within ±0.05mm.
Automated CNC Punching
Continuous, synchronized mechanical multi-punching lines creating consistent 50mm/75mm upright pitches.
Multi-Pass Roll Forming
Gradual 18 to 24 station cold-roll forming to create uniform Omega columns and interlocked box beams.
Laser Flying Cut-to-Length
Automated on-the-fly cutting systems providing accurate beam and column lengths within ±1.0mm tolerances.
Robotic Claw Welding
Multi-axis robotic GMAW welding stations joining beam end connectors with consistent, deep-penetration weld beads.
Degreasing & Derusting
Multi-tank chemical immersion baths that strip mill oils, scale, and surface contaminants from shaped steel.
Phosphating Pre-Treatment
Dense zinc-iron phosphate micro-crystalline conversion coating to prevent rust and improve powder coat adhesion.
Electrostatic Powder Curing
Automated powder spray tunnels with 200°C convection ovens curing resin coats to 60-80 microns thickness.
QC Load Test & Packing
Batch deflection sampling, mill certification documentation, and moisture-barrier protective export bundling.
Technical, Structural, and Commercial Answers for Buyers
Essential technical guidance addressing load calculations, floor slab engineering, international compliance, and import logistics from China.
Q1 How are pallet rack beam capacities verified according to international standards?
Racking beam capacities are calculated under EN 15512 and RMI specifications using limit-state structural design principles. Beams must support a uniformly distributed load (UDL) with a minimum safety factor of 1.5 against yield failure. Vertical deflection under full working load must not exceed L/200 (where L is the clear span distance between uprights). At HEDA, each batch of beam end connectors is subjected to destructive shear-load and moment-connection stiffness testing to calculate true rotational spring stiffness for structural modeling.
Q2 What concrete floor slab parameters are required before installing heavy-duty pallet racks?
Industrial racking loads are transferred as point loads through baseplates to the concrete slab. Typically, warehouses require a reinforced concrete slab at least 150mm to 250mm thick with a minimum compressive strength of C20/25 to C30/37 (3,000–4,500 PSI). Slabs should be level within DIN 18202 or ASTM E1155 (FF/FL numbers) criteria to prevent vertical plumb deviations. If your facility has unknown slab specs, our structural engineers can calculate enlarged footplate footprints to distribute point loads safely.
Q3 What is the functional difference between hot-dip galvanized and powder-coated finishes?
Thermosetting polyester powder coating (60–80 µm) provides cost-effective, impact-resistant protection suitable for dry indoor ambient warehouses (5°C to 40°C). In contrast, Hot-Dip Galvanizing (HDG) metallurgically bonds a zinc layer (exceeding 60–100 µm) to the steel substrate under 450°C molten zinc bath immersion. HDG is recommended for open-air yards, sub-zero cold stores with condensing moisture, coastal ports with salt-spray exposure, and corrosive chemical storage facilities.
Q4 How does HEDA support custom CAD layout engineering and seismic calculations?
Our in-house engineering team provides free architectural CAD drawings and 3D space-utilization models within 24 hours of receiving site plans. For projects in earthquake-prone regions (such as the Pacific Rim or South Asia), we integrate site-specific spectral acceleration data (Ss, S1) into dynamic structural software. We calculate frame bracing geometry, baseplate thicknesses (10mm to 20mm), and wedge anchor embedment depths to ensure life safety under seismic conditions.
Q5 How does container shipping work, and what documentation is provided for customs clearance?
We export through major South China maritime hubs, including Guangzhou (Nansha) and Shenzhen (Yantian/Shekou), shipping on FOB, CIF, or DDU/DDP terms worldwide. Every order includes a complete shipping dossier: Commercial Invoice, Packing List with itemized bundle weights, Bill of Lading, Certificate of Origin (Form E, Form F, or CO), mill test certificates (EN 10204 Type 3.1), CE declarations of performance, and illustrated bolt-assembly manuals.
Q6 Can local installation teams easily assemble your exported racking systems?
Yes. Upright frames are delivered with hole configurations and color-coded structural bracing for straightforward bolting on site. Beams feature hook-in claw connectors with spring-steel safety locks that drop into position without specialized welding. Shipments include detailed CAD assembly diagrams, component tag matrices, bolt torque specifications (typically 8.8 grade M10/M12 fasteners), and video installation walk-throughs.
Request Your Free Warehouse CAD Design & Direct Factory Quotation
Partner directly with Guangzhou Heda Shelves Co., Ltd. Send us your warehouse floor plan, ceiling heights, forklift models, and pallet specifications. Our engineers will return a complete 2D/3D layout, pallet capacity estimate, and freight-optimized quote within 24 hours.
