Heavy-Duty Warehouse Shelving & Industrial Storage Solutions
Direct factory production with precision CNC cold-roll-forming profiles, high-strength Q235B/Q355 structural steel grades, and customizable unit load configurations engineered for high-density global operations.

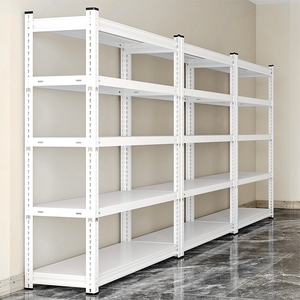

Heavy Duty Steel Storage Rack Adjustable Metal Shelving Warehouse Pallet Racking Corrosion Resistant Industrial Shelves
- Capacity: 1,000–4,500 kg / beam tier
- Steel: High-yield cold-rolled Q235B
- Pitch: 50mm / 75mm adjustable increments
Industrial Warehouse Shelving Rack Heavy Duty Steel Storage Shelves for Palletized Inventory
- Format: Single / Double deep pallet bays
- Upright: 80/90/100/120mm custom box-rib
- Safety: Spring lock beam retainers included
Heavy Duty Shelving Pallet Rack For Storage
- Selectivity: 100% direct access to every SKU
- Deflection: Tight engineered limits ≤ L/200
- Decking: Steel sheet or galvanized wire mesh
Mracking Durable Warehouse Supermarket Heavy-duty Shelving Equipment Retail Store Display Racks Customized 1000-5000kg Per Layer
- Application: Cash & carry, retail bulk clubs
- Reinforcement: Welded bottom channel stiffeners
- Finish: Dual-layer epoxy powder coat
Factory Steel Warehouse Gravity Carton Pallet Flow Roller Sliding Rack
- Flow: Pure FIFO continuous gravity roll track
- Rollers: Impact-resistant nylon/galvanized steel
- Speed Control: Centrifugal brake assemblies

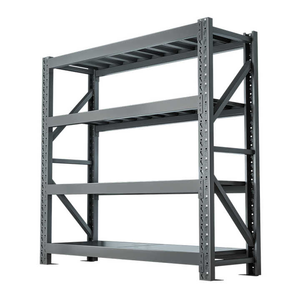

Low Price 200KG 4-Tier Black Detachable Steel Storage Light Duty Rack Shelf for Warehouse Living Room Balcony & Kitchen Home Use
- Capacity: 200 kg uniform distributed per tier
- Assembly: Quick 10-minute snap-in teardrop lock
- Packaging: Flat-pack mail-order export carton
304 Stainless Steel Built in Dish Racks Drying Rack Display Racks for Kitchen
- Material: Certified AISI 304 food-grade stainless
- Resistance: Zero rust in 100% relative humidity
- Workmanship: Electro-polished sanitary welds
Adjustable High-Speed Storage Racks Shelving Systems Pallet Car Auto Shuttle Racking System For Warehouse
- Automation: Semi-automated radio shuttle bot
- Density: Up to 90% space volumetric utilization
- Cold Compatibility: Operational to -30°C
Direct Factory Engineering from Guangzhou Heda Shelves Co., Ltd.
Since its founding in 2001, Guangzhou Heda Shelves Co., Ltd. has stood at the global forefront of heavy-duty industrial storage rack production. Operating an expansive 30,000 square meter modernized manufacturing complex powered by more than 300 experienced fabrication specialists and structural engineers, we bridge the gap between heavy structural metallurgy and precision warehouse optimization.
Our end-to-end production process is certified to internationally audited quality benchmarks, maintaining active CE Certification (Registration No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management compliance (Registration No. 18624Q00169R0M, valid through June 2027), along with strict RoHS environmental compliance for all surface coatings.
Precision Fabrication Specifications for Bulk Steel Racking
Industrial bulk storage performance depends on the interaction between cold-formed strip metallurgy, connection mechanical moments, and protective pre-treatments under harsh climatic cycles.
Certified Cold-Rolled Q235B / Q355
We source high-grade strip steel with minimum yield strengths of 235 MPa and 355 MPa. Guaranteed chemical composition controls silicon, sulfur, and phosphorus down to minimal trace levels, preventing micro-fractures along cold-bent profile corners.
Automated CNC Column Punching
Uprights are perforated using high-tonnage automated CNC punch presses to guarantee an exact 50mm or 75mm hole pitch pitch tolerance (within ±0.1mm). This ensures fast beam connection engagement and uniform distributed load transfer across vertical posts.
12-Stage Chemical Pretreatment
Every component undergoes immersion through a 12-tank degreasing, acid pickling, rinsing, and zinc-phosphating sequence. This crystalline conversion layer provides unmatched mechanical powder adhesion and prevents subterranean rust creep under monsoon humidity.
Robotic Welding & C-Profile Beams
Dual interlocking C-sections are automatically continuous seam-welded to form high-rigidity box beams. Heavy connector claw brackets feature 3 to 5 engagement lugs with precision robotic GMAW fillet welds, verified by regular non-destructive tensile break tests.
Heavy Industrial Bulk Racking Systems: Engineering Selection Matrix
Compare core mechanical specifications, SKU selectivity, pallet density, and floor area consumption rates to identify the optimal configuration for your distribution center footprint.
| System Classification | Direct Access Ratio | Volumetric Density | Typical Payload Rating | Inventory Rotation | Ideal Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | Moderate (40–45%) | 1,000–4,500 kg / level | FIFO / Random SKU | 3PL hubs, retail fulfillment centers, general machinery |
| Drive-In / Drive-Through | Lane-Indexed (LIFO) | High (70–75%) | 1,000–2,000 kg / pallet | LIFO (FIFO with Drive-Thru) | Cold storage facilities, beverage bottling, seasonal batch produce |
| Radio Shuttle Automation | Semi-Automated Lane | Maximum (80–88%) | 500–1,800 kg / pallet | Programmable FIFO / LIFO | Deep freeze food chains, dairy distribution, high-turnover FMCG |
| Pallet Gravity Flow | Face-Indexed Picking | High (75–80%) | 800–1,500 kg / lane pos | Strict Gravity FIFO | Pharmaceuticals, perishables, fast-moving consumer packaged goods |
| Push-Back Carts | 2–6 Deep Face | Medium-High (65–70%) | 1,000–1,500 kg / nest | LIFO Accumulation | Buffer staging, medium SKU volume, standard counterbalance truck |
| Heavy-Duty Cantilever | Open Front Clear | Specialized Length | 1,000–3,000 kg / arm | Any Profile Placement | Steel tubing, extrusion bars, structural lumber, PVC piping |
| Multi-Tier Mezzanine | 100% Multi-Floor | Double / Triple Area | 300–1,000 kg / m² | Manual & Cart Access | E-commerce bin sorting, auto spare parts, garment fulfillment |
Key Trends Transforming Global Industrial Racking Sourcing
Corporate supply chain directors and warehouse designers are adapting procurement strategies to mitigate rising building costs, land constraints, and international freight realities.
1. High-Cube Verticalization
Surging industrial real estate lease prices across North America, Europe, and Asia have pushed clear warehouse ceiling heights from 8–9 meters up to 14–18 meters. Buyers are shifting toward Very Narrow Aisle (VNA) and automated rack-supported building structures to capture vertical volume rather than square footage.
2. Automation-Ready Hybrid Infrastructure
Warehouses are no longer designed solely for human-operated forklifts. Modern bulk shelving procurement requires precise compatibility with Autonomous Mobile Robots (AMRs), automated guided vehicles (AGVs), and battery-operated radio shuttle carts running along CNC cold-formed steel rails.
3. Climate-Resilient Finish Protocols
Extreme moisture exposure in coastal ports, heavy monsoon zones, and sub-zero cold-storage chain hubs has made standard paint obsolete. Enterprise buyers now mandate advanced pre-galvanization, hot-dip zinc immersion (80+ microns), or multi-layer epoxy powder coatings capable of surviving 1,000+ salt spray hours.
4. Optimized Container Nesting Logistics
With ocean container freight representing a significant portion of landed equipment cost, leading Chinese exporters design beam profiles, upright frames, and footplates to nest tightly. This packing optimization packs up to 26–28 metric tons inside a standard 40-foot High Cube container without void waste.
Next-Generation Engineering in Heavy Steel Racking Systems
From micro-alloy metallurgy to real-time structural health monitoring, technological innovation is turning passive steel frameworks into active, intelligent warehouse assets.
Micro-Alloy High-Yield Steels
The introduction of micro-alloy elements like Vanadium, Niobium, and Titanium into hot-rolled coil strip steel yields exceptional tensile properties while shaving up to 14% off dead-weight. This metallurgy preserves deflection tolerances (under FEM 10.2.02 and RMI standards) while improving earthquake resistance through heightened ductility.
IoT Structural Deflection & Impact Monitoring
Heavy forklift impacts remain the leading cause of catastrophic warehouse rack collapse. Emerging high-tier installations now integrate wireless triaxial accelerometers and strain gauges directly into critical upright base plates and primary load-bearing horizontal beams. These deliver automated overload alerts straight to warehouse management systems.
Modular Reconfiguration & Boltless Kinematics
Modern logistics facilities face dynamic tenant shifts and rapid product turnover. Future-proof rack design emphasizes boltless beam-to-frame connector locks, integrated quick-release safety pins, and universal connection geometry. Warehouses can rapidly convert standard pallet bays into carton live flow or multi-level order picking platforms overnight.
Frequently Asked Questions for Bulk Racking Importers
Detailed answers covering international freight containerization, seismic compliance calculations, metallurgy verification, and on-site assembly execution.
How do you verify structural steel compliance and mill test certificates?
What structural safety factors are applied to beam deflection and frame capacity?
How is sea container loading managed to prevent shipping damage and rust?
Can your engineering team calculate custom baseplates for local seismic codes?
What specific documentation do you require to generate a free CAD layout?
Do you offer on-site installation guidance or video support for local contractors?
Plan Your Warehouse Storage Layout with HEDA Engineers
Cut out middleman trading markups and work direct with China's premier racking manufacturer. Get certified structural calculations, custom color powder coating, and precision-optimized container logistics delivered straight to your port of entry.
