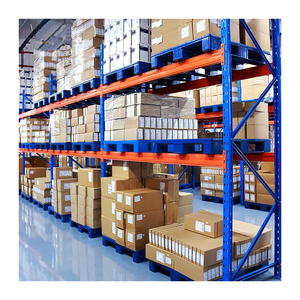

HUAWU 5 Ton Heavy Duty Selective Pallet Rack
Built from structural Q235 cold-rolled steel, offering 5,000 kg capacity per level for tooling lines, heavy stamping operations, and raw inventory.
Get a Quote
Factory Equipment Showcase
High-Performance Industrial Storage Racks
Engineered specifically to solve industrial bottlenecks, manage multi-ton payload densities, and guarantee uninterrupted workflow. Select your project profile below.
Standard Teardrop Selective Pallet Rack
Universal boltless teardrop design ensuring tool-free beam reconfiguration, rapid bay expansion, and broad compatibility across dynamic factory spaces.
Get a Quote
Industrial Metal Heavy-Duty Shelving Racks
Engineered for material handling stations, sub-assembly buffers, and tool rooms handling both bulk pallets and high-density manual stock picks.
Get a Quote
Factory Direct Heavy-Duty Steel Storage Rack
Factory-direct structural uprights reinforced with cross-diagonal bracing, designed specifically for heavy equipment spares and high-bay plants.
Get a Quote
Adjustable Slotted Angle Steel Rack
Modular light-to-medium slotted angle frames designed for assembly-line kitting, maintenance bays, workshop hardware storage, and line-side stock.
Get a Quote
Reinforced Steel Pallet Racking & Stacking Units
Maximum load-bearing framework featuring deep-formed box beams, anti-dislodgement locking pins, and complete floor anchorage protection.
Get a Quote
FIFO Gravity Flow & Roller Track Racking
Inclined heavy-duty roller lanes utilizing natural gravity for flawless First-In, First-Out throughput in food processing, FMCG, and automotive assembly lines.
Get a Quote
Anti-Corrosive Powder-Coated Pallet Rack
Treated with multi-stage pickling, phosphating, and electrostatic epoxy curing to resist high-humidity, marine, and chemical plant environments.
Get a Quote
Factory Footprint & Verification
Guangzhou HEDA Shelves: Enterprise Strengths
Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered turnkey intralogistics engineering, fully verified manufacturing capacity, and certified structural steel infrastructure globally.
2001
Year Founded
30,000 m²
Production Base
30,000 T
Monthly Steel Output
10,000+
Global Installations
CE & ISO Quality Control
Production operates under ISO 9001:2015 (Cert No. 18624Q00169R0M) and CE Certification No. 2435-CPR-8605159, with 100% full-weld penetration testing and strict RoHS compliance.
Turnkey CAD & 3D Modeling
Our in-house design engineering department drafts free layout schematics, FEM/ANSI seismic calculations, and 3D visual renderings within 24 hours of receiving site blueprints.
Automated Roll-Forming
Equipped with 10 continuous cold-roll forming lines, high-precision automated CNC column punch presses, and multi-axis welding robots to maintain sub-millimeter manufacturing tolerances.
Global Export & Engineering
Regular containerized exports across South Asia, the Middle East, Europe, and the Americas. Packed with precision nested profiles for maximum container space utilization and lowest landed cost.
Procurement Whitepaper
Procurement Trends Shaping Industrial Racks
Modern manufacturing logistics has shifted permanently from static holding areas toward intelligent, high-density velocity centers. Discover key trends guiding global procurement.
1. Cubic Density Over Footprint
Skyrocketing industrial real estate prices and zoning limitations have made vertical volumetric utilization essential. Procurement teams are moving away from wide-aisle selective racking in favor of Very Narrow Aisle (VNA), drive-in, and double-deep racking setups that capture up to 85% of building envelope height.
2. AGV & AMR Automation Compatibility
As automated guided vehicles and mobile robots replace conventional counterbalanced forklifts, rack procurement mandates ultra-tight deflection tolerances, ground-level guide tracks, floor-level optical clearance, and precision floor flatness matching DIN 18202 standards for automated docking.
3. Environmental Resilience & Pretreatment
Industrial procurement specifications increasingly demand sustainable anti-corrosion protection. Phosphating and multi-stage silane pretreatments followed by zero-VOC thermosetting powder coatings protect structural uprights against battery acid vapor, tropical humidity, and aggressive coastal air.
Future Horizon
Technological Trajectories in Industrial Storage
Industrial storage engineering is evolving from passive steel arrays into data-connected, structurally adaptive material management nodes.
Smart Telemetry & Impact Monitoring
Next-generation rack uprights integrate wireless IoT vibration and tilt sensors that log vehicle collisions in real time, notifying facility safety managers before localized steel deformation causes catastrophic frame progressive collapse.
Automated Shuttle (AS/RS) Evolution
Semi-automated radio shuttles are transitioning to fully autonomous multi-directional 4D robotic shuttles capable of vertical and horizontal aisle transfers, eliminating internal vehicle pathways completely and maximizing space utilization.
Optimized Micro-Alloy Steel Metallurgy
Continuous roll-forming technology uses high-yield micro-alloyed structural steels (such as high-grade Q355B and high-tensile cold-rolled variants). This produces upright sections with up to 25% lower deadweight while maintaining superior load safety factors.
Decision Matrix
Industrial Racking System Engineering Matrix
Compare mechanical access characteristics, storage volumetric efficiency, and operational criteria to select the optimal racking configuration for your manufacturing workflow.
| Racking System | Direct Selectivity | Storage Density | Inventory Logic | Ideal Industrial Payload Application |
|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | Moderate (40-50%) | FIFO / LIFO | Multi-SKU components, spare parts distribution, fast changeover lines |
| Drive-In Racking | Lane Dedicated | Very High (75-85%) | LIFO | Bulk raw materials, cold storage staging, seasonal packaging stock |
| Gravity Flow Racking | Face Access Only | High (70-80%) | Strict FIFO | Food & beverage buffers, pharma manufacturing, perishable feedstocks |
| Radio Shuttle System | Automated Lane | Maximum (80-90%) | FIFO or LIFO | High-throughput production lines, cold-chain plants, automated staging |
| Cantilever Racking | 100% Open Front | Custom Linear | Random Access | Structural steel beams, extrusions, timber packs, PVC piping bundles |
Buyer Knowledge Base
Industrial Storage Racks: Procurement FAQ
Direct answers to core technical, structural, and logistical questions encountered by industrial procurement directors, warehouse engineers, and plant operators.
Q1 How are beam and frame load capacities calculated safely?
Capacities are calculated based on uniformly distributed loads (UDL) in accordance with ANSI MH16.1 or EN 15512 codes. The rated beam capacity corresponds to two beams per shelf pair, while upright frame calculations account for unsupported vertical height between beam levels, seismic lateral forces, and slab compressive resistance.
Q2 What concrete floor slab specifications are needed for heavy racks?
Heavy-duty industrial racking typically requires reinforced concrete slabs with a minimum thickness of 150 mm to 250 mm and compressive strengths of C20/25 to C30/37 (3,000 to 4,500 PSI). Before anchoring, HEDA engineers evaluate your core slab data to verify point-load punch resistance and prevent slab failure.
Q3 How does finish choice affect humid, coastal, or chemical environments?
Standard indoor warehousing uses electrostatic polyester powder coating cured at 180°C. However, for industrial settings exposed to chemical washdowns, extreme humidity, or sub-zero cold stores, hot-dip galvanization (HDG) or multi-stage epoxy-zinc primers are specified to resist oxidation and rust degradation.
Q4 What are the differences between roll-formed and structural steel racks?
Roll-formed racking uses coiled sheet steel formed into profiles with punched teardrop or slotted holes, offering lower cost, fast height adjustability, and rapid installation. Structural steel racking uses hot-rolled C-channels and I-beams, delivering high impact resistance in harsh, high-turnover industrial environments.
Q5 What crucial input data is required to request a free engineering layout?
Provide an architectural CAD or PDF drawing showing building perimeter, clear height under roof joists, floor obstacles, building column grid centers, pallet dimensions (W × D × H including cargo), total pallet weight, forklift turning radius/mast lift height, and your operational temperature profile.
Q6 How are international overseas shipments packed to prevent damage?
Upright frames and long box beams are bundled in heavy-duty corrugated wraps, corrugated edge protectors, and strapped with high-tensile polyester bands on timber skids. Secondary components and small hardware are packaged in labeled wooden crates to facilitate systematic unloading and local installation.
Optimize Your Factory Storage Density Today
Connect directly with Guangzhou Heda Shelves Co., Ltd.'s senior application engineers. Receive an optimized 3D warehouse layout, FEM-verified structural calculations, and a comprehensive factory-direct quotation within 24 hours.
