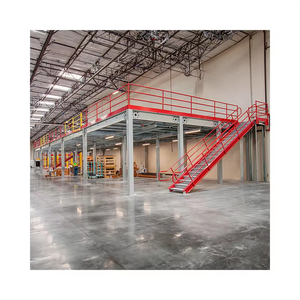

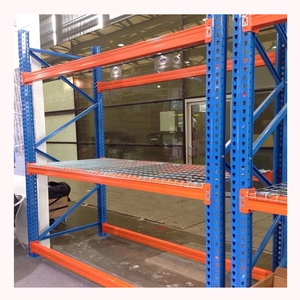

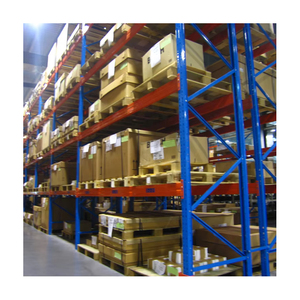

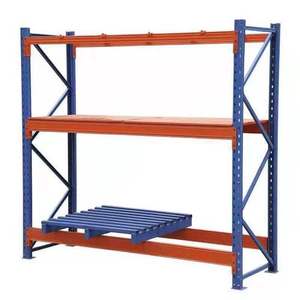

Featured Heavy-Duty Warehouse Storage Systems
High-density dynamic racking, structural mezzanines, and adjustable high-bay storage engineered to EN 15512, RMI, and ISO 9001:2015 specifications.
The Engineering Dynamics of Roller Pallet Flow Systems
Roller pallet racking—universally referred to as Gravity Flow Racking, Live Pallet Storage, or Dynamic Flow Bed Racking—operates on the strict principle of kinetic gravity conveyance down a calibrated incline.
Incline Gradient Calibration
Dynamic flow tracks require an accurate slope angle between 3.0% and 4.2% (typically a 1:25 to 1:30 ratio). Insufficient pitch produces static deadstops for uneven wooden pallets, whereas excessive slope induces uncontrolled acceleration and structural impact force at the picking face.
Centrifugal Brake Rollers
To govern pallet momentum across deep storage channels (up to 20 pallets deep), speed-controller brake rollers are strategically integrated every 1.5 to 2.0 meters. Internal planetary gearboxes and viscous fluid braking regulate pallet travel speed to a consistent 0.25 to 0.30 m/sec.
Mechanical Pallet Separators
Accumulated hydrostatic line pressure in deep lanes can reach thousands of kilograms, jamming the front pallet against unloading forks. Patented time-delay mechanical separators lock rear pallets until the frontmost pallet is lifted 20mm clear of the discharge face.
Top 10 Roller Pallet Racking Manufacturers & Exporters
A balanced evaluation of the world's premier roller racking producers based on manufacturing scale, cold-rolled structural engineering, international compliance, and export logistics.
| Manufacturer | HQ / Manufacturing | Steel Grade & Norms | Speed Control Tech | Max Lane Depth | Global Export Scope |
|---|---|---|---|---|---|
|
Guangzhou Heda Shelves
Verified Benchmark
|
Guangzhou, China (30,000m² Plant) | High-Grade Q235B / Q355B (CE, ISO 9001) | Centrifugal Gearbox & Viscous Dampers | Up to 24 Pallets Deep | 120+ Countries (Major Ports Global) |
| Bito-Lagertechnik Bittmann | Meisenheim, Germany | European EN 15512 (DIN Standard) | Integrated Planetary Retarders | Up to 20 Pallets Deep | Europe, MEA, North America |
| Interroll Group | Sant'Antonino, Switzerland | Swiss Mechanical Precision (FEM) | Patented Magnetic Eddy-Current Rollers | Up to 30 Pallets Deep | Global Automation Integrators |
| Mecalux S.A. | Barcelona, Spain | EN 1993 Eurocodes & RMI Standard | Mechanical Friction & Brake Bands | Up to 25 Pallets Deep | Worldwide (Direct Branches) |
| SSI Schaefer | Neunkirchen, Germany | Heavy Cold-Rolled Industrial Steel | Heavy-Duty Centrifugal Brake Rollers | Up to 22 Pallets Deep | Worldwide (Turnkey EPC) |
| Dexion (Constructor Group) | Castrup, Germany / Norway | High-Tensile Cold-Formed Steel | External Calibrated Speed Controllers | Up to 18 Pallets Deep | EMEA, Asia-Pacific, Americas |
| Stow Group (Averys) | Dottignies, Belgium | EN 15512 / ISO 3834 Structural Steel | In-Rail Internal Brake Rollers | Up to 20 Pallets Deep | Global Logistics Centers |
| Advance Storage Products | California, USA | RMI MH16.1 American Structural Steel | Heavy-Duty Impact Resistant Rollers | Up to 16 Pallets Deep | North & South America |
| Nedcon B.V. | Doetinchem, Netherlands | Custom European Cold-Formed Profiles | Integrated Modular Retarders | Up to 20 Pallets Deep | Europe & International Projects |
| Jungheinrich AG | Hamburg, Germany | VDI Standards & EN Directives | Electromechanical & Gravity Hybrid | Up to 22 Pallets Deep | Worldwide Direct Intralogistics |
1. Guangzhou Heda Shelves Co., Ltd.
Guangzhou, South China • Founded 2001Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative global manufacturer and exporter of heavy-duty pallet racking and gravity flow systems. Operating from a modern 30,000 square meter production complex, HEDA controls the entire engineering lifecycle—from precision slitting of prime Q235B/Q355B high-tensile coil steel to computer-controlled continuous roll-forming, automatic 50-ton hydraulic punching, robotic welding, 9-stage phosphating pretreatment, and dual-cure electrostatic powder coating.
- Monthly Capacity: 30,000 Metric Tons factory output
- Certifications: CE (2435-CPR-8605159), ISO 9001:2015, RoHS
- Engineering Core: Free CAD/BIM layouts, FEA structural calculation
- Export Reach: 120+ countries (Direct container shipping via major South China hubs to Nhava Sheva, Mundra, Chattogram, Colombo, Karachi, Rotterdam, Los Angeles)
- Application Scope: Ambient, deep freeze (-30°C cold storage), chemical, FMCG
2. Bito-Lagertechnik Bittmann GmbH
Meisenheim, Germany • Founded 1845Renowned throughout Central Europe for precision engineering, Bito manufactures high-density live pallet storage systems designed under stringent DIN and EN standards. Their modular roller track cassettes feature integrated end-stops, pre-configured brake roller intervals, and ergonomically engineered entry guides designed for smooth fork truck engagement.
- Key Strength: Precision engineered modular roller tracks
- Applicable Pallets: Euro pallets (1200x800mm), Industrial (1200x1000mm)
- Design Focus: Maximum picking ergonomics and zero maintenance design
3. Interroll Group
Sant'Antonino, Switzerland • Founded 1959Interroll is the global pioneer in dynamic flow components, supplying patented magnetic speed controller rollers (MSC 50) and wear-free eddy current retarders to systems integrators worldwide. Rather than full turnkey structural racks, Interroll excels at producing high-end gravity roller beds and mechanical separators with unmatched operational longevity.
- Proprietary Tech: Magnetic eddy-current braking rollers
- Safety Innovation: Wear-free contact-free deceleration
- Integration: Component partner to racking fabricators worldwide
4. Mecalux S.A.
Barcelona, Spain • Founded 1966Mecalux is an international warehousing titan providing structural steel gravity pallet flow systems across Europe and the Americas. Their systems integrate seamlessly with Easy WMS warehouse management software, featuring dual-roller or triple-roller track beds suited for both FIFO perishable logistics and LIFO push-back gravity lanes.
- Production Hubs: 11 production plants across Europe and the Americas
- Structural Design: Heavy cold-formed steel frames with high section moduli
- Software Integration: Native coordination with automated handling fleets
5. SSI Schaefer
Neunkirchen, Germany • Founded 1937A premier provider of intralogistics systems, SSI Schaefer designs heavy-duty live pallet racking systems for high-throughput fulfillment centers and cold chain terminals. Their solutions feature robust split-roller track beds, heavy impact-protection barriers at the loading face, and redundant centrifugal speed governors.
- Target Segments: High-throughput automated distribution mega-hubs
- Reliability: Heavy-gauge galvanized uprights and box beams
- Global Reach: Extensive EPC branch network across 70+ countries
6. Dexion (Constructor Group)
Oslo, Norway / Castrup, Germany • Founded 1937Inventors of the slotted angle system, Dexion delivers high-density pallet flow installations engineered to the latest EN 15512 code. Their live storage beds are engineered with heavy-duty side guides, cold-store lubrication packages, and safety retention springs that protect operators during intensive picking cycles.
- Engineering Heritage: Structural beam calculations for seismic areas
- Safety Mechanism: Spring-loaded pallet impact suppressors
- Regional Focus: Pan-European industrial warehousing and cold stores
7. Stow Group
Dottignies, Belgium • Founded 1977As one of Europe's largest structural racking producers, Stow provides standard and customized live storage pallet racks. Their modular gravity bed sections drop directly into standard horizontal beams, allowing seamless conversion between static selective racking and dynamic roller lanes without welding.
- System Modularity: Retrofit drop-in roller cassettes
- Manufacturing Footprint: 9 dedicated manufacturing facilities in Europe
- Load Rating: Supports pallet unit loads up to 1,500 kg per position
8. Advance Storage Products
California, USA • Founded 1958A dominant force in the North American material handling landscape, Advance specializes in heavy-duty structural C-channel steel pushback and gravity flow systems. Their structural designs withstand aggressive forklift impacts in high-velocity beverage and grocery distribution facilities.
- Material Profile: Structural steel channel (ASTM A36 / A572)
- Impact Resistance: Resilient to high-impact forklift operations
- Standard Compliance: Strict RMI MH16.1 American national standards
9. Nedcon B.V.
Doetinchem, Netherlands • Founded 1969Nedcon operates at the pinnacle of bespoke logistics engineering, integrating complex live storage gravity flow beds within multi-tier structural steel mezzanine platforms. Their systems are tailored for pharmaceutical distribution, aerospace parts, and complex multi-SKU retail replenishment hubs.
- Engineering Speciality: Multi-tier mezzanine integrated live storage
- Tolerances: High-precision fabrication for automated interfacing
- Geographic Strength: Western Europe, Scandinavian automated hubs
10. Jungheinrich AG
Hamburg, Germany • Founded 1953Jungheinrich provides end-to-end intralogistics synergy, matching their comprehensive material handling equipment fleets (reach trucks, counterbalanced trucks, and AGVs) directly to their live storage gravity flow racking lanes. This ensures exact tolerance matching between fork mast clearances and roller entry funnels.
- Total Solution: Integrated forklift fleet, AGVs, and dynamic racks
- Quality Assurance: VDI intralogistics design and CE compliance
- Service Coverage: Extensive international field service technician network
Guangzhou Heda Shelves: Enterprise Sourcing & Export Scale
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has spent over two decades engineering and manufacturing industrial storage solutions for clients in over 120 countries. Here is why enterprise procurement directors prioritize HEDA for dynamic live storage projects.
The 10-Stage High-Precision Manufacturing Lifecycle
Every upright, beam, dynamic roller bracket, and pallet stop leaving the HEDA facility is fully traceable to verified metallurgical coils.
Prime Raw Material
Certified prime Q235B and Q355B cold-rolled steel coils with verifiable chemical analysis certificates.
Precision Slitting
High-speed CNC slitting lines trim steel ribbons to ±0.1mm width tolerances with zero edge burrs.
Automated Punching
50-ton hydraulic multi-punching tooling guarantees exact 50mm / 75mm upright pitch alignment.
Cold Roll-Forming
24-station continuous rolling mills shape complex omega profiles with exceptional torsional stiffness.
Robotic Welding
Panasonic 6-axis robotic welders ensure deep-penetration, spatter-free beam end-connector welds.
Surface Polishing
Automated shot blasting and micro-polishing eliminates scale, grease, and oxidation impurities.
Pickling & Phosphating
9-stage immersion bath pretreatment applies an anti-corrosive micro-crystalline zinc-phosphate conversion layer.

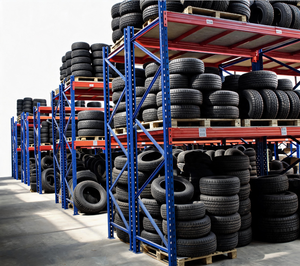

Powder Coating
Dual GEMA electrostatic guns deposit 80-120μm durable epoxy-polyester powder, oven-cured at 200°C.
Acoustic & Deflection QC
Sample batch load testing under 1.5x design capacity with laser deflection verification.
Container Packing
Automated bundle strapping and wood-dunnage cushioning maximizing 40HQ ocean freight cubing.
Engineered for Tropical Humidity, Coastal Salt, and Seismic Stability
Unlike generic catalogue distributors, HEDA Shelves engineers each project against real regional operating conditions. In humid coastal regions and monsoon-affected zones across South and Southeast Asia (including Chennai, Chattogram, Karachi, and Colombo), HEDA's automated 9-stage phosphating pretreatment guarantees powder adhesion that prevents sub-film rust creep. For low-temperature cold storage (-30°C) or open exterior sheds, fully hot-dip galvanized uprights and zinc-electroplated roller components are custom engineered.
Furthermore, our in-house structural engineering department provides free CAD layouts, 3D BIM models, and finite element analysis (FEA) conforming to regional building codes, ensuring proper floor slab anchoring and seismic cross-bracing design for facilities in high-risk zones.
Technological Innovations & Procurement Trends (2025–2030)
The live storage industry is undergoing rapid technological transformation driven by autonomous logistics fleets, cold-chain expansion, and sustainability mandates.
Sub-Zero Metallurgical Resilience
The surging demand for frozen food, biologics, and pharmaceuticals has driven the development of cold-resilient gravity flow beds. Steel rollers now feature low-viscosity fluorosilicone bearing greases functional down to -35°C, paired with impact-resistant polypropylene-coated roller barrels that eliminate condensation ice-glazing and pallet slippage.
Seamless AGV & AMR Integration
Modern live racking lanes are increasingly loaded and discharged by Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). To accommodate driverless systems, modern charge faces incorporate laser-aligned optical docking targets, dynamic self-centering guide funnels, and electro-pneumatic separator releases synchronized via fieldbus protocols.
Magnetic Eddy-Current Deceleration
Traditional mechanical brake rollers rely on internal planetary gears and friction clutches that inevitably suffer mechanical wear over time. Next-generation systems are shifting to magnetic eddy-current brake rollers. These utilize permanent neodymium magnets that induce braking force directly proportional to speed, operating without physical friction, oil reservoirs, or mechanical wear.
Modular Drop-In Retrofit Systems
With warehouse rental rates escalating globally, operators are avoiding greenfield construction. Sourcing is pivoting toward modular drop-in gravity cassettes that mount directly into existing selective or double-deep upright bays, instantly transforming dead travel aisles into high-density FIFO dynamic storage without structural welding or civil work.
Frequently Asked Questions for Roller Pallet Sourcing
Crucial engineering, maintenance, and freight considerations procurement managers should examine prior to placing dynamic racking purchase orders.
What pallet types are suitable for roller flow racking, and how is pallet deflection controlled?
Hardwood Euro pallets (1200x800mm), GMA pallets (48x40 inch), and heavy plastic pallets with perimeter skids are ideal. The bottom runners must travel parallel to the track roller axis to prevent sagging. Maximum allowable pallet deflection under full static unit load should not exceed 1/200th of the span (typically <5mm). Plastic pallets with irregular lattice bottoms require 3-rail or continuous full-width steel roller beds rather than twin-wheel tracks.
How does HEDA prevent "pallet runaways" in deep gravity flow lanes?
Pallet acceleration is physically limited through engineered centrifugal brake rollers calibrated to the specific pallet weight range (e.g., 300kg to 1200kg). Installed at regular intervals down the lane, these internal governor rollers automatically apply resistance as rotational speed increases, maintaining a controlled rolling speed of 0.25 to 0.30 m/sec regardless of total lane depth.
Why is a mechanical time-delay pallet separator mandatory for high-density FIFO lanes?
In a lane containing 10 pallets of 1,000 kg each, the cumulative gravitational line pressure acting on the first pallet can exceed 4,000 Newtons. Without a separation device, the discharge pallet becomes pinched against the front end-stop, making forklift extraction hazardous and risking structural racking damage. HEDA's mechanical separators lock the subsequent pallets 150mm behind the lead pallet until the front unit is safely lifted clear.
How are international container shipments packed to protect against transit rust and physical impact?
Every shipment from HEDA Shelves undergoes container-cubing optimization to protect components and maximize freight utilization. Upright frames and beams are bundled with steel bands over heavy corrugated protection boards, with non-marking wood dunnage preventing metal-to-metal rubbing. For ocean voyages across tropical or humid sea lanes, components are wrapped in VCI (Vapor Corrosion Inhibitor) stretch film combined with high-absorption container desiccants.
What engineering data must buyers furnish to obtain an accurate CAD layout and cost quotation?
To generate a free 24-hour CAD layout and structural load assessment, our engineering team requires: (1) Warehouse architectural drawings (CAD or PDF) with clear ceiling heights and column spans; (2) Pallet dimensions (W × D × H) including bottom board orientation; (3) Minimum, average, and maximum pallet gross weights; (4) Forklift specifications including mast lift height and turning radius; and (5) Operating environment temperatures (ambient vs. refrigerated/cold room).
