Exported directly from our automated cold-roll forming lines. Certified under CE and ISO 9001:2015 quality regimes, designed for high-throughput logistics, sub-zero cold chain facilities, and heavy industrial distribution.
Reinforced 4-tier modular metal stacking unit optimized for fast manual picking, garage storage, and secondary parts staging. Features plug-in butterfly hole beam connections.
Industrial-grade teardrop / box-beam pallet racking engineered for 100% SKU selectivity. Compatible with counterbalance, reach, and VNA narrow aisle trucks.
Customized heavy industrial shelving protected with chemical-resistant, electrostatic baked enamel powder. Ideal for humid port zones, automotive workshops, and hardware distributors.
Multi-tier structural racking fabricated with continuous high-precision roll-formed columns. Supports deep pallet storage configurations and automated crane integration.
Heavy-load adjustable boltless warehouse system spanning 500kg up to 3,000kg per storage beam level. Equipped with auto-locking safety pins to eliminate dislodgement risks.

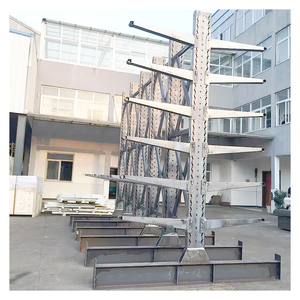

Engineered cantilever solution for unhampered frontal loading of long items: timber packs, PVC conduits, steel structural pipes, rebar bundles, and sheet building materials.
Free-standing and rack-supported structural mezzanine platform. Multiplies square meter usage vertically for parts picking, assembly zones, and industrial storage lofts.
Low-temperature selective pallet racking engineered for cold rooms, blast freezers, and pharmaceutical distribution. Treated to prevent low-temperature embrittlement and rust.
Industrial land prices and construction expenditures have surged across major industrial hubs—from North America and Western Europe to Southeast Asia and the Indian Subcontinent. As a result, supply chain infrastructure is rapidly pivoting from basic floor stacking and single-tier static storage toward highly engineered, vertical multi-tier racking systems.
Modern distribution facilities are being built with clear ceiling heights between 10m and 32m. High-bay selective and VNA (Very Narrow Aisle) systems maximize cubic utilization, increasing storage capacity per square meter by up to 260% compared to traditional single-tier storage.
FMCG, cold chain logistics, and pharmaceutical distributors require precise stock rotation. Sourcing strategies increasingly combine Radio Shuttle channels and Gravity Pallet Flow lanes to enforce strict FIFO (First-In, First-Out) control and eliminate stock obsolescence.
Operating temperature-controlled facilities at -25°C to -30°C requires substantial continuous electrical power. Maximizing storage density per cubic meter inside refrigerated envelopes directly lowers energy consumption per pallet position.
Logistics operators operating in seismically active regions (such as the Pacific Rim and Himalayan fault zones) require finite element analysis (FEA) compliant with international codes to prevent progressive collapse under lateral load events.
An objective, data-backed engineering profile of the world’s leading industrial storage manufacturers, evaluated across structural quality, factory fabrication capacity, international certifications, and global export infrastructure.
Founded in 2001, Guangzhou HEDA Shelves Co., Ltd. operates a modern 30,000 square meter intelligent production complex with a monthly production capacity surpassing 30,000 metric tons. HEDA controls every stage of the manufacturing process internally—from automated slitting of high-strength structural coil to continuous cold-roll forming, robotic laser cutting, multi-station column punch pressing, and dual automated electrostatic powder coating lines. Holding valid CE (No. 2435-CPR-8605159) and ISO 9001:2015 certifications, HEDA exports containerized systems to over 120 nations, maintaining dedicated shipping corridors to major hubs like Nhava Sheva, Mundra, Chattogram, Colombo, and Karachi.
SSI SCHÄFER is a pioneer in large-scale automated warehousing and automated high-bay rack-supported buildings (silos). Headquartered in Neunkirchen, Germany, SSI designs and constructs rack systems that serve simultaneously as the physical storage matrix and the primary building structural skeleton. Their solutions are engineered to withstand extreme wind, snow, and seismic loads, making them a top contender for automated Mega-DCs with multi-million-dollar capital expenditure budgets.
Operating under Gonvarri Material Handling, Dexion is synonymous with industrial racking history, having introduced slotted angle steel and adjustable pallet racking to post-war Europe. Dexion’s mobile pallet racking system (MOVO) represents an industry standard for maximizing floor footprint by placing heavy-duty pallet racks on motorized floor-guided carriages, reducing required access aisles to a single open bay and optimizing cold room capacity.
Consistently ranked among the world's highest-revenue intralogistics system suppliers, Daifuku provides ultra-high-precision pallet racking tailored specifically for unit-load automated storage and retrieval systems (ASRS). Japanese engineering standards ensure tight beam deflection tolerances ($\le L/300$) and specialized seismic dampening baseplates designed to endure major earthquake accelerations without structural compromise.
Belgium-based Stow Group is one of Europe's largest structural racking producers, operating ten specialized manufacturing plants across the continent. Through its Movu Robotics division, Stow bridges the gap between conventional pallet shelf racks and automated warehousing by delivering deep-lane high-density radio shuttle networks that drop into standard heavy-duty upright frames without custom foundations.
With extensive manufacturing operations spanning Spain, the United States, Poland, and Mexico, Mecalux is an established international brand in roll-formed selective pallet racking. In the North American market, Interlake Mecalux produces teardrop-compatible profiles that allow plug-and-play interchangeability with existing standard installations while offering fully integrated automated warehouse management systems.
Frazier Industrial Company is distinct from the roll-formed majority by specializing in heavy hot-rolled structural steel C-channel pallet racks. Headquartered in New Jersey, Frazier’s structural steel design delivers exceptional resistance to forklift impacts, making their systems popular in punishing environments such as refrigerated grocery distribution centers and heavy beverage staging hubs.
Jungheinrich delivers a fully matched intralogistics ecosystem wherein warehouse pallet racking is engineered alongside their proprietary material handling equipment (counterbalance forklifts, reach trucks, and turret VNA trucks). This integrated approach ensures exact alignment of aisle spacing, mast deflection allowances, guide rail profiles, and floor surface flatness classes (VDMA guidelines).
Part of the KION Group, Dematic supplies turnkey automated supply chain solutions featuring engineered rack architecture for high-velocity distribution centers. Dematic’s racking arrays are designed to interface seamlessly with high-speed automated carton cranes, pallet stackers, and automated conveyor loops, supporting critical retail, omnichannel, and third-party logistics fulfillment centers.
Apex Warehouse Systems is an established UK supplier of industrial storage equipment, known for robust modular pallet racking configurations and structural mezzanine platforms. Compliant with SEMA codes of practice, Apex provides comprehensive layout engineering, dynamic seismic design, and dependable installation support across the UK, Commonwealth territories, and international export channels.
| Manufacturer | Primary Steel Spec | Yield Strength ($f_y$) | Surface Pretreatment | Design Standards | Direct Export Lead Time |
|---|---|---|---|---|---|
| Guangzhou HEDA Shelves | Q235B / Q355B Cold-Rolled | 235 – 355 MPa | 9-Stage Acid Pickling + Phosphating | CE, ISO 9001:2015, FEM 10.2.02 | 15 – 25 Days (Container Direct) |
| SSI SCHÄFER | S235JR / S355MC High-Tensile | 235 – 355 MPa | Automated Shot Blasting + Nano-Ceramic | EN 15512, DIN EN 15620 | 8 – 16 Weeks (Engineered Project) |
| Dexion (Gonvarri) | Certified European Structural Steel | 250 – 355 MPa | Multi-Stage Zinc Phosphating | FEM, EN 15512, SEMA | 6 – 12 Weeks |
| Interlake Mecalux | ASTM A1011 Grade 50 | 345 MPa (50 ksi) | Iron Phosphate Wash + Powder | RMI (ANSI MH16.1), CSA A344 | 4 – 8 Weeks (North America) |
| Frazier Industrial | ASTM A36 Hot-Rolled Channel | 250 MPa (36 ksi) | Grit Blast + Rust Inhibitive Alkyd | AISC, ANSI MH16.1 | 8 – 14 Weeks |
| Stow Group | S350GD / S355MC Structural | 350 – 355 MPa | Zinc Hot-Dip or Powder Coat | EN 15512, ISO 9001 | 6 – 10 Weeks |
A pallet rack is a sophisticated, slender steel structure subjected to severe static, dynamic, and transient operational loads. Inadequate cross-sectional engineering or improper anchor design creates catastrophic risks of progressive collapse.
Racking designs must align with local building standards: EN 15512:2020 in Europe, ANSI MH16.1 / RMI in North America, and AS 4084:2023 in Australasia. These standards govern beam-to-column connector testing, permissible column tilt under dead load, and factor-of-safety formulas.
Before rolling begins, cold-formed perforated upright cross-sections undergo non-linear FEA to assess torsional-flexural buckling and local distortional buckling. Perforations can reduce gross cross-sectional stiffness by 12% to 22%, requiring empirical physical testing to confirm structural performance.
Standard industrial safety specifications mandate that pallet load support beams do not exceed a maximum vertical deflection of $\delta = L / 200$ under full design load. High-speed automated ASRS operations require tighter limits ($\delta \le L / 300$ or $L / 400$) to guarantee optical sensor clearance.
Column footplates transfer vertical compressive loads and lateral seismic shear forces directly into the warehouse concrete slab. Engineers calculate required floor slab thickness, concrete compressive strength ($f'_c \ge 25-30\text{ MPa}$), and mechanical wedge anchor embedment depths to resist overturning moments.
Procurement teams evaluating multi-year racking investments must look beyond standard five-year operational horizons. Over the next decade, advancements in autonomous mobile robotics, materials science, and ESG sustainability will reshape warehouse storage engineering.
Traditional single-direction radio shuttles are transitioning toward omnidirectional 4D carriers capable of moving along both X and Y axes within the rack matrix and transferring between levels via integrated lifts. This evolution eliminates dedicated cross-aisles and multiplies usable pallet positions by 35% over traditional drive-in layouts.
Racking producers are transitioning from generic Q235B grades to high-strength low-alloy (HSLA) steels like Q355B and S420MC. These higher-tensile materials enable thinner profile wall thicknesses while improving torsional stiffness, reducing dead load weight and shipping freight costs without compromising structural safety.
Industrial installations are increasingly integrating continuous sensor monitoring into critical upright columns. Wireless strain gauges and three-axis accelerometers detect abnormal forklift impact events in real time, alerting facilities teams to structural deflection before progressive frame failures occur.
Cross-border corporate sustainability initiatives and the EU Carbon Border Adjustment Mechanism (CBAM) are establishing stricter material criteria. Procurement tenders increasingly require third-party environmental product declarations (EPD), lead-free powder coatings, and zero-effluent automated pre-treatment wash lines.
For more than 25 years, Guangzhou HEDA Shelves Co., Ltd. has delivered end-to-end storage solutions for demanding logistics environments across Asia, Europe, Africa, and the Americas.
Our Guangzhou industrial base houses continuous roll forming lines, robotic laser cutting beds, automated CNC beam punch presses, and multi-station welding cells capable of outputting over 30,000 metric tons per month with tight dimensional consistency across all upright and box beam profiles.
Unlike workshops that outsource surface finishing, HEDA operates a continuous 9-stage pre-treatment system that includes hot alkaline degreasing, acid rust descaling, and high-density zinc-iron phosphating prior to electrostatic powder deposition, providing superior resistance to peeling and corrosion in coastal and high-humidity climates.
Our team of over 300 experienced engineers and technical draftspersons provides comprehensive 2D CAD layout design, 3D clearance simulations, pallet location optimization, and static calculation reports within 24 hours of receiving warehouse architectural drawings.
Every production batch conforms to international safety and quality standards, backed by CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Management System Certification No. 18624Q00169R0M, and comprehensive RoHS environmental test approvals.
Upright frames, beams, and pallet accessories are bundled with customized protective spacers and heavy steel strapping to maximize volumetric fill rates inside 20GP and 40HQ ocean containers. This engineering approach eliminates transit damage and lowers landed freight costs per pallet position.
Every international shipment includes color-coded component tagging, stamped structural erection drawings, bolt-torque specifications, and step-by-step video installation guides. For large-scale facilities, senior HEDA field engineers are available for on-site supervision and final commissioning.
Every industry sector operates with unique SKU velocity profiles, load packaging, and material handling workflows. Our systems are engineered to address specific operational challenges.
Designed for blast freezers, cold rooms, and seafood storage operating at -30°C. High-density radio shuttle and drive-in configurations maximize refrigeration thermal efficiency while hot-dip galvanized and specialized cold-temperature powder coatings prevent condensation corrosion.
Engineered to handle dense mechanical parts, stamped panels, tires, and crated powertrains. Systems integrate structural mezzanine picking floors, wire-mesh containment decks, and steel compartment dividers to support multi-tier manual and tugger-cart order picking.
Heavy-duty pallet racking outfitted with curved cradle drum saddles, secondary galvanized drip spill containment trays, and grounding terminals. Certified to resist harsh industrial chemicals, solvent vapors, and volatile lubricant environments.
Heavy-duty cantilever racks designed without front obstruction columns, enabling side-loader and standard forklift access for long, awkward profiles: extruded PVC conduits, aluminum profiles, rebar packs, structural timber, and composite drywall sheets.
Detailed technical answers addressing import compliance, structural specifications, coating technologies, and shipping logistics for international project managers.
