Engineered OEM/ODM Racking Systems
Manufactured using cold-rolled Q235B and high-yield Q355B steel, our racking assemblies are custom-machined for high-density logistics hubs, cold stores, e-commerce distribution facilities, and industrial manufacturing plants worldwide.
Warehouse Racking Heavy Duty Rack System Stack Storage Steel Pallet Racks
- Load Capacity: 1,000 - 4,500 kg/level
- Steel Profile: Q235B / Q355B Box Beams
- Pitch Adjustment: 50mm / 75mm Modular

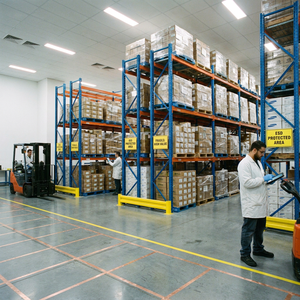

Industrial Steel Storage Rack Heavy Load Warehouse Racking Equipment Supplier
- Design Safety: Finite Element Analysis (FEA)
- Upright Section: Omega / C-Profile 1.8-2.5mm
- Surface Finish: Epoxy Powder Coated
Custom Warehouse Racking System Steel Storage Rack Solution For Logistics
- Architecture: Custom Aisle & Bay Span
- Accessory Integration: Drop-in Wire Decking
- Compliance: RMI / FEM 10.2.02 Standards
1000KG Warehouse Heavy Duty Pallet Rack Adjustable Storage Racking System
- Capacity Rating: 1,000 kg Uniform Distributed
- Safety Mechanism: Spring Locking Connector Pins
- Base Mounting: Expansion Anchor Assemblies

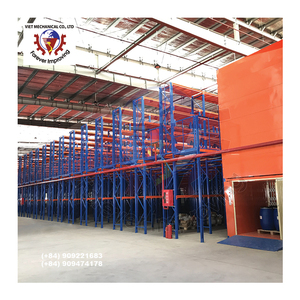

Customized Adjustable Metal Mezzanine Floor Racking System For Warehouses
- Floor Capacity: 300 - 1,000 kg/m² Floor Rating
- Multi-Tier Options: 2 to 4 Structural Levels
- Decking Medium: Perforated Steel / Barlan / Plywood
Sanitary Washdown Food Processing FRP Composite Storage Shelving Rack
- Environment: Food Processing / Wet / Cold Room
- Corrosion Rating: Immune to Salt & Chemical Fumes
- Sanitization: High-Pressure Steam Compatible
Industrial Storage Heavy Duty 1 Ton Adjustable Pallet Racking Assemble Rack
- Frame Height: Up to 12,000mm Vertical Reach
- Beam Construction: Double C-Welded Box Profile
- Deflection Ratio: L/200 Safety Engineering Standard

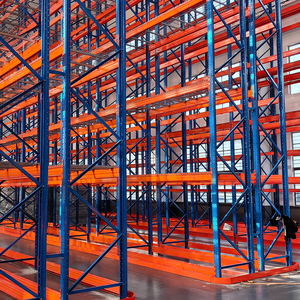

Heavy Duty Warehouse Storage Selective Teardrop Pallet Racking System
- Hole Compatibility: Universal 2-Inch Teardrop Pattern
- Lock Mechanism: Automatic Gravity Pin Lock
- Certification: CE 2435-CPR-8605159 Verified
Physics of Progressive Collapse & Anti-Falling Mechanics
In high-bay industrial distribution facilities, rack system stability hinges upon dynamic equilibrium under asymmetric loadings, seismic ground oscillations, and forklift kinetic impact. In compliant warehouse storage terminology, "falling accidents" refer to catastrophic structural collapse or localized cargo dislodgment caused by beam shearing, connector failure, or progressive frame buckling.
Our OEM/ODM engineering approach eliminates single-point vulnerability by deploying continuous cold-formed upright sections rolled from certified high-tensile structural steel. By designing to strict deflection boundaries (L/200 for live loads and L/250 under high-tier automation), every racking bay retains redundant load paths. Even when an isolated upright suffers localized MHE collision, axial load transferring prevents downstream frame tipping.
Structural Safety Safeguards Built-In
-
Heavy-Gauge Column Flange Reinforcement: Multi-bend upright profiles with roll-formed stiffener ribs to disperse rotational eccentricities and prevent axial twist under maximum static capacity.
-
Positive Engagement Safety Locks: Dual-tab drop-in steel pins withstand up to 1,000 kg upward shearing force, safeguarding against vertical beam dislodgment during rapid forklift pallet retrieval.
-
Seismic Baseplate & Chemical Anchor Engineering: Heavy-duty oversized footplates engineered to match localized slab compressive strength (C20/25 to C35/45) and seismic sub-base fault criteria.
-
Integrated Fall-Prevention Backstop Mesh: Galvanized containment barriers and anti-push-through safety stops installed along double-deep or pedestrian-adjacent aisles to prevent pallet fall-off.
Proprietary 10-Stage Production Protocol
Every structural upright, support beam, and mezzanine girder undergoes full quality tracking at our Guangzhou facility. Our closed-loop manufacturing pipeline ensures absolute load reliability for international container shipments.
Steel Coil Inspection
Chemical composition testing of hot-rolled and cold-rolled coils, confirming elongation and yield stress.
Precision Decoiling & Slitting
Automated uncoiling, leveling, and high-speed rotary shearing with ±0.2mm dimensional tolerance.
Continuous CNC Punching
High-precision multi-ton mechanical presses creating standardized teardrop, diamond, or hex pitch holes.
Multi-Pass Roll Forming
Continuous progressive roll forming on 18-to-24 station profiling lines for uniform structural wall gauge.
Laser Cutting & Notching
High-power CNC fiber lasers executing mitering, slotting, and bracket preparation for custom integration.
Robotic Structural Welding
Automated MIG/MAG welding cells joining beam connectors with deep metallurgical weld penetration.
Surface Blasting & Degreasing
Shot-blasting to remove scale, oil, and oxides, achieving an Sa 2.5 profile for maximum coating adhesion.
Pickling & Phosphating
Multi-stage chemical conversion immersion creating a corrosion-resistant crystalline phosphate layer.
Electrostatic Powder Cure
Thermoset epoxy polyester coating cured at 200°C for high impact strength and abrasion resistance.
CMM & Palletized Bundling
Dimensional coordinate verification, bundle strappings, protective shrink-wrapping, and containerized cubing.
Future Trends in Warehouse Racking Procurement
As enterprise distribution models transition toward ultra-dense cubic footprints and autonomous mobile fulfillment, procurement managers must adapt their structural specifications to align with evolving supply chain priorities.
ASRS & Shuttle Synergy
Static storage is increasingly giving way to semi-automated radio shuttle tracks and fully automated stacker crane racking. Systems require ultra-tight deflection limits (down to L/400) and millimeter-level rail leveling to enable continuous automated navigation.
Total Cost of Ownership (TCO)
Leading buyers are moving past initial CIF purchase price, prioritizing corrosion-free hot-dip galvanization, life-cycle powder finishes, and boltless field re-configurability that minimize lifetime maintenance expenses.
Seismic & ESG Governance
Global institutional developers (Prologis, ESR, GLP) demand verifiable European EN 15512 or American RMI certifications alongside environmental steel declarations (EPD), tracking embodied carbon per metric ton of fabricated uprights.
Containerization Efficiency
High ocean freight volatility makes export nesting and knock-down modular frame design paramount. OEM upright profiles engineered for 40-foot HQ container volume utilization can reduce shipping expenses by up to 28% per pallet position.
High-Density System Selection Matrix
Select the optimal storage topology based on SKU selectivity requirements, operational turnover speed, forklift equipment parameters, and capital expenditure allocation.
| Storage Racking System | Pallet Accessibility | Density Level | Stock Management | Recommended Industry Fit | Safety Critical Factor |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | Standard (35-40%) | FIFO / LIFO Flexible | 3PL, FMCG, Multi-SKU Retail | Beam Lock Integrity |
| Double Deep Racking | 50% Direct Access | Medium-High (50-60%) | LIFO Principle | Cold Stores, Dry Food Warehouses | Reach Truck Fork Guide |
| Drive-In / Drive-Through | Lane-Only Selective | Very High (70-80%) | Strict LIFO / FIFO | Beverage, Bulk Raw Materials | Ground Floor Guide Rails |
| Radio Shuttle System | Automated Deep Lane | Maximum (80-90%) | FIFO or LIFO Programmable | Cold Chain (-25°C), Dairy, Pharma | Optical Rail Alignment |
| Push-Back Cart Racking | 2-6 Pallets per Lane | High (60-70%) | LIFO by Lane | Fast Turnaround Distribution | Incline Gravity Dampers |
| Heavy Cantilever Racking | Unobstructed Frontal | Medium Density | Direct Handling | Pipes, Steel Tubing, Timber, PVC | Column Spline Moment Deflection |
| Structural Steel Mezzanine | Floor Deck Multi-Tier | Doubles / Triples Floor Area | Manual & Conveyor Picking | E-Commerce, Automotive Assembly | Uniform Slab Load Dissipation |
Why Enterprise Importers Partner with HEDA
With an established presence since 2001, Guangzhou Heda Shelves Co., Ltd. serves warehouse operators, system integrators, and industrial rack distributors across more than 120 countries.
25+ Years Industrial Track Record
Decades of structural fabrication and design refinement covering thousands of projects across chemical, manufacturing, food logistics, and cold-chain sectors.
Complimentary CAD & 3D Modeling
Our senior structural design team delivers detailed CAD layouts, warehouse throughput simulations, and load calculation sheets within 24 to 48 hours.
Direct Export to Global Discharge Ports
Seamless CIF shipping to Nhava Sheva, Mundra, Chattogram, Karachi, Colombo, Singapore, Jebel Ali, Rotterdam, and Long Beach with container packing optimization.
Audited Structural Certifications
Complete product verification with official CE certification (No. 2435-CPR-8605159), ISO 9001:2015 registration, and full compliance with RoHS and FEM protocols.
Frequently Asked Questions by Industrial Buyers
Technical guidance covering engineering specifications, safety factors, containerized export logistics, and OEM fabrication tolerances.
How does OEM/ODM design prevent pallet rack progressive collapse?
Progressive collapse is prevented through three engineering layers: First, vertical column load redistribution using finite element calculations that allow adjacent frames to carry temporary redistributed loads. Second, high-ductility connector brackets fitted with mechanical safety locks that prevent accidental disengagement. Third, top-tie structural bracing, frame cross-ties, and heavy anchor plates that dissipate horizontal seismic and braking forces directly into the foundation concrete.
What parameters must be provided to obtain an accurate CAD layout?
We require the architectural floor plan (DWG or PDF) noting internal column coordinates, clear height beneath roof trusses or fire sprinkler pipes, concrete slab depth and compressive rating (e.g., 200mm slab @ 25 MPa), specific pallet dimensional envelopes (W x D x H) including goods overhang, maximum gross weight per pallet, forklift model specifications (turning radius and mast lift height), and local seismic zonation data.
What distinguishes roll-formed teardrop racking from structural racking?
Roll-formed teardrop racking is cold-profiled from high-yield sheet coil, delivering a cost-efficient, high-strength-to-weight solution with universal boltless adjustability on 2-inch centers. Structural racking utilizes heavy hot-rolled C-channel profiles bolted together. While structural steel provides greater resilience against heavy industrial truck collisions in high-impact lumber or steel yards, roll-formed designs dominate 85% of standard commercial distribution centers due to superior versatility and reduced transport weight.
How are components protected against maritime corrosion during ocean transit?
Prior to coating, steel members undergo multi-stage immersion: hot degreasing, acid pickling to eliminate mill scale, and micro-crystalline zinc phosphating. Electrostatic epoxy-polyester thermosetting powder is baked on at 200°C to achieve a durable 60-90 micron finish. For overseas ocean transit or open warehouse setups in humid coastal climates, structural components can also be specified with continuous pre-galvanized or hot-dip galvanized finishes (HDG to EN ISO 1461).
Can our local installation crew assemble your racking systems independently?
Yes. Every international export shipment is packed with detailed component tagging, localized erection drawings, anchor bolt torque charts, and installation videos. Our upright frames can be shipped knocked-down (KD) to optimize container freight volume or fully assembled for rapid on-site erection. For major automated and multi-tier mezzanine projects, HEDA can deploy bilingual site engineers to oversee project commissioning.
What QA documentation is provided for third-party engineering audits?
For every project order, we provide mill test certificates (MTC) documenting steel yield stress and tensile elongation, CE factory production control declarations, ISO 9001:2015 inspection certificates, powder coating salt spray reports, and detailed structural calculation sheets demonstrating compliance with RMI, FEM, or EN standards.
Request Your Free Warehouse CAD Layout & Engineering Consultation
Collaborate directly with our engineering department to configure an optimized storage plan. Share your facility drawings, pallet dimensions, and loading requirements to receive a customized 2D/3D layout, bill of materials, and landed export quotation.
