OEM/ODM Smart Storage & Heavy-Duty Racking Systems
Engineered for maximum structural integrity, seamless AGV/AMR robot passage, and high-density pallet management across automated modern distribution hubs.
Factory Custom Adjustable Storage Shelves Heavy Duty Shelving
Heavy Duty Steel Truck Tire Pallet Racking System
Cold-Rolled Steel Double-Sided Wire Shelving Unit
Factory Direct 4-Layer 800kg Longspan Pallet Rack
Industrial Heavy Duty Metal Pallet Storage Racking
Industrial Light & Medium Duty Steel Plate Racks

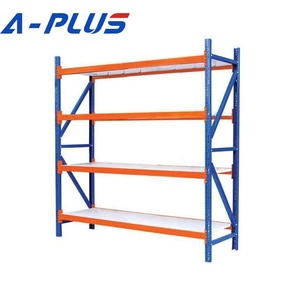

Wholesale Industrial Shelving Units for Commercial & Retail
Heavy Duty Wire Mesh Decking Pallet Rack System
Engineering Whitepaper: The Evolution of OEM/ODM Smart Warehouse Racking Systems
Modern supply chain logistics are undergoing a radical paradigm shift. Driven by automated fulfillment demands, rapid e-commerce expansion, and the rise of Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs), global enterprise procurement officers are transitioning away from standardized static racking. Today's commercial logistics infrastructure demands custom OEM/ODM smart warehouse racking solutions engineered to micro-millimeter structural tolerances, compliant with stringent global standards (EN 15512, ANSI MH16.1, FEM 10.2.02, and ISO 9001:2015), and fully optimized for integrated Warehouse Management Systems (WMS).
1. Technical Anatomy of OEM/ODM Smart Racking Architectures
Custom OEM/ODM manufacturing allows industrial operations to solve specific operational constraints that standard off-the-shelf shelving cannot address. High-density storage architectures integrate several critical engineering layers:
- High-Tensile Cold-Rolled Steel Profiles: Fabricated primarily from Q355B and SS400 grade structural steel, upright columns undergo automated multi-stage continuous roll forming. Punching patterns are executed with continuous servo-driven precision, offering 50mm or 75mm beam adjustment pitches to maximize dynamic vertical cube utilization.
- Structural Beam-to-Column Interlocking Connectors: Utilizing 3 to 4-claw cold-stamped connectors engineered with self-locking steel safety pins. This structural geometry prevents dynamic unhooking during high-speed forklift maneuvers or seismic activity.
- Automated Radio Shuttle & AS/RS Rail Integration: Specialized OEM guide rails fitted into cold-storage drive-in or shuttle channels ensure smooth, sub-millimeter shuttle cart travel. Surface friction coefficients are calculated specifically to avoid kinetic slippage during acceleration and braking cycles up to 1.5 m/s.
- Advanced Pretreatment & Anti-Corrosion Finishes: Components undergo an automated 10-stage chemical pickling and phosphating wash prior to electrostatic epoxy-polyester powder coating (60–80 micron film thickness). For cold-storage environments (-30°C) and coastal high-humidity hubs, continuous hot-dip galvanizing options are provided to permanently eliminate rust exfoliation.
Comparison Matrix: Traditional Static Racking vs. OEM/ODM Smart Automated Systems
| Performance Metric | Standard Static Selective Racking | OEM/ODM Radio Shuttle Racking | Automated AS/RS Crane Racking |
|---|---|---|---|
| Volumetric Space Utilization | 40% – 50% Efficiency | 75% – 85% Efficiency | 85% – 95% High-Bay Density |
| Handling Equipment Integration | Manual Counterbalance Forklifts | Semi-Automated Radio Shuttle + Forklift | Fully Automated Stacker Cranes & AMRs |
| Structural Tolerance Standard | Standard ISO/FEM Tolerances | EN 15512 Tight Tolerance Class | Micro-Tolerance (±1.5mm Total Runway) |
| Throughput Capacity (Pallets/Hr) | 20 – 35 Pallets / Hr / Aisle | 60 – 90 Pallets / Hr / System | 120+ Pallets / Hr Automated |
| Custom OEM Structural Profiling | Limited Pre-set Sizes | Fully Tailored Column Gauges & Rails | Bespoke Heavy Structural FEA Profiling |
Future Procurement Trends for Global Supply Chain Leaders (2025–2030)
As global supply networks adapt to nearshoring, automated labor reduction, and strict ESG (Environmental, Social, and Governance) targets, procurement trends among enterprise logistics directors are evolving dramatically:
Trend 1: Data-Driven Finite Element Analysis (FEA) Pre-Sourcing
Modern enterprise procurement teams no longer rely solely on physical load-testing certificates. Buyers now demand digital simulation reports utilizing Finite Element Analysis (FEA) to model rack frame elasticity, seismic shear-stress distribution, and long-term beam deflection before full-scale manufacturing begins. OEM suppliers must provide computerized FEA validation aligned with local building codes across South Asia, North America, Europe, and the Middle East.
Trend 2: Seamless Modular Interoperability for Robotics & AGVs
With warehouse robotics advancing rapidly, rack baseplates, aisle guides, and rack-supported mezzanines are engineered around AGV sensor reflectivity and ground-clearance dimensions. Embedded magnetic strips, reflective optical targets, and rack-mounted IoT strain sensors are turning static rack columns into active smart telemetry nodes within the WCS (Warehouse Control System).
Trend 3: Cold-Chain Expansion & Sustainable Green Manufacturing
The global surge in fresh food, pharmaceutical, and biological storage requires racking systems capable of withstanding extreme thermal cycles (-30°C to +40°C) without brittle structural failure. Simultaneously, enterprise buyers require EPD (Environmental Product Declaration) environmental compliance, non-toxic heavy-metal-free powder coatings, and zero-waste steel recyclability to meet carbon-neutral supply chain targets.
Why Global Enterprise Brands Select Our Manufacturing Base
Guangzhou Heda Shelves Co., Ltd. combines 25+ years of structural storage research with direct OEM/ODM industrial manufacturing power.
Custom OEM/ODM Profiling
Full customization of beam profiles, upright gauges, footplate seismic anchors, and brand-specific color RAL powder coatings tailored precisely to your project engineering drawings.
Verifiable International Quality
Strict structural adherence to CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and full RoHS safety compliance.
Free 3D CAD & Layout Engineering
In-house structural engineering teams prepare complimentary 2D CAD floor layouts, dynamic load calculations, and full 3D spatial renderings within 24 hours of inquiry submission.
Global Export Logistics Power
Exporting to over 120 countries with container-optimized bundling that lowers sea freight costs to major international discharge hubs across South Asia, Europe, Middle East, and the Americas.
End-to-End Factory Production
Complete control over raw steel cutting, continuous cold bending, automated punching, precision welding, and electrostatic coating inside our 30,000 m² factory guarantees 100% component traceability.
Installation Guidance & On-Site Support
Every order is supplied with detailed component numbering, assembly drawings, step-by-step video tutorials, and optional on-site engineer supervision for complex multi-tier mezzanine platforms.
Frequently Asked Questions: Smart Warehouse Racking Sourcing
Expert technical clarity regarding load calculations, OEM customization parameters, installation timelines, and compliance standards.
Optimize Your Warehouse Storage Density & Engineering Efficiency
Connect with our senior structural engineers today. Receive a free CAD layout design, detailed dynamic structural calculation report, and factory-direct OEM pricing within 24 hours.
