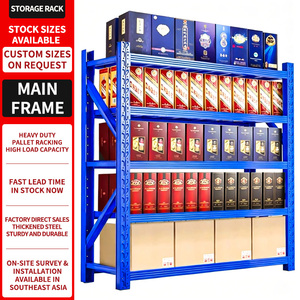

Medium Duty
Engineered Inventory Catalog
Precision Heavy-Duty Pallet Racking & Storage Systems
Direct factory manufacturing certified to CE and ISO 9001 standards. Explore our eight core structural racking architectures built with cold-rolled Q235B/Q355B steel, designed for maximum volume utilization and load safety.

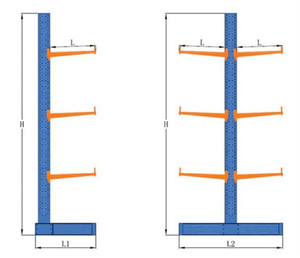

Cantilever
Selective
Fabric Roll
Boltless Heavy
EU Standard
Drive-In
1T - 3T High-Bay
Technical Whitepaper & Metallurgy Insights
Structural Engineering Principles in OEM/ODM Pallet Rack Manufacturing
Modern warehouse racking is not simply structural steel shelving; it is a critical load-bearing civil mechanism subject to combined flexural bending, local torsional buckling, and dynamic seismic ground acceleration. As an authoritative OEM/ODM supplier operating a certified 30,000 m² factory campus since 2001, Guangzhou Heda Shelves Co., Ltd. integrates full-lifecycle metallurgical precision and automated roll-forming technologies to eliminate structural deflection risks and optimize landed cost per pallet position.
Core Structural Standard Compliance: All manufactured racking sections comply with European Standard EN 15512 (Steel Static Storage Systems: Adjustable Pallet Racking Systems - Principles for Structural Design), FEM 10.2.02, and US RMI MH16.1 specifications, verified by rigorous third-party testing with full mill traceability.
25+
Years Heavy Racking Engineering
30,000T
Monthly Cold-Forming Tonnage
10,000+
Global Warehousing Deployments
120+
Export Destination Countries
1. Metallurgy Selection: High-Tensile Q235B vs. Q355B Hot-Rolled Strip Steel
The structural longevity and load integrity of industrial pallet racks depend on the base steel microstructure. Our factory utilizes high-grade, continuous cast strip steel sourced from certified prime domestic mills. For standard ambient selective setups, high-ductility Q235B carbon structural steel (nominal yield strength $f_y = 235 \text{ MPa}$, elongation $\ge 26\%$) delivers balanced elasticity and energy absorption under accidental forklift impacts. For high-bay rack structures exceeding 12 meters, automated crane AS/RS configurations, and heavy cantilever arms handling upwards of 3,000 kg, we specify low-alloy high-strength Q355B (yield strength $f_y = 355 \text{ MPa}$). This reduces structural self-weight while guaranteeing safety factors against local flange buckling under maximum allowable dead-plus-live loading.
2. 10-Stage Precision Automated Production Flow
Every structural upright, box beam, and bracing channel manufactured in our Guangzhou production complex passes through a rigidly monitored 10-stage quality-assured process:
Stage 1 to 5: Cold-Forming & High-Tolerance Punching. Raw coils undergo automated decoiling and high-precision CNC slitting to sub-millimeter tolerances. Continuous multi-station roll-forming lines bend profiles via progressive roller passes (up to 24 roll-stands) to produce omega-shaped upright columns with internal stiffening ribs without introducing micro-cracking along bend radii. Fully automated hydraulic punching dies deliver accurate 50mm, 75mm, or 76.2mm hole patterns to ensure rigid hook-pin engagement.
Stage 6 to 10: Structural Welding & Multi-Stage Surface Treatment. Interlocking beam-end connectors are welded onto box beams using robotic dual-head CO2/Argon shielded arc welding machines, providing uniform penetration depth without heat-induced camber. Components enter an 8-stage pre-treatment line featuring acid pickling, multi-stage water rinsing, zinc phosphating, and de-ionized surface sealing to remove all mill scale and grease. Finished components receive an automated electrostatic polyester powder coat cured at 200°C for 25 minutes, creating a cross-linked coating film (thickness 60–90 microns) resistant to scratch damage, chemical vapors, and humid coastal salinity.
3. Technical Selection Matrix: Evaluating Heavy-Duty Storage Configurations
Selecting the optimal pallet racking configuration requires cross-referencing pallet selectivity against warehouse spatial cube utilization, material handling fleet kinematics, and picking cycles. Review our engineering comparison below:
| Storage System Type | Direct Selectivity | Floor Cube Utilization | Inventory Rotation | Typical Forklift Interface | Capital Cost Index |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% (Instant Access) | 35% - 45% | FIFO / LIFO Flexible | Counterbalance, Reach Truck | Baseline (Low) |
| Double Deep Racking | 50% (Two-Deep Pallets) | 50% - 60% | LIFO | Deep-Reach Pantograph Truck | Low - Moderate |
| Drive-In / Drive-Through | Single Lane Access | 65% - 75% | LIFO (Drive-In) / FIFO | Counterbalance, Narrow Chassis | Moderate |
| Push-Back Cart Racking | Lane Facing (2-6 Deep) | 60% - 70% | LIFO | Standard Reach / Counterbalance | Moderate - High |
| Radio Shuttle Automation | Lane Facing (Deep Lane) | 75% - 85% | FIFO & LIFO Software Controlled | Standard Forklift + Radio Shuttles | Moderate - High |
| Very Narrow Aisle (VNA) | 100% (Direct Access) | 55% - 65% | FIFO / LIFO Flexible | Wire/Rail Guided VNA Man-Up Turret | Moderate |
| Heavy Duty Cantilever | 100% Open Horizontal Face | Variable (Long Goods) | Batch / Random Access | Side Loader, Multi-Directional Truck | Moderate |
Strategic Procurement Forecast
Future Procurement Trends in Industrial Pallet Racking Systems
Global supply chain volatility, urban real estate appreciation, and accelerated logistics automation have radically altered pallet rack procurement methodologies. Engineering buyers are moving away from commodity steel tenders toward total cost of ownership (TCO) life-cycle assessments, seismic compliance verification, and future-ready automation modularity.
1. Hybrid AMR & Shuttle Modularity
Procurement teams demand racking upright profiles that integrate floor-level Autonomous Mobile Robot (AMR) drop stations and upper-level Semi-Automated Radio Shuttle carriers without requiring complete system redesigns.
2. Cold-Chain Thermal Density Optimization
With refrigerated warehouse power costs spiking globally, procurement is prioritizing high-density Drive-In and Pallet Flow setups that cut conditioned cubic volume per pallet position by over 40% compared to wide aisles.
3. Verified Dynamic Seismic Calculation
Specifiers in emerging logistics centers across South Asia, the Middle East, and Latin America mandate finite element seismic verification matching specific local ground acceleration coefficients ($S_s, S_1$).
4. Container-Maximized Logistics Packaging
Rising ocean freight makes nesting density paramount. Standardized bundle configurations packed with steel dunnage allow upwards of 26 to 28 tons net weight per 40ft High Cube container without transit abrasion.
Guangzhou Factory Capabilities
Why Tier-1 Importers and EPC Contractors Choose HEDA Shelves
Operating from our integrated manufacturing facilities in Guangzhou, Guangdong, Guangzhou Heda Shelves Co., Ltd. provides comprehensive engineering, structural customization, and high-volume containerized fulfillment for global distributors.
25+ Years Dedicated Heavy Racking Heritage
Founded in 2001, we possess deep engineering knowledge spanning warehouse layouts, logistics flow modeling, and steel structures for automotive, chemical, pharmaceutical, and 3PL distribution centers.
Free CAD Layout & Static Engineering Calculation
Our in-house design engineering department generates full 2D architectural warehouse layouts, 3D structural perspective renderings, and load capacity tables within 24–48 hours upon receiving warehouse drawings.
Verified ISO 9001 & CE Regulatory Certifications
Rigorous quality tracking backed by official CE Certificate (No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M). Every batch is stamped for safety trace integrity.
Purchasing Knowledge Base
Frequently Asked Questions on Heavy Pallet Racking Sourcing
Get answers to critical technical questions regarding steel grade certifications, corrosion resistance, floor slab loadings, and containerized ocean shipping.
1. How does your factory guarantee structural load safety factors under EN 15512 standards?
Our structural calculations apply limit state design according to EN 15512 and FEM 10.2.02. We incorporate a minimum partial safety factor $\gamma_M = 1.4$ for steel yield limits and $\gamma_Q = 1.4$ for pallet live loads. Beam deflection under full operational safe working load is strictly limited to $L / 200$ (with options for $L / 300$ for automated reach applications). Frame uprights are engineered with continuous vertical bracing and floor base anchor plates designed to transfer static compression and seismic shear forces directly into the slab.
2. What warehouse technical parameters are required to generate an engineering CAD layout?
To provide an optimized layout and quotation, we require: (1) Warehouse architectural drawings indicating building column grids, clear ceiling height, dock door locations, and fire exit routes; (2) Concrete slab thickness, compressive rating ($f'_c$ in MPa), and floor flatness tolerance; (3) Pallet specifications including overall length, width, height including goods, and maximum gross weight; (4) Material handling equipment specifications, specifically forklift model, turning radius ($A_{st}$), mast closed height, and maximum fork elevation.
3. How does your surface treatment protect against tropical humidity and coastal salt-spray corrosion?
Standard industrial powder coatings often bubble and rust if applied over oily steel. HEDA Shelves routes all roll-formed profiles through a 60-meter continuous chemical pre-treatment system: hot alkaline degreasing, acid pickling to eliminate iron oxide mill scale, double water cascading rinse, zinc-phosphate micro-crystalline bonding coat, and high-temp drying. The subsequent electrostatically applied epoxy-polyester powder undergoes 200°C thermal baking. For outdoor racking, fertilizer hubs, and sub-zero cold chain rooms, we supply hot-dip galvanized components (ISO 1461 compliant, 70–85µm zinc thickness) to prevent oxidation.
4. What is the standard manufacturing lead time and container packing method for ocean export?
Standard project lead time for a 5 to 10 container order is 20 to 25 working days from technical drawing sign-off and deposit receipt. Beams and uprights are bundled with heavy-duty PET straps, high-strength steel strapping, and protective edge board cushions on custom steel skids to allow direct forklift unloading at destination ports. Small accessories (safety pins, footplates, shims, bolts, and row spacers) are packed in reinforced wooden-free seaworthy cartons and palletized.
5. Can OEM distributors order custom color configurations, upright punching pitches, and private label logos?
Yes. As a pure OEM/ODM manufacturer, we offer extensive custom manufacturing. Uprights can be punched with standard teardrop, diamond, hexagonal, or metric pitches (50mm, 75mm, 76.2mm). Any custom RAL color is available (common schemes: RAL 5015 Sky Blue uprights with RAL 2004 Pure Orange beams). Beam connector claws can be engineered to interface seamlessly with existing rack systems, and company branding plates or load capacity warning notices can be laser-engraved or screen-printed per client specifications.
6. What installation support is provided for international procurement projects?
Every container shipment includes an itemized bill of materials, detailed 3D step-by-step assembly drawings, and video guides that demonstrate proper frame squaring, cross-bracing torque specifications, beam safety-lock placement, and expansion anchor installation. For large-scale logistics hub installations (above 10,000 pallet positions), we dispatch senior installation engineers to manage site safety, coordinate local contractor teams, and conduct final load inspections.
Request an Engineered Layout & Factory-Direct Quotation
Connect directly with our senior racking structural engineering team. Submit your warehouse floor plan today for a complimentary CAD layout, beam deflection calculation, and container-optimized CIF price schedule.
