Engineered Industrial Racking & Shelving Systems
Explore our top-tier medium-duty and high-density industrial storage configurations. Fabricated with certified Q235B cold-rolled structural steel to meet FEM 10.2.02, SEMA, and ANSI MH16.1 international storage standards.

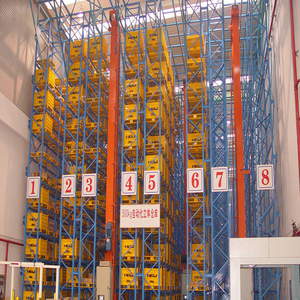

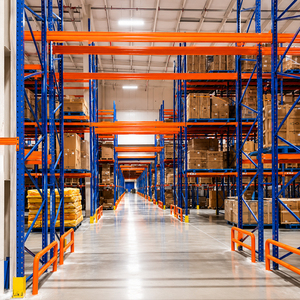

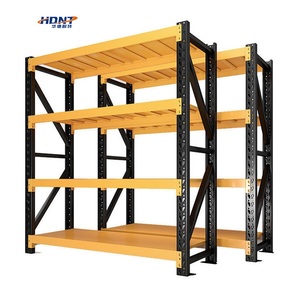

The Technical Anatomy of Industrial Medium Duty Racking Systems
In contemporary supply chain logistics, the medium duty racking system represents the vital operational link between light-duty manual shelving and high-tonnage selective pallet racks. Specifically designed for uniformly distributed loads (UDL) spanning 200 kg to 800 kg per storage level, these systems accommodate manual carton picking, intermediate buffer buffering, parts distribution, and integration into multi-tier catwalk picking mezzanines.
As a premier OEM/ODM supplier and direct manufacturer based in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. applies rigorous cold-roll forming, automated punch indexing, and certified mechanical engineering to ensure that every upright frame, step-beam, and deck assembly satisfies global safety mandates. Below is an exhaustive technical deconstruction of component mechanics, metallurgical profiles, and fabrication tolerances.
| Profile Model | Upright Dimension (mm) | Beam Section (mm) | Standard Span (mm) | Design UDL Capacity | Deflection Limit |
|---|---|---|---|---|---|
| MDR-300 Light-Medium | 55 × 47 × 1.5mm | P-Beam 50 × 30 × 1.2mm | 1500 / 1800mm | 200 – 300 kg / level | < L / 250 |
| MDR-500 Standard Medium | 60 × 50 × 1.8mm | P-Beam 60 × 40 × 1.5mm | 1800 / 2000mm | 350 – 500 kg / level | < L / 250 |
| MDR-800 Heavy-Medium | 75 × 60 × 2.0mm | Step Beam 80 × 50 × 1.8mm | 2000 / 2400mm | 600 – 800 kg / level | < L / 200 |
| MDR-Span Longspan II | 80 × 60 × 2.0mm | Closed Box 80 × 40 × 1.5mm | 2200 / 2700mm | 500 – 750 kg / level | < L / 200 |
| MDR-Mezz Platform Base | 90 × 70 × 2.2mm | Heavy Step 100 × 50 × 2.0mm | 1800 / 2500mm | 800 kg / level + 500kg/m² Floor | < L / 300 |
Metallurgy & Section Modulus Optimization
The fundamental stability of a medium-duty rack originates in the yield strength of its structural raw steel. HEDA Shelves sources prime hot-rolled and cold-rolled steel coils matching GB/T Q235B (equivalent to ASTM A36 and EN 10025 S235JR). For seismic installations or multi-tier mezzanine frameworks where dynamic buckling resistance is paramount, high-tensile Q355B (ASTM A572 Grade 50) is custom-specified.
Uprights are rolled through 12 to 16 continuous forming stations to create an Omega (Ω) or modified hexagonal channel geometry. This multi-ribbed cross-section dramatically enhances the radius of gyration, yielding higher permissible axial compressive stresses without requiring excess steel mass. Standard perforations utilize precision butterfly punch designs, diamond teardrop slots, or hexagonal keyholes punched at continuous 50mm or 75mm increments. This pitch provides toolless vertical adjustability while retaining tight locking tolerances with 3-claw or 4-claw safety beam connectors.
Decking Variations: Steel vs. Wire Mesh vs. Particle Infill
Depending on material handling practices, fire codes, and warehouse HVAC circulation, we engineer three core shelf infill options:
- Formed Solid Steel Panels: Fabricated from 0.7mm to 1.2mm cold-rolled steel with reinforced bottom hat-channels. Provides an impenetrable, non-combustible surface ideal for oily auto components, loose fasteners, and smooth manual slide picking.

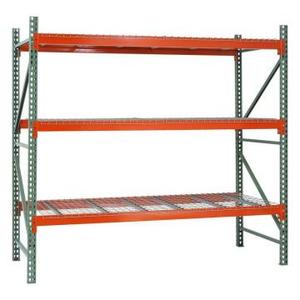

- Galvanized Wire Mesh Decking: Welded 50 × 50mm or 50 × 100mm mesh with structural channel waterfall support flanges. Wire decking permits overhead fire sprinkler penetration, enhances ambient visibility, and prevents warehouse dust accumulation, meeting NFPA 13 building codes.
- High-Density Melamine / Plywood Panels: 15mm to 25mm industrial particle boards seated securely within stepped beam recess pockets, delivering an economical, high-friction surface for textile, apparel, and dry consumer goods storage.
Procurement Trends Reshaping Industrial Storage (2025–2030)
Global supply chain leaders are transitioning from conventional racking toward intelligent, modular, and sustainable storage frameworks. Explore how OEM/ODM capabilities are addressing these macro shifts.
Micro-Fulfillment & Catwalk Integration
With urban industrial rents rising over 8.5% year-over-year, procurement is moving from horizontal floor expansions toward high-cube utilization. Medium-duty racking is increasingly engineered as the multi-tier support foundation for multi-level catwalk mezzanines. By utilizing cold-formed uprights capable of supporting combined tier loads plus suspended walkway deadloads (350 kg/m²), businesses double operational square footage within the same physical building envelope.
AMR Interfacing & Pick-to-Light Modularity
Automated Mobile Robots (AMRs) and automated sorting carts now interface directly with picking shelves. Future-proof procurement requires racks engineered with standardized front-beam mounting brackets for electronic display tags (Pick-to-Light / Put-to-Light) and integrated drop-down gravity roller tracks. OEM customization accommodates RFID tracking bays, laser-guided vehicle clearance zones, and sub-millimeter level assembly tolerances.
Eco-Sustainable Powder Nano-Pretreatment
Environmental compliance and carbon accounting are shifting procurement mandates. Traditional toxic zinc-phosphate washings are being superseded by eco-friendly zirconium nano-ceramic conversion coatings. This cutting-edge pretreatment increases electrostatic powder adhesion while eliminating heavy metal sludge. The resulting 60–90 micron dry film coating passes 500-hour ASTM B117 salt spray tests, vital for coastal and high-humidity supply chain hubs.
Boltless Precision Interlocks
Labor shortages and escalating installation costs across North America, Europe, and Australia have transformed racking design. Buyers demand fully boltless, interlocked clip connections that require no on-site welding or specialized equipment. Utilizing CNC-indexed progressive punching, modern medium duty shelving can be erected or reconfigured up to 45% faster than legacy bolted angle iron systems, slashing field commissioning overheads.
Cold-Formed High-Yield Q355B Steel
Supply chain decarbonization favors high-strength, thin-gauge structural cold-formed profiles over bulky hot-rolled sections. By utilizing 500 MPa yield-strength Q355B steel, structural engineers achieve equivalent load capacity with a 15–20% reduction in deadweight. This lighter tare weight translates directly into reduced ocean freight shipping costs, greater container cube utilization, and lower embedded carbon per pallet position.
BIM & Digital Twin Project Modeling
Enterprise-scale EPC procurement requires immediate compatibility with Building Information Modeling (BIM) workflows. Prior to metal stamping, CAD layouts are rendered into parametric 3D models (Revit, STEP, IFC). This integration enables mechanical engineers, sprinkler contractors, and warehouse operators to verify clash-detection with building columns, HVAC conduits, and automated conveyor systems before container dispatch.
10-Stage Precision Manufacturing Workflow
From raw coil verification to export crating, HEDA Shelves enforces uncompromised process control across our 30,000 square meter production facility in Guangzhou.
Raw Materials
Certified Q235B/Q355B steel coils verified for tensile rating.
Steel Slitting
Automated CNC edge-shearing to precise strip widths.
CNC Punching
High-speed mechanical pressing for uniform 50mm hole pitch.
Cold Forming
16-stage continuous roll forming creates rigid upright profiles.
Beam Forming
Precision P-beam and step-beam seam locking and stamping.
Deburring
Automatic edge-radiusing prevents hand injury during picking.
Robotic Welding
CO2 shielded automated welding for high shear-strength joints.
Pretreatment
Acid pickling and phosphating removes oxides, boosting bonding.
Powder Coating
Electrostatic epoxy spray baked at 200°C for impact resistance.
QC & Packing
CMM tolerance checks, pallet bundling, and export loading.
Internationally Certified Racking Production
Global warehouse projects cannot risk structural collapse or safety inspection failures. HEDA Shelves maintains third-party audited certifications with publicly verifiable registration serial numbers.
- CE Certification (EN 1090 / CPR) Reg. No. 2435-CPR-8605159
- ISO 9001:2015 Quality Management Reg. No. 18624Q00169R0M
- RoHS Chemical Directive EU Compliant Non-Toxic Coating
Our production strictly aligns with European Federation of Materials Handling (FEM 10.2.02) and Rack Manufacturers Institute (RMI MH16.1) structural standards.
Why Global Importers Partner with HEDA Shelves
Combining advanced Chinese manufacturing economy-of-scale with seasoned engineering consulting, we deliver end-to-end reliability for enterprise storage projects.
20+ Years Track Record
Two decades of dedicated structural racking development across 120+ export countries and 10,000+ completed installations.
Complimentary CAD Design
Our in-house structural engineers prepare 2D layout drawings, 3D parametric renderings, and load calculations within 24 hours.
Structural Reliability
Continuous factory batch testing, ultrasonic weld inspection, and 100% pre-assembly mockups guarantee zero on-site bolt misalignment.
Bespoke OEM/ODM
Tailored upright perforation profiles, private labeling, custom RAL electrostatic colors, and custom container pack bundling.
Frequently Asked Questions by Industrial Buyers
Critical engineering, structural safety, compliance, and logistics questions answered by our chief storage design engineers.
QWhat differentiates Medium Duty Racking from standard Light Shelving and Heavy Pallet Racks?
Medium duty racking is structurally optimized for uniformly distributed loads (UDL) of 200 kg to 800 kg per beam level. Unlike boltless light shelving (limited to 50–150 kg with thin pressed angle posts), medium duty systems utilize cold roll-formed upright columns (e.g., 55×47mm to 75×60mm) and stepped P-beams with welded safety claws. Unlike heavy-duty selective pallet racks (designed for 1000–4000 kg forklift loading), medium duty systems prioritize manual hand-loading, narrow aisles, and smaller footings, offering a drastically lower price-per-square-meter while maintaining a structural safety factor of 1.5 to 1.65.
QHow is the Uniformly Distributed Load (UDL) verified and tested?
We compute beam flexure and column capacity in strict accordance with FEM 10.2.02 and ANSI MH16.1. UDL assumes the weight of cartons, bins, or components is evenly distributed over the entire clear span between beam connectors. Under maximum rated test loads, vertical beam deflection cannot exceed L/250 (or L/200 depending on client spec). Destructive physical load testing is executed by our QA department using calibrated hydraulic press plates and sandbag weights held for 24 hours to ensure zero permanent plastic deformation.
QWhat OEM/ODM customizations are available for distributors and brands?
Our OEM/ODM capabilities encompass every component parameter: (1) Custom Column Punching: Teardrop, butterfly, or hex-hole patterns tailored to fit your legacy inventory; (2) Bespoke Dimensions: Clear spans up to 2700mm, frame depths from 400mm to 1200mm, and column heights up to 6000mm in single-piece cold rolls; (3) Surface Finish & Branding: Any RAL color code applied via automated powder lines, silk-screened client logos on beam faces, and customized export shipping cartons featuring your brand barcode labels.
QHow do you protect components against coastal shipping corrosion and tropical humidity?
Corrosion protection begins with our 8-stage chemical pretreatment line: degreasing, acid pickling to eliminate mill scale, rinsing, and chemical phosphating/nano-passivation. This ensures total mechanical bonding for our electrostatic thermoset epoxy-polyester powder. Cured at 180°C–200°C, the resulting dry film achieves a uniform thickness of 60 to 90 microns with cross-hatch adhesion meeting ISO 2409 Class 0. For extreme applications (e.g., outdoor marine terminals or cold storage facilities), we provide hot-dip galvanizing (HDG) to ASTM A123 standards.
QWhat information is needed to produce a free engineered CAD layout and quotation?
To deliver an accurate 24-hour engineering layout, our team requires: (1) Warehouse architectural drawings or clear internal dimensions (length, width, clear height under trusses); (2) Column grid locations, dock door positions, and building obstacles (HVAC ducts, electrical risers); (3) Specific carton or SKU unit dimensions (W × D × H) and gross weights; (4) Required number of shelf levels and picking style (manual, step-ladder, order picker); and (5) Regional seismic zone requirements if applicable.
QCan medium-duty shelving be converted into a multi-tier mezzanine floor later?
Yes, provided the upright columns and footplates are pre-engineered for the ultimate cumulative axial load. If you plan a future mezzanine expansion, our engineers will specify heavier upright sections (e.g., 75×60×2.0mm or 90×70×2.0mm) during Phase 1. When you are ready for Phase 2, primary I-beams, cold-formed C/Z floor joists, galvanized bar grating, safety handrails, and industrial access staircases can be bolted directly to the existing upright framework without tearing down your operational storage bays.
QHow are container shipments packed to optimize ocean freight volume and prevent damage?
Ocean freight represents a major proportion of landed equipment cost. We engineer nested strapping protocols to maximize 40ft High Cube (40HQ) container utilization up to 95–98% cubic efficiency (typically 24 to 26 metric tons of steel per container). Upright frames are palletized horizontally with protective corrugated spacers; beams are bundled with steel strapping and edge-protectors; shelf panels are boxed in heavy-duty wooden crates or steel-banded pallets with waterproof shrink wrap to prevent in-transit scratching or moisture condensation.
QWhat is the standard production lead time and international delivery terms?
Standard production lead time for standard medium-duty racking systems is 15 to 20 working days for 1 to 5 container loads upon CAD approval and deposit receipt. Fully custom OEM roll-forming dies require an additional 10 days for tooling calibration. We ship under Incoterms 2020: FOB Guangzhou/Shenzhen, CIF, CFR, or DDP directly to your local logistics hub. All shipments include full export documentation: Bill of Lading, Certificate of Origin (Form E, Form A, or standard CO), Packing List, Commercial Invoice, and Structural QC Inspection Certificates.
Accelerate Your Storage Project with Direct Factory Engineering
Partner with Guangzhou Heda Shelves Co., Ltd. for factory-direct OEM/ODM pricing, certified structural reliability, and turnkey engineering assistance. Speak directly with a senior structural racking engineer now.
