High-Density Storage Configurations & Pallet Systems
Explore heavy-load industrial storage assemblies, semi-automated retrieval frameworks, and multi-tier structural steel racking manufactured directly for tier-1 3PL, FMCG, cold storage, and heavy distribution facilities.
Comparative Structural Typologies in High-Density Warehouse Design
Maximizing volumetric cubic efficiency without compromising floor slab loading, cyclic turnover dynamics, and material handling vehicle safety. Review our comparative engineering baseline before locking system specifications.
| Racking Topology | Volumetric Cubic Gain | Selectivity Index | Stock Rotation Logic | Forklift / Carrier Compatibility | Typical CapEx / Pallet Position |
|---|---|---|---|---|---|

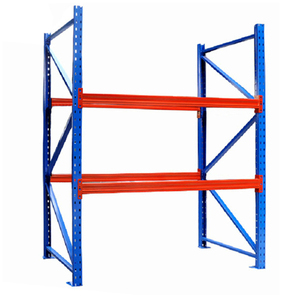

| Selective Pallet Racking | Baseline (40–45%) | 100% Direct (Immediate) | FIFO / LIFO Adaptive | Counterbalance, Reach Truck, VNA | Lowest Entry |
| Drive-In / Drive-Thru | 65% – 75% Footprint Reduction | Low (Lane-Restricted) | LIFO (Drive-In) / FIFO (Drive-Thru) | Standard Counterbalance with Mast Guard | Economical High-Density |
| Radio Shuttle Cart System | 75% – 85% Cubic Optimization | Medium-High (Lane Controlled) | Software Switchable FIFO / LIFO | Standard Forklift at Bay Face + Auto Shuttle | Moderate (High ROI) |
| Push-Back (Carts / Rollers) | 55% – 65% Footprint Reduction | Medium (2–6 Deep Lanes) | Strict LIFO Gravitational | Universal Reach / Counterbalance | Intermediate Mechanical |
| Gravity Pallet Flow Racking | 70% – 80% High Throughput | High across Lane Fronts | Strict Dynamic FIFO (Zero Aging) | Dedicated Loading & Unloading Aisles | Premium Flow Track |
| AS/RS Automated High-Bay | 85% – 95% Vertical Airspace | 100% Computerized Robotic | Dynamic Algorithmic (WCS/WMS) | Automated Stacker Crane / Rail Transporter | Capital Intensive Automated |
Euler-Buckling Resistance
Uprights are cold-formed with multi-faceted omega profiles with complex return bends. This increases the cross-sectional moment of inertia, dramatically resisting torsional and axial Euler buckling under continuous live loads up to 30,000 kg per frame.
Connector Joint Rigidity
Our interlocking box beam connectors feature 3, 4, or 5 drop-forged claw lugs. Combined with high-grade carbon steel retention pins, they create semi-rigid frame-to-beam moment connections compliant with EN 15512:2020 limit state testing.
Seismic Dampening Layout
Custom bracing layouts incorporating K, X, and inverted V-bracing networks. Seismic base footplates disperse instantaneous shear loads during dynamic earthquakes, calibrated against site-specific PGA (Peak Ground Acceleration) geotechnical surveys.
Cold Chain Cryo-Metallurgy
Sub-zero structural steel formulated with controlled silicon and manganese chemistry prevents brittle transition temperatures down to -35°C. Hot-dip galvanizing and low-temperature polyester powder prevent micro-cracking and galvanic corrosion.
Guangzhou Heda Shelves Co., Ltd.: Integrated Manufacturing Prowess
Operating since 2001 across a dedicated 30,000 square meter intelligent manufacturing plant in Guangzhou, South China. Backed by 300+ structural engineers, precision tooling specialists, and rigorous QA inspectors supplying enterprise intralogistics worldwide.
Metallurgical Slitting & Punching
Coils of certified prime Q235B and Q355B structural steel undergo strict ultrasonic gauge verification. High-speed progressive CNC punch presses stamp 50mm, 75mm, or teardrop pitch patterns with 0.05mm positional repeatability.
Multi-Stand Cold Roll Forming
Continuous 22 to 28-station roll forming lines shape complex upright sections and interlocking box beams without induced micro-fractures, maximizing residual cold-worked tensile yield across all load-bearing flanges.
Robotic Welding & Pretreatment
Automated 6-axis robotic welding cells attach beam connector claws with 100% penetration weld fillets. Components enter a rigorous automated 5-stage hot spray pickling and zinc-phosphating tunnel to eliminate mill oils and scale.
Electrostatic Powder & Palletizing
Swiss Gema electrostatic powder coaters deposit 70–90µm DFT of heavy-duty thermoset resin cured at 200°C. Finished beams and frames are bundled with protective corrugated cushioning and steel banding designed for 40HQ export loading.
Audited International Credentials & Verification
Procurement transparency is fundamental to risk mitigation. Guangzhou Heda Shelves Co., Ltd. holds fully traceable certifications including CE Certification No. 2435-CPR-8605159 (EN 1090-1 execution of steel structures), ISO 9001:2015 Quality Management Certificate No. 18624Q00169R0M (valid through 2027), and verified RoHS hazardous substance compliance. Every production lot ships with complete Mill Test Certificates (MTC 3.1) and beam deflection validation data.
Procurement & Technology Trends in High-Density Storage (2025–2030)
Enterprise logistics hubs are transforming from passive steel racks into high-throughput cyber-physical nodes. Incorporate these four foundational procurement criteria into your multi-year warehouse lifecycle planning.
Autonomous Mobile Robot (AMR) Interfacing
Traditional static drive-in bays are being upgraded to hybrid layouts with lower ground-level tunnels configured for visual QR and SLAM laser-guided AMR pallet carriers. Frame ground clearances and leg protection must be engineered for sub-millimeter AGV positioning sensors.
IoT-Enabled Deflection & Impact Monitoring
Smart upright sensors embedded inside critical aisle corners record forklift collision impulses and structural beam live deflections. Procurement contracts increasingly require pre-slotted upright geometries compatible with non-invasive digital vibration and shear telemetry transponders.
Decarbonized Cold Chain High-Bay Densification
With escalating cold-storage refrigeration power costs, operators demand taller vertical bay constructions (14m to 24m) utilizing multi-deep 4-way radio shuttles. Maximizing the cubic volume utilization directly decreases total BTUs required per pallet stored, cutting operational scope 2 emissions.
Circular Modular Architecture
Warehouse lease cycles are compressing. Global buyers increasingly favor standardized, demountable beam-to-frame connections that allow 100% modular re-profiling from selective storage to push-back or gravity flow arrays without cutting, onsite field welding, or structural recertification fees.
Total Cost of Ownership (TCO) & Landed Freight Engineering
For international supply chain managers and project general contractors, the ex-factory quotation is only one component of landed financial efficiency. HEDA engineering optimizes the entire project expenditure equation.
Container Stuffing Efficiency
Uprights are manufactured with nested nesting profiles, and beams are packaged on purpose-built steel cradles. This achieves up to 26,000 kg container payload density in standard 40ft High Cube containers, minimizing the ocean freight surcharge per pallet slot.
Installation Time Optimization
All framework components arrive factory pre-punched, precision-indexed, and numerically labeled. Clear CAD erection schematics and bolt-together diagonal splice sleeves reduce on-site mechanical erection labor hours by up to 35% compared to non-standardized systems.
Slab Load Dispersion Calculations
Inadequate baseplates risk concrete punch failure. Our civil engineers supply comprehensive slab bearing pressure analysis (kN/m²) and specify chemical resin expansion anchors, matching your facility's specific slab reinforcement and concrete PSI ratings.
Long-Term Structural Integrity
Heavy zinc phosphate pretreatments, anti-abrasion powder coatings, and heavy-gauge structural steel column protectors safeguard high-traffic corners from lift truck strikes, significantly lowering lifetime rack repair, beam replacement, and inspection downtime costs.
Frequently Asked Questions: Global Pallet Racking Sourcing
Direct technical guidance from our senior structural and export engineering team covering load specifications, certifications, installation, and custom OEM capabilities.
Accelerate Your High-Density Warehouse Project
Connect directly with our senior structural intralogistics engineers. Submit your warehouse architectural layout today for a complimentary 2D CAD floor plan, 3D rendering, and comprehensive container-landed project quotation within 24 hours.
