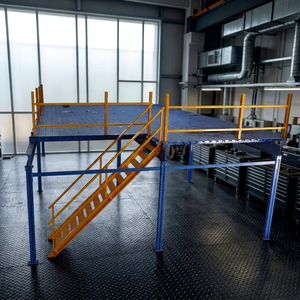

Industrial Double Mezzanine Floor System
Heavy structural multi-tier platform doubling overhead volumetric floor usage. Features custom steel grating, stairways, safety handrails, and pallet loading zones.
Collapsible Steel Wire Mesh Container
Foldable high-tensile wire mesh pallet cages engineered with electro-galvanized rust protection. Self-stacking 4 layers high under full rated operating capacity.
Industrial Steel Pallet Racking System
Heavy-duty omega upright frames with reinforced connector brackets and high safety factors. Designed for selective single/double-deep forklift operations.
Smart Sheet Metal High Density Storage
Automated cassette retrieval system interfaced with industrial loading robots and PLC controls. Eliminates steel plate deformation while minimizing aisle floor footprint.

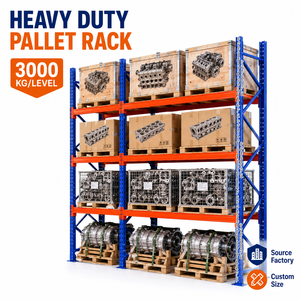

3000KG Heavy Duty Pallet Storage Rack
Four-level heavy cargo configuration with twin-welded box beams, structural safety locking pins, and optional drop-in wire decking for mixed carton/pallet loads.
Custom Adjustable Warehouse Shelving Unit
OEM-customized longspan shelving units with adaptable 50mm vertical step adjustments. Built with epoxy powder-coated cold-rolled sheet steel for long-term corrosion immunity.

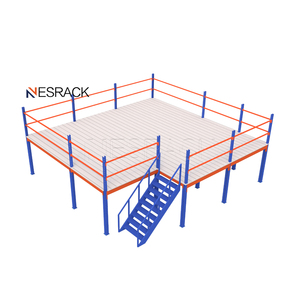

Heavy Duty Mezzanine Platform with Stairs
Freestanding column-supported structural platform integrating heavy-duty main beams, secondary joists, anti-skid floor decking, and kickplates for industrial multi-tier work zones.
Key Procurement Trends Shaping Industrial Racking (2025–2030)
Supply chain leaders, industrial architects, and 3PL procurement executives are fundamentally re-evaluating capital expenditure (CapEx) in warehouse racking. The shifting landscape demands systems that adapt to automation, reduce thermal loss, and lower total lifecycle ownership costs.
1. AGV/AMR Autonomous Interfacing
Traditional static forklift aisles are transitioning to hybrid zones accommodating Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Procurement specifications now mandate millimeter-level upright tolerances, ultra-flush baseplates, and specialized floor-level sensor-reflective optical targets.
- Tight column deflection limits under dynamic AGV stops
- Standardized barcode and LiDAR reflector integration
2. High-Density Cold-Chain Expansion
Global perishables, vaccine biopharma, and quick-commerce food logistics are driving deep cold-room development (-25°C to -35°C). Because cooling cubic meters is 400% more power-intensive than ambient storage, procurement is heavily favoring Radio Shuttle and Drive-In systems that eliminate picking aisles.
- Sub-zero ductile steel selection (Q355D / low embrittlement)
- High-grade thermal hot-dip galvanization for frost heave
3. Dynamic Load Telemetry & Structural Health Monitoring
Modern mega-fulfillment operators are beginning to demand smart racking equipped with embedded strain-gauge sensors and ultrasonic impact transducers on critical base uprights. This provides real-time alerts when forklift collisions occur or when safe working loads (SWL) are accidentally exceeded.
- Automated damage detection connected to warehouse management systems (WMS)
- Continuous finite-element structural health monitoring
4. Carbon-Neutral Fabrication & Circular Demountability
Corporate ESG mandates require supply chain infrastructure to account for Scope 3 emissions. Racking procurement contracts now evaluate life-cycle carbon footprints, prioritizing electric arc furnace (EAF) low-carbon steel, solvent-free electrostatic powder, and 100% reusable demountable boltless joints.
- Recyclable structural steel profiles without toxic chromates
- Modular designs adaptable to facility relocations
5. Multi-Standard Regional Harmonization
Global supply chains require racking systems that effortlessly accommodate mixed pallet standards: Euro-pallets (800x1200mm), ISO standard (1000x1200mm), North American GMA (48x40"), and Asian (1100x1100mm). Custom OEM fabricators must deliver multi-depth stepped beam geometry that prevents undershoot hazards.
- Universal drop-in pallet support bars with flush seating
- Dual-position lock pins supporting varied center distances
6. Container-Optimized Modular Freight Architecture
With global ocean freight costs fluctuating, racking manufacturers are re-engineering profile nesting geometry. Uprights, frame bracings, and step box beams are precisely designed to achieve >95% spatial utilization inside standard 40-foot High Cube (40HQ) ocean containers, slashing landed unit costs.
- Flat-pack knocked-down (KD) upright frame bundling
- Direct factory stuffing with marine-grade strapped protection
Structural Mechanics, Steel Metallurgy & Cold-Roll Forming
Warehouse racking is not simply steel shelving; it is an unbraced or semi-braced slender structural steel frame subjected to high dead loads, severe dynamic fork truck impacts, and seismic vibrations. Selecting the appropriate steel chemistry and cold-roll forming profile directly determines warehouse safety margins and prevents catastrophic progressive rack collapse.
| Steel Grade Standard | Yield Strength (ReH Min) | Tensile Strength (Rm) | Elongation (A50 Min) | Ideal Racking Application Zone |
|---|---|---|---|---|
| Q235B (GB/T 700) / SS400 | 235 MPa | 370–500 MPa | 26% | Medium-duty shelves, baseplate footings, cross bracing, pallet spacer ties. |
| Q355B (GB/T 1591) / S355JR | 355 MPa | 470–630 MPa | 22% | Heavy-duty upright columns (100–120mm profile), twin-roll box beams, structural mezzanines. |
| ASTM A572 Grade 50 | 345 MPa (50 ksi) | 450 MPa (65 ksi) | 21% | North American export specification for seismic zone 3 & 4 high-bay distribution hubs. |
| EN 10025-2 S355MC | 355 MPa | 430–550 MPa | 19% | Automated cold-roll forming with complex multi-bend omega upright geometry. |
10-Stage High-Durability Surface Pretreatment & Finishing
For operations in humid coastal environments, pharmaceutical cleanrooms, or high-throughput distribution hubs, standard spray paint fails within months. HEDA Shelves employs a continuous 10-stage immersion and electrostatic powder coating line that exceeds 500 hours of neutral salt spray testing (ASTM B117).
01. Chemical Degreasing
Hot alkaline immersion bath removing all rolling mill oils, stamping lubricants, and shop grease from steel pores.
02. Acid Pickling Bath
Hydrochloric acid bath eliminating surface oxidation, rust patches, and scale, ensuring raw virgin metallurgical bonding.
03. Zinc Phosphating
Micro-crystalline conversion layer creating high-adhesion microscopic anchor points on upright and beam steel surfaces.
04. Electrostatic Spray
Automated reciprocal spray guns applying 60–80 micron high-crosslink polyester resin powder at 80,000V charge.
Frequently Asked Questions by Industrial Procurement Teams
Key technical, structural, and contractual questions evaluated by supply chain vice presidents, structural engineering consultants, and commercial facility managers before issuing procurement awards.
Under international design standards (RMI ANSI MH16.1 in North America and EN 15512 in Europe), the maximum permissible deflection of a pallet rack beam under design load is L/200 (where L is the clear span distance between upright columns). For sensitive automated picking or AS/RS installations, conservative engineers specify L/300 to prevent automated crane optical sensors from misidentifying pallet pocket elevations.
Warehouse racking transfers extreme point loads through the upright baseplate into the concrete slab. We calculate punch shear stress and floor bearing pressure based on your slab thickness (typically 150mm to 250mm), reinforcement mesh diameter, and concrete compressive strength (such as C25/30 or 3,000–4,000 PSI). Where slab ratings are lower, our engineering team custom-sizes enlarged 10–16mm thick baseplates with twin-anchor configurations to distribute ground contact pressure evenly.
Every export project delivered by Guangzhou Heda Shelves Co., Ltd. includes our third-party audit credentials: CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management Certificate No. 18624Q00169R0M, raw material mill test certificates (MTC) certifying steel chemical and yield limits, full assembly drawings with piece-mark numbering, and professional structural calculation sheets signed by our chief structural engineer.
For high-humidity zones like South Asia, the Caribbean, and Southeast Asian coastlines, standard finishes can pit and peel. We employ an industrial 10-stage pretreatment cycle involving hot degreasing, acid rust-pickling, and dense zinc phosphating before curing pure polyester electrostatic powder at 180°C–200°C. For sub-zero blast freezers, outdoor yards, and chemical facilities, we provide components fabricated from pre-galvanized coils or full hot-dip galvanized (HDG) steel complying with ASTM A123.
Standard OEM fabrication lead time is typically 15 to 25 working days from final approved CAD drawings, depending on project steel tonnage. Our dedicated logistics engineers run computerized 3D container packing simulations to ensure maximum cubic efficiency (often achieving over 62 cubic meters in a 40HQ container). Upright frames are nested, beams are strapped into balance-lift packs with dunnage, and small hardware is crated to ensure swift, damage-free offloading by site telehandlers.
Yes. We supply comprehensive bilingual CAD erection drawings, 3D step-by-step assembly diagrams, and high-definition video walkthroughs that enable local general contractors to erect racking smoothly. For large-scale multi-tier mezzanine floors or regional logistics centers exceeding 10,000 pallet positions, HEDA Shelves routinely dispatches senior field installation supervisors to conduct alignment checks, anchor torque audits, and plumbness verification.
