High-Performance Longspan Shelving & Industrial Storage Solutions
Customized for e-commerce fulfilment hubs, distribution centers, industrial spare part archives, and hypermarkets requiring modular payload versatility between 300 kg and 1,000 kg per shelf level.

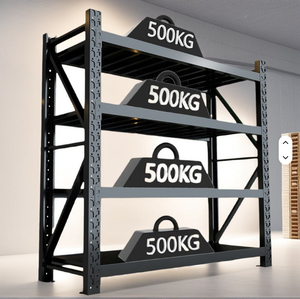

Mracking Industrial Light Duty Durable Steel 5 Adjustable Snap-In Storage Racks Longspan Shelving Powder Coating Garage
Integrated Heavy Duty Metal Shelving for Hypermarket Combined Racking and Shelving in Hypermarket
Custom 300-800kg Light Medium Heavy Duty Steel Adjustable Long Span Shelving Easy Assembly Industrial E-commerce Warehouse Shelf
Long Span Multi-Function 5-Layer Steel Display Rack Heavy Duty Adjustable Features Durable Anti-Rust 500-800kg Capacity Wide Use
Warehouse Long Span Racking Steel Storage Racks Display Garage Shelves
Long Span Shelving System Heavy Duty Steel Storage Rack for Warehouse Picking

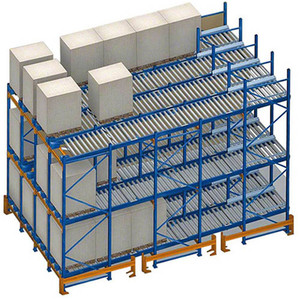

Gravity Pallet Racking High Quality Heavy Duty Roller Pallet Rack for Sale
Grids For Food Industry Commercial Bakery Equipment Metal Wire Rack System
Engineering Rigor & Selection Calculus for Industrial Longspan Shelving
An architectural and metallurgical breakdown for procurement directors, logistics engineers, and warehouse operations specialists.
In contemporary logistics architecture, intermediate-load manual picking operations occupy an increasingly strategic node between palletized high-bay bulk reserves and high-velocity micro-fulfillment picking loops. Longspan shelving systems—commonly termed wide-span or medium-duty industrial shelving—serve as the core structural foundation for handling non-palletized inventory, loose totes, irregular automotive assemblies, carton flow buffers, and retail case goods. When evaluating custom OEM manufacturing partners for enterprise-scale racking deployments, procurement decision-makers must look past superficial paint coatings and evaluate structural rigidity, cold-roll metallurgical consistency, beam-to-frame locking moment resistance, and verified load deflection thresholds.
Industrial longspan shelving manufactured at our facility is designed strictly adhering to international cold-formed thin-gauge structural standards, including EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design) and the Rack Manufacturers Institute (RMI) ANSI MH16.1 specifications. The selection of the steel substrate is fundamental: we process prime certified cold-rolled coils (predominantly Q235B and high-yield Q355B structural micro-alloyed carbon steels). With yield strengths exceeding 235 to 355 MPa and controlled elongation parameters above 21%, these profiles eliminate brittle fracture risks under extreme cyclic dynamic loadings or accidental operational impacts by manual handling equipment.
Choosing the correct structural profile within our custom OEM line depends on unit SKU characteristics, picking methodology, and the physical warehouse environment:
Tier 1: High-Density E-Commerce Fast-Pick
Recommended: Custom 300–800kg Long Span Shelving outfitted with solid galvanized steel drop-in shelves or recessed wire mesh decks. Engineered with a 50mm vertical adjustability pitch, this configuration adapts seamlessly to fluctuating carton cube volumes while facilitating pick-to-light (PTL) sensor retrofits along the step beam ledge.
Tier 2: Automotive Parts & Irregular SKUs
Recommended: Heavy-Duty Adjustable 5-Layer Rack paired with full-depth divider plates, rear containment wire mesh screens, and front hanging rods. Optimized for dense mechanical spare components, exhaust pipes, and loose castings with concentrated loads up to 1,000 kg per level supported by structural P-beam stiffeners.
Tier 3: Cash & Carry Hypermarket Integration
Recommended: Combined Hypermarket Racking & Shelving. Merges structural pallet storage at upper elevations (up to 3,000 kg pallet capacity) with accessible longspan manual picking at eye level. Features aesthetic anti-scratch powder coatings, custom corporate branding end-caps, and integrated price-channel beams.
OEM Engineering Parameters & Structural Tolerances
Standard and custom profile dimensions available for direct factory roll-forming and custom fabrication.
| Structural Component | Standard Profile Geometry | Material Specification | Load Rating (UDL) | Standard Surface Finish |
|---|---|---|---|---|
| Omega Upright Column | 55×47mm, 60×50mm, 75×60mm (t=1.5–2.0mm) | Q235B / Q355B Cold-Formed | Frame capacity up to 6,500 kg | Pre-treated electrostatic thermoset powder (60–90μm) |
| Step Beam / P-Beam | 50×30mm, 60×40mm, 80×50mm (t=1.5–2.0mm) | High-Tensile Cold Rolled Strip | 300 kg – 1,000 kg / level pair | High-adherence RAL 2004 Pure Orange / Custom RAL |
| Steel Shelf Decking | Segmented box panels (0.7mm, 0.8mm, 1.0mm) | SPCC Cold-Rolled Carbon Sheet | Up to 1,000 kg UDL per bay | Electrostatic RAL 7035 Light Grey / Pre-Galvanized |
| Wire Mesh Decking | 50×50mm, 50×100mm grid (wire dia 4.0–5.5mm) | Low-Carbon Drawn Steel Wire | 300 kg – 1,200 kg UDL | Hot-Dip Galvanized / Bright Zinc Electroplate |
| Footplates & Anchors | 100×100×4mm stamped structural base | Hot-Rolled Structural Steel Plate | Seismic Zone 1–4 Compliant | Heavy Zinc Plated (Class 8.8 expansion wedge bolts) |
Future Procurement Trends in Industrial Storage (2026–2030)
How macro supply chain dynamics, carbon accountability, and omnichannel operations are altering contract structures and vendor qualification.
The procurement of industrial storage infrastructure has evolved decisively from transactional, spot-bid commodity purchases into high-stakes capital expenditure (CapEx) partnerships. Over the 2026–2030 horizon, forward-looking procurement leaders must position their balance sheets and supply chains against three decisive structural trends:
1. Direct-from-Source OEM Disintermediation: For decades, international enterprise buyers relied upon tiered domestic distributors and regional brokers to source warehouse shelving. However, escalating warehousing rent and thin fulfillment margins have rendered the typical 25% to 40% distributor markup economically unviable. Procurement groups are now bypassing middlemen to contract directly with vertically integrated manufacturers possessing proprietary tooling lines, dedicated automated stamping lines, and automated powder coating plants. Direct OEM engagement yields substantial cost compression on landed cost-per-bay while guaranteeing that structural engineering calculations, mill test certificates (MTCs), and factory quality control checksheets are directly audited without third-party communication buffers.
2. ESG Compliance & Embodied Carbon Accounting (Scope 3): Environmental, Social, and Governance (ESG) mandates—prominently the European Union's Carbon Border Adjustment Mechanism (CBAM) and corporate Scope 3 greenhouse gas reporting—are transforming structural steel procurement. Industrial buyers now demand cradle-to-gate environmental product declarations (EPDs) from steel processing mills. Sourcing from our facility ensures complete environmental accountability: our pre-treatment washing loops feature zero-discharge water recycling, non-toxic zirconium-based or zinc-phosphate conversion chemistries that completely eliminate hazardous heavy metal residues, and heavy-metal-free thermosetting polyester powders with zero volatile organic compound (VOC) emissions.
3. Modular Interchangeability & Circular Asset Reusability: Fixed, single-purpose warehouse storage assets represent severe balance sheet liabilities. Modern 3PL providers managing short-term (1 to 3-year) fulfillment contracts demand longspan shelving systems designed for rapid demountability, reconfiguration, and multi-tier mezzanine adaptability. Rather than welding static connections, future-proof procurement specifications demand standardized 50mm hole patterns on vertical uprights, claw-to-column snap-in interfaces secured by spring-loaded safety retention pins, and pre-punched mounting slots that allow standard longspan frames to serve directly as structural support columns for walkable mezzanine floors or vertical carton flow chutes.
Technological Advancements in Storage Frame Engineering
Finite element optimization, automated roll-forming precision, and composite corrosion mitigation technologies.
The manufacturing of longspan shelving has transitioned from empirical craft techniques into advanced digital engineering. Our engineering R&D center continuously incorporates cutting-edge structural technologies that maximize payload capacity while optimizing the weight of raw steel consumed:
Finite Element Analysis (FEA) Profile Optimization: Traditional C-channel or basic tubular uprights suffer from localized torsional-flexural buckling under non-uniform manual loading conditions. By utilizing advanced ANSYS non-linear finite element modeling, our engineering team developed proprietary multi-bend "Omega" upright profiles featuring up to 8 structural stiffening facets. These cold-rolled return ribs displace the shear center outward, boosting Euler buckling resistance by up to 28% compared to conventional 4-bend uprights of identical material gauge. This enables customers to utilize 1.5mm gauge frames where competitor systems require 2.0mm steel, reducing overall structural weight and international container shipping freight charges.
Continuous Automated CNC Roll-Forming Lines: Dimensional variance is the single largest cause of racking installation failure on large sites. When hole punching deviates by as little as 0.5mm across a 6-meter vertical upright, shelf leveling errors compound exponentially. Our production lines deploy continuous CNC uncoiling, multi-station hydraulic punching presses with laser-guided optical center tracking, and tandem roll-forming lines running at up to 25 meters per minute. The resulting pitch accuracy is maintained within a strict tolerance of ±0.1mm per linear meter, guaranteeing rapid, effortless on-site assembly without binding or forced hammer deflection.
Next-Generation Hybrid Corrosion Barriers: While conventional indoor warehousing environments have traditionally utilized standard epoxy powder finishes, the rapid expansion of supply chains into tropical, high-humidity, and coastal port corridors (such as Nhava Sheva, Chattogram, Karachi, and Colombo) demands superior anti-corrosion chemistry. Our dual-layer protection workflow combines an automated multi-stage hot immersion degreasing, pickling, and phosphating pre-treatment with automated electrostatic corona-discharge powder deposition. Cured at 200°C in clean natural-gas baking tunnels, our coatings achieve cross-hatch adhesion ratings of 0 (ISO 2409 / ASTM D3359) and withstand in excess of 500 hours of continuous neutral salt spray testing (ASTM B117) without film blistering, flaking, or creep.
Why Global Supply Chains Partner with Guangzhou Heda Shelves
Over 25 years of end-to-end manufacturing, engineering governance, and global container logistical delivery.
30,000 m² Mega Manufacturing Base
Founded in 2001, our specialized production facility in Guangzhou houses fully integrated lines: automated steel slitting, precision CNC punching, roll-forming mills, robotic welding cells, and high-capacity dual-track powder coating lines delivering over 30,000 metric tons of steel shelving monthly.
Verifiable International Accreditations
Unlike uncertified small fabricators, our quality management systems and factory floor operations are independently certified under CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management No. 18624Q00169R0M (valid through 2027), and strict hazardous substance RoHS compliance.
Full OEM/ODM Engineering & CAD Design
With a senior engineering team of 300+ technical specialists, we provide complimentary 24-hour CAD layout planning, 3D parametric warehouse simulations, structural stress checks, custom punch-die tool fabrication, and private-label embossing for global racking brands and brand distributors.
Export Proven Across 120+ Countries
With more than 10,000 executed warehouse storage projects worldwide, we specialize in high-density container stuffing optimization (20GP, 40GP, 40HQ) that prevents ocean transit abrasion and minimizes freight per unit. Dedicated port shipping routes to JNPT, Mundra, Chennai, Karachi, Chittagong, and European hub ports.
Frequently Asked Questions by Industrial Sourcing Teams
Essential technical, logistical, and commercial guidelines for contract managers and structural engineers.
What is the structural difference between Longspan Shelving and Pallet Racking?
While both systems utilize cold-rolled vertical upright frames and horizontal interlocking beams, longspan shelving is explicitly engineered for manual picking and hand-loaded items with intermediate payloads typically ranging between 300 kg and 1,000 kg per beam level. The beams feature built-in inner steps designed to accept steel drop-in shelves, chipboard, or wire decking flush with the beam profile. Pallet racking is engineered with heavier profiles (up to 120mm upright faces) to support forklift-handled pallet units weighing 1,000 kg to 4,000 kg per tier.
How does HEDA Shelves verify load capacities before dispatch?
All structural load figures are certified through a dual-gate testing protocol. First, beam and frame sections are modeled under non-linear Finite Element Analysis (FEA) simulating asymmetrical loading, beam end connector shear, and vertical column buckling. Second, production samples undergo hydraulic universal testing press trials in our in-house QC laboratory, where actual frames and beam assemblies are loaded to 1.5 times nominal capacity (1.5 safety factor according to EN 15512 / FEM standards) to verify zero yield failure.
Can you provide private label OEM manufacturing with custom punch hole designs?
Yes. We specialize in comprehensive OEM and ODM partnerships for regional shelving distributors, material handling dealers, and multinational racking brands. We routinely fabricate custom tooling dies for specialized upright hole punch profiles (including diamond-hole, teardrop, keyhole, and hexagonal patterns), integrate customized beam end-connector brackets, apply private corporate branding stamps on beam faces, and match precise RAL powder coating palettes.
What documentation and certifications accompany each shipment?
Every export container is accompanied by a certified Quality Dossier containing: Mill Test Certificates (MTC / EN 10204 Type 3.1) verifying the chemical composition and mechanical properties of raw steel coils; official CE Certificate of Conformity under CPR No. 2435-CPR-8605159; ISO 9001:2015 audit trails; electrostatic coating dry film thickness (DFT) inspection reports; and customized assembly drawings with numbered component packaging manifests for easy on-site installation.
How do you optimize container loading to prevent damage during sea transit?
Longspan upright frames are bundled in modular wooden runners with corrugated protective edging and heavy-duty plastic shrink-wrap to isolate metal-to-metal friction. Horizontal step beams are interlocked in custom timber cradles banded with high-tensile steel strapping. Shelf decking panels are strapped onto reinforced wooden pallets with corner angle protectors. Our logistics team simulates container loading in 3D CAD to maximize volumetric fill ratios (reaching 95%+ of 40HQ volume) while keeping the cargo center of gravity aligned for safe maritime handling.
What is the standard production lead time for full container load (FCL) orders?
For standard longspan configurations utilizing standard tooling profiles, typical factory turnaround is 12 to 18 calendar days following final CAD sign-off and deposit receipt. For complex customized OEM orders requiring custom punching dies, special shelf steel gauges, or non-standard RAL powder colors, lead times range from 20 to 25 calendar days. We also offer buffer stock replenishment programs for established global distribution partners.
Accelerate Your Storage Project with Direct Factory Engineering
Send your warehouse dimensions, SKU payload specifications, or architectural drawings. Our technical engineering division will generate a comprehensive 2D CAD layout, 3D structural visualizer, and line-item factory pricing proposal within 24 hours.
