LIFO Dynamics
Push Back Pallet Storage System
Precision-inclined rail and nested gravity cart architecture delivering high-density LIFO staging without forklift mast entry into racking bays.
Engineered Storage Portfolio
Enterprise-Grade Industrial Pallet Racking Series
Fabricated from certified structural Q235B and Q355B steel, each custom configuration undergoes computerized finite element stress analyses to guarantee sustained dynamic rigidity and international safety margins across cross-docking, deep-lane, and multi-tier picking hubs.

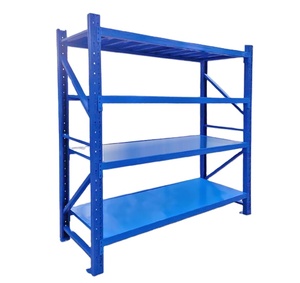

Heavy Selective
Heavy Selective Pallet Rack System
Unrestricted 100% pallet selectivity engineered for high-throughput distribution centers demanding flexible SKU access and rapid turnover.

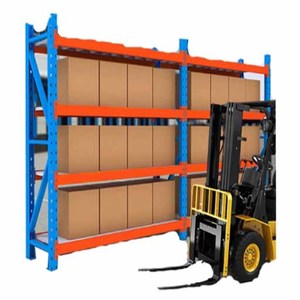

4000kg Payload
4000kg Heavy Industrial Steel Rack
Cold-roll-formed omega upright posts paired with closed box beams configured specifically for heavy machinery spares and bulk liquids storage.
Insulated FRP
Workshop Electrical Insulation FRP Rack
Non-conductive fiber-reinforced polymer composite construction engineered for high-voltage testing bays and corrosive chemical workshops.

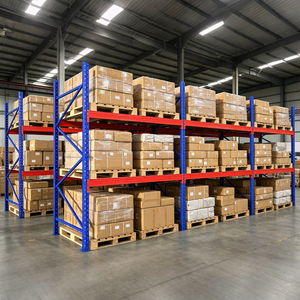

1T to 5T Scalable
Multi-Level 1T-5T Warehouse Rack
Heavy structural upright framing offering modular adaptability from 1000kg to 5000kg payloads per level for raw material manufacturing distribution.
Gravity FIFO
Movotec MTG100 Gravity Flow Rack
Speed-regulated roller track channels delivering continuous FIFO product rotation, ideal for high-throughput batch food manufacturing and cold stores.
Modular Medium
Customized Industrial Storage Shelving
Boltless clip-in cold rolled steel shelving system calibrated for quick assembly, parcel fulfillment hubs, and manual picking mezzanine decking.
Specialty Foldable
Foldable 6-Layer Sheet Metal Rack
Heavy-duty roll-out drawer and stackable cassette structure built to store metal sheets, tooling dies, and flat profiles with overhead crane accessibility.
25+
Years Engineering
Pioneering intralogistics since 2001
30,000m²
Production Complex
Automated CNC continuous roll forming
30,000T
Monthly Throughput
Rapid container-ready global staging
10,000+
Global Installations
Deployed across 120+ export territories
Fully Integrated OEM/ODM Fabrication
We maintain end-to-end mechanical control over precision uncoiling, computer-guided multi-hole punching, cold roll forming, robotic welding, and automated thermosetting powder coating. This guarantees that custom upright configurations, hook connectors, and load-bearing beam profiles seamlessly conform to exact engineering drawings.
Independently Certified Compliance
Structural reliability is validated through rigorous testing verified under CE certification (No. 2435-CPR-8605159), ISO 9001:2015 quality management infrastructure, and RoHS directives. Every structural batch undergoes yield tensile stress checks, weld seam non-destructive examination, and epoxy paint adhesion testing before export clearance.
Ocean Freight Consolidation Engineering
Heavy-duty industrial racking logistics demands precise freight optimization. Our specialized nesting patterns maximize volumetric packing density for 20GP and 40HQ ocean freight shipping containers. Bundled components are protected with moisture-barrier packaging, corner steel guards, and structural wood chocking to prevent transit fatigue.
Strategic Procurement Shifts: Sourcing Heavy Pallet Racking in 2026–2030
Industrial supply chains and global distribution hubs are experiencing a fundamental shift away from standardized off-the-shelf shelving toward application-tailored, precision-manufactured structural racking systems. Modern material handling environments demand that physical warehouse racks act not simply as static steel frames, but as mechanically unified substrates capable of integrating seamlessly with semi-automated shuttle carts, robotic vertical lifters, and advanced Warehouse Management Systems (WMS).
Enterprise procurement directors increasingly prioritize total landed lifecycle valuation (TCO) over raw ex-factory unit pricing. Racks deployed in coastal manufacturing hubs, refrigerated logistics centers, and seismic belts require distinct steel metallurgy and advanced surface chemistry. Consequently, procurement protocols now require verifiable certification trails, finite element design analyses accounting for local ground accelerations, and comprehensive structural impact tolerances.
Pre-Treatment Micro-Phosphating & Hybrid Epoxy Coatings
Multi-stage continuous acid pickling combined with electrostatic polymer curing prevents micro-fissuring and subsurface oxidation in sub-zero cold stores and tropical coastal humidity.
Standardized Interfaces for Robotic & AGV Material Handling
Custom-welded beam channels designed to host optical tracking strips, safety retroreflectors, and induction loops for automated guided vehicles and laser-guided turret trucks.
Multi-Standard Structural Engineering (EN 15512 & RMI ANSI MH16.1)
Mathematical verification ensuring dynamic deflection safety coefficients are preserved even during maximum horizontal mast braking loads and localized seismic stress.
Modular Knock-Down (KD) Architecture
Optimized interlocking upright and boltless connector interfaces that reduce container freight volume while expediting on-site erection times by up to 35%.
Technological Advancements Transforming High-Density Pallet Storage
The convergence of soaring urban industrial real estate costs and surging omni-channel fulfillment velocities has accelerated the adoption of dynamic vertical density systems. Where conventional selective racking historically yielded a 35% to 40% net warehouse cube utilization rate, modern high-density topologies routinely surpass 75% to 85% cubic space efficiency without compromising structural safety.
Key technological frontiers include the widespread deployment of Radio Shuttle racking lanes, where remote-controlled pallet runners traverse deep structural channels under computerized guidance. This configuration balances high inventory density with rapid FIFO or LIFO operational selectivity. Concurrently, advanced roll-forming lines allow manufacturers to engineer dual-flanged omega upright sections featuring higher strength-to-weight ratios, enabling distribution facilities to safely erect structural rack systems exceeding 24 meters in clear height.
Procurement Knowledge Base
Frequently Asked Questions for Global Buyers
Critical engineering, manufacturing, and international export criteria addressed by our senior logistics application engineering department.
Q
What essential warehouse specifications are required for an OEM racking engineering design?
To provide an accurate CAD layout and load matrix, our structural engineers require: (1) Architectural warehouse drawings indicating clear ceiling heights, column spans, dock locations, and floor flatnings; (2) Detailed pallet load parameters including outer dimensions (width, depth, height), total weight per pallet, and overhang tolerances; (3) Materials handling vehicle parameters (forklift model, minimum turning aisle clearance, and maximum reach height); (4) Local seismic zone classification and ambient temperature parameters (especially for refrigerated chambers).
Q
How does HEDA guarantee steel grade uniformity and dynamic load reliability?
We exclusively procure prime-grade Q235B and Q355B structural coil steel from certified tier-one steel mills. Mill test certificates are cross-checked per production heat batch. During fabrication, upright profile geometry, punching pitches, and robotic weld penetration are verified with continuous dimensional checks. Structural safety calculations align rigorously with international racking codes, including European EN 15512 standards and American RMI MH16.1 specifications.
Q
What surface treatments are applied to protect racking in extreme or corrosive environments?
Our manufacturing facility utilizes a comprehensive multi-stage surface finishing system. Steel components undergo alkaline degreasing, multi-rinse baths, acid pickling to eliminate scale, and automated zinc-iron phosphating. Subsequently, parts receive an electrostatic polymer polyester powder coat cured at 180°C–200°C. For deep-freeze facilities, exterior marine yards, or chemical containment zones, we engineer hot-dip galvanized profiles with zinc thicknesses exceeding 65–80 microns.
Q
What are the typical lead times for bespoke OEM/ODM multi-container container orders?
Standard OEM production cycles for medium-to-large project volumes (2 to 10 ocean containers) range from 20 to 30 calendar days upon structural drawing approval. For complex high-volume installations exceeding 500 tons, rolling production schedules are coordinated to align with sea container dispatch windows, ensuring a smooth installation sequence at your destination site without overburdening floor staging areas.
Q
How are oversized upright frames and pallet beams packed to avoid ocean transit damage?
Upright frames are bundled with protective structural timber separators and tightly strapped with composite steel bands to prevent transit racking. Beam connectors and hook ears are shielded with thick corrugated cushioning and protective plastic wrap. Small hardware items, anchor bolts, shim plates, and safety clips are packed in reinforced, palletized wooden crates. Every container is systematically load-balanced to avoid cargo shifting during transit.
Q
Does HEDA provide overseas on-site installation guidance and field supervision?
Yes. Every export shipment includes comprehensive mechanical installation manuals, component identification tags, and CAD assembly diagrams. Furthermore, we provide detailed video walkthroughs covering leveling, anchor torquing, and frame bracing. For major logistics hubs, high-bay structural mezzanines, or complex shuttle racking deployments, senior HEDA field engineers can be dispatched globally to provide on-site technical supervision, crew training, and commissioning.
