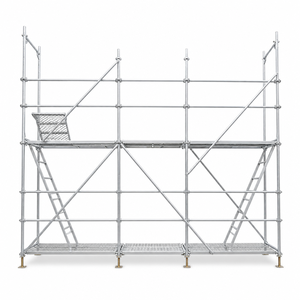

Galvanized / Alum
European Modern High Strength 500kg Multidirectional Warehouse Rack
- Load Capacity: 500 kg / level (rated)
- Finish: High-purity zinc/galvanized passivated
- Application: Corrosive, marine & semi-outdoor
30,000m²
Dedicated Production Facility
30,000Tons
Monthly Cold Steel Output
25+Years
Global Engineering Since 2001
10,000+Sites
Engineered Projects Delivered
Engineered Storage Portfolio
High-Performance Custom OEM Racking Systems
Built from premium Q235B and Q355B cold-rolled structural coil steel. Fully customizable load profiles engineered to FEM 10.2.02, RMI, and AS4084 international racking standards.
Galvanized / Alum
Stacking Rack

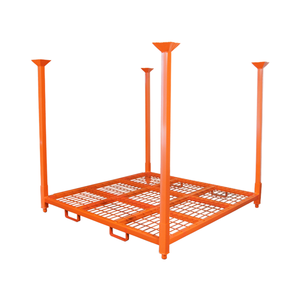

Mracking Corrosion-Protected Steel Stacking Racking Post Pallet System
- Stacking: 4 to 6 units vertical tier nesting
- Coating: 80μm electrostatic epoxy polymer
- Mobility: Modular demountable post design
ASRS Robotics

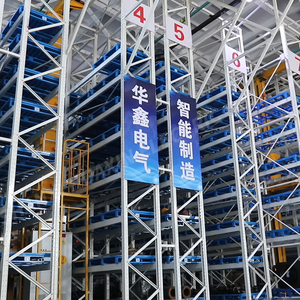

Smart Warehouse Robot Picking Automated Storage Retrieval ASRS System
- Tolerances: ±0.5 mm beam/upright punch accuracy
- Compatibility: Miniload, Stacker Crane, AGV/AMR
- Structure: Up to 30m high-bay automated design
Heavy Industrial
Multi-Layer Heavy Load Cold Rolled Steel Epoxy Coated Warehouse Rack
- Steel Grade: Q355B continuous high-tensile profile
- Capacity: Up to 4,500 kg per beam level
- Locking: 5-pin heavy duty connector plates
Selective Beam
Adjustable Selective Beam Pallet Racking Heavy Load Warehouse System
- Selectivity: 100% direct pallet immediate picking
- Pitch Adjustment: 50mm / 75mm beam adjustment
- Forklift: Compatible with standard counterbalanced

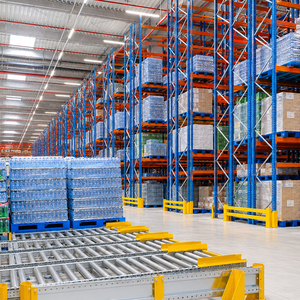

3000kg Capacity
Adjustable 3000kg Capacity High Density Space Pallet Racking Storage
- Safety Factor: 1.5 dynamic engineering safety index
- Beam Profile: Double-C box closed interlock beam
- Footing: Seismic anchor anchor-expansion pads
Multi-Level

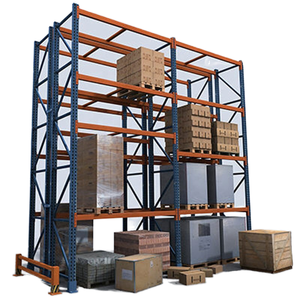

Peterack PT-HD Heavy Duty Multi-Level Shelving Epoxy Anti-Corrosion
- Configuration: Manual picking or high forklift tier
- Surface: Salt-spray tested > 500 hours ASTM B117
- Decks: Solid steel shelf or drop-in wire options
NFPA Fire Safe

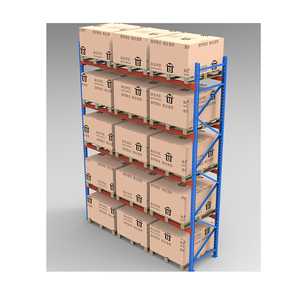

Wire Mesh Decking Heavy Duty Steel Rack Certified Warehouse Storage
- Safety: NFPA 13 sprinkler water penetration > 70%
- Channels: U-channel and flared waterfall supports
- Load: 1,000 kg – 1,500 kg uniformly distributed (UDL)
Enterprise Manufacturing Credentials
End-to-End Vertical Manufacturing & Structural Integrity
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) maintains complete vertical control over every phase of structural steel manufacturing. Spanning an advanced 30,000 square meter intelligent manufacturing base in South China, our facility maintains a sustained production capacity of 30,000 metric tons per month, ensuring consistent lead times for large-scale logistics infrastructure projects.
Unlike trading entities or fragmented assemblers, our engineering lines feature automated multi-station cold roll-forming machines, precision CNC laser cutting systems, automatic punching presses with continuous hole spacing accuracy within ±0.1 mm, and robotic welding stations conforming strictly to European CE standards (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 quality management benchmarks (Certificate No. 18624Q00169R0M).
Certified Prime Steel
Q235B and Q355B coil stock with mill-test certificates for tensile strength and chemical composition.
Advanced Chemical Pretreatment
10-stage automated pickling, phosphating, and silane washing ensuring maximum powder adhesion.
Free BIM/CAD Layout
24-hour turnaround on 2D floor plans, 3D structural simulations, and capacity optimization charts.
Direct Port Proximity
Fast containerized dispatch through Guangzhou, Shenzhen, and Nansha export terminals.
Heavy Industrial Cold Pretreatment & Finishing
Corrosion and metal fatigue represent the greatest failure modes for industrial warehousing racks exposed to humid coastal air, cold-storage condensation, or chemical atmospheres. HEDA integrates a proprietary multi-layer surface treatment:
- 1. Shot Blasting & Acid Pickling Sa 2.5 Surface Cleanness
- 2. Zinc-Phosphate Micro-Coating Chemical Bond Primer
- 3. Thermoset Epoxy Powder Application 60 – 90 μm DFT Thickness
- 4. High-Temperature Infrared Curing 200°C Polymerization
Looking for project-tailored structural calculations?
Send an Inquiry
Technical Selection Guide
Engineering Performance & Space Utilization Matrix
A rigorous architectural comparison of core warehouse racking configurations to evaluate SKU access speeds, volume optimization ratios, and automation readiness.
| Racking Architecture | Pallet Selectivity | Floor Space Utilization | Inventory Rotation | Forklift Compatibility | Automation Readiness | Optimal Industry Application |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct | 40% – 50% | FIFO / LIFO Flexible | Standard Counterbalance / Reach | Manual / Semi-AMR | Retail DCs, 3PL FMCG, Multi-SKU Hubs |
| Double Deep Racking | 50% Direct | 55% – 65% | LIFO Controlled | Pantograph Reach Truck | Moderate | Dry Goods, Food Wholesaling, Staging |
| Drive-In / Drive-Thru | Low (Lane-based) | 70% – 80% | LIFO (Drive-In) / FIFO | Counterbalanced / Reach | Low | Cold Storage, Beverage Bottling, Raw Grain |
| Radio Shuttle System | High Density Semi-Auto | 80% – 88% | Dual Mode (FIFO/LIFO) | Standard Forklift (Rack-Free) | High | Refrigerated Logistics, Meat/Dairy, High-Volume FMCG |
| Gravity Pallet Flow | Strict FIFO Pick Face | 75% – 85% | Continuous Gravity FIFO | Counterbalance at Entry/Exit | Moderate – High | Pharmaceuticals, Perishables, Fast Turnover |
| Very Narrow Aisle (VNA) | 100% Direct | 65% – 75% | FIFO / LIFO Dynamic | Articulated / Turret Truck | Wire-Guided AGV Ready | High-Bay Distribution, Costly Prime Real Estate |
| Heavy Duty Cantilever | 100% Direct Column | 50% – 60% | Open Matrix | Side Loader / Four-Directional | Customized Crane | Steel Pipes, Lumber, Aluminum Extrusions, Bar Stock |
Macro Industry Intelligence
Future Procurement Trends Reshaping Warehouse Storage (2025–2035)
Strategic structural shifts and global supply chain indicators guiding industrial procurement managers, engineering consultants, and logistics facility developers.
TREND 01 // AUTOMATION EXPANSION
Robotics & AMR-Enabled Structural Racks
Procurement is shifting away from purely static racks toward dual-purpose structures engineered with micro-tolerances for autonomous mobile robots (AMRs), automated storage and retrieval systems (AS/RS), and four-way radio shuttles. Floor slab integration, precision floor flatness ratings (DIN 18202 / ASTM E1155), and laser-punched guide rails are now core procurement specifications.
- Tolerances tightened to millimeter-level accuracy
- In-rack electrical busway and fiber optical paths
- Anti-vibration structural damping connectors
TREND 02 // COLD CHAIN ACCELERATION
Low-Temperature High-Density Densification
With refrigerated space commanding triple the operational power and rental overhead of ambient warehouses, cold chain logistics facilities demand ultra-high density racking. Radio shuttle and multi-tier compact systems built with high-ductility steel grades (tested against brittle transition at -30°C) eliminate unnecessary aisles and cut cubic energy loss by up to 45%.
- Impact-tested low-temperature alloy steels
- Dehumidification-tolerant hot-dip galvanized finishes
- Automated carton-to-pallet transition lanes
TREND 03 // CIRCULAR & SUSTAINABLE STEEL
Scope 3 Decarbonization & Modular Reusability
Global multi-national warehouse operators increasingly mandate verified Environmental Product Declarations (EPDs) and low-carbon electric arc furnace (EAF) steel coils. Modular bolted uprights that permit reconfiguration, height expansion, and beam elevation adjustments without structural torching or hot welding ensure a 30-year lifecycle asset value.
- Zero-VOC powder coating application systems
- Fully dismantlable and recyclable structural frames
- Standardized modular connection profiles
TREND 04 // SEISMIC ENGINEERING
Dynamic Spectral Analysis & Disaster Resilience
Logistics corridors across the Pacific Rim, South Asia, and the Mediterranean enforce stringent seismic structural codes (Eurocode 8, RMI MH16.1, AS4084). Modern procurement mandates project-specific finite element analysis (FEA) to confirm base plate thickness, seismic anchor shear resistances, and spine brace dissipation against ground accelerations up to 0.4g.
- Multi-directional seismic bracing trusses
- Anchor embedment depth calculations per slab rating
- Dynamic overload elastic recovery modeling
TREND 05 // DIRECT OEM COLLABORATION
Disintermediation of Racking Supply Chains
General contractors and third-party logistics firms are actively bypassing local intermediary brokers to establish direct relationships with certified OEM manufacturers. Direct-from-factory procurement cuts equipment costs by 22% to 35%, enables private-label custom profile roll-forming, and ensures direct access to structural engineering teams for CAD modifications.
- Mill-direct material certification traceability
- Private label stamping and bespoke corporate coatings
- Container-optimized nested shipping bundles
TREND 06 // EMBEDDED IOT MONITORING
Smart Sensor Racks with Real-Time Deflection Alarms
Next-generation warehousing introduces piezoelectric strain gauges, ultrasonic collision detection, and beam deflection telemetry directly integrated into storage uprights. Fleet operators receive immediate alerts if a forklift impact compromises upright verticality beyond 1/200th of column height, preventing catastrophic cascade rack collapses.
- Real-time beam load telemetry via low-power BLE
- Immediate collision notification and stress mapping
- Predictive maintenance lifecycle tracking
Advanced Manufacturing Technologies
State-of-the-Art Production Lines & Material Science
Modern racking manufacturing has moved far beyond simple press braking. High-performance structural storage relies on continuous cold roll-forming with active roller tracking. At HEDA Shelves, upright column sections undergo an 18 to 24-station progressive forming sequence, transforming flat high-strength steel coil into an intricate multi-rib profile without inducing micro-fractures along bend radii.
Continuous hole punching is synchronized electronically with continuous servo feeds. The resulting 50mm and 75mm tear-drop or diamond hole configurations provide razor-sharp tolerance consistency, allowing beam connectors to engage instantly without hammering or binding.
Closed Box-Beam Roll Forming
Interlocking step beams seam-welded automatically with twin MIG arcs for zero deflection under full design dead loads.
Automated Connector Welding
Heavy-gauge 3, 4, and 5-hook connector lugs joined via 6-axis robotic welding cells for deep weld penetration.
Non-Destructive Testing (NDT)
Ultrasonic weld inspection and magnetic particle verification performed on high-load structural transfer beams.
High-Yield Zinc Alloy Decking
Automated roll-formed wire mesh and perforated zinc sheets offering drop-in fire resistance and uniform load support.
Metallurgical & Structural Quality Assurance
Every production batch manufactured at HEDA Shelves is subjected to rigorous destructive and non-destructive load trials according to EN 15512 static storage verification protocols:
Beam Deflection Test (L / 200 Standard)
Beams loaded to 1.5x safe operating load (SWL); maximum permissible vertical elastic deflection must not exceed span length divided by 200.
Upright Column Compression & Stub Load
Hydraulic press axial compression testing to determine critical local buckling and torsional-flexural buckling thresholds.
Beam Connector Looseness & Shear Test
Cyclic testing of hook-to-upright engagement ensuring positive locking pins resist 5kN uplift shear without dislodging.
Global Supply Chain Protocols
Container-Optimized Export Engineering & Global Port Delivery
A structured logistics and packing methodology ensuring container freight volume maximization without steel deformation or paint scratching during ocean transit.
High-Cube Container Nesting
Uprights are nested back-to-back with custom-profile corrugated spacers and strapped using heavy steel banding. Beams are palletized in uniform cubic blocks to maximize 40HQ volume utilization up to 98%.
Multi-Barrier Sea Moisture Protection
Ocean shipments face intense humidity and sea spray across equatorial transit. All critical structural components are wrapped in heavy-duty polyethylene stretch film, desiccants, and rust-inhibitive VCI sheets.
Numbered Markings & Quick-Build Kits
Every beam tier, frame upright, and bracing member is marked with unique alphanumeric part numbers matching the project CAD layout drawing, accelerating on-site installation by local mechanical teams.
Technical Clarifications
Frequently Asked Questions on OEM Warehouse Racking Procurement
Authoritative technical guidance compiled by our senior structural engineers to resolve common engineering, logistics, and certification inquiries.
What primary steel grades are utilized, and how are mill certifications verified?
HEDA Shelves manufactures storage racks using high-tensile structural carbon steel conforming to Q235B (yield strength ≥ 235 MPa, comparable to ASTM A36) and Q355B (yield strength ≥ 355 MPa, comparable to ASTM A572 Grade 50 / European S355). Steel coils are procured directly from tier-one mills such as Baosteel and Shougang. Every production lot includes full mill test certificates (MTC) documenting chemical analysis (carbon, manganese, phosphorus, sulfur) and mechanical tensile, yield, and elongation values.
How does HEDA engineer rack structures for high-humidity coastal and monsoon environments?
For tropical, coastal, and uninsulated warehouse facilities (such as discharge port zones in Mumbai, Chattogram, Colombo, or Southeast Asian markets), standard single-layer paints quickly fail. We deploy an automated 10-stage chemical immersion or spray tunnel including acid pickling, zinc phosphating, and deionized water rinsing to completely remove hot-rolling scale. Components receive an electrostatic thermosetting epoxy-polyester powder coat applied to a uniform dry film thickness of 60 to 90 microns, passing 500-hour ASTM B117 salt spray exposure tests. For extreme humidity, pre-galvanized or hot-dip galvanized steel (zinc coating up to 600g/m²) is specified.
What parameters are required to calculate safe rack capacity and issue a complimentary CAD layout?
To generate an optimized CAD layout and finite element static load calculation, we require: (1) Warehouse architectural drawings showing clear ceiling height, column grid coordinates, building obstructions, floor joints, and emergency exits; (2) Pallet specifications including overall width, depth, height, and maximum dead weight including cargo overhang; (3) Handling equipment data, specifically forklift turning radius, maximum mast lift height, and minimum aisle width requirements; and (4) Facility concrete slab thickness, compressive strength rating (e.g., 25–30 MPa), and geographic seismic zone coordinates. Layouts are typically returned within 24 business hours.
What official structural quality certifications does HEDA Shelves hold?
HEDA holds European CE Certification (Certificate No. 2435-CPR-8605159) confirming compliance with EN 1090-1 and EN 15512 steel static storage system execution standards, allowing legal deployment across European Union logistics hubs. We maintain ISO 9001:2015 Quality Management System accreditation (Certificate No. 18624Q00169R0M, valid through 2027), ISO 14001 Environmental Management certification, and hazardous substance RoHS compliance for our organic powder coatings.
Can selective pallet racking systems be retrofitted into radio shuttle or semi-automated lanes later?
Yes. Because HEDA manufactures standardized modular uprights with universal 50mm and 75mm punching configurations, our selective rack upright frames can be converted into high-density drive-in or radio shuttle lanes by replacing standard horizontal beams with galvanized shuttle guide rails and pallet entry cantilevers. However, because shuttle systems exert concentrated dynamic wheel loads, our engineering department must verify the upright cross-section, baseplate thickness, and frame bracing pattern before field conversion.
How does HEDA support on-site installation and mechanical assembly in overseas markets?
Every export shipment includes comprehensive 3D isometric assembly drawings, part-numbered erection maps, and high-definition video walkthroughs demonstrating bolt torque specifications, upright shimming procedures, and frame plumb alignment tolerances (permissible vertical deviation ≤ H/500). For medium to large-scale warehouse projects (exceeding 2,000 pallet locations or multi-tier mezzanine floors), HEDA deploys certified on-site bilingual installation supervisors to manage local rigging crews and sign off on static commissioning.
What are the exact container packing specifications and lead times for 40HQ export orders?
Standard 40-foot High Cube (40HQ) ocean containers typically hold between 20 to 24 metric tons of racking, depending on the dimensional mix of voluminous upright frames and dense box beams. Standard production lead time for 1 to 5 containers is 15 to 20 working days following final CAD sign-off and deposit receipt. Rush fabrication can be scheduled for phased delivery during new warehouse construction schedules.
