Direct Factory Portfolio

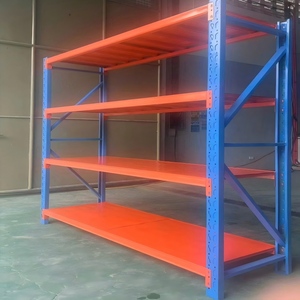

Heavy-Duty Warehouse Pallet Racking & Custom OEM Beam Systems
Precision-formed roll-formed box beams, stepped profiles, and industrial storage configurations engineered to maximize load deflection thresholds under dynamic warehouse conditions.
2001
Founded In Guangzhou
30,000 m²
Automated Factory Floor
30,000 T
Monthly Steel Output
10,000+
Global Projects Completed
Technical Whitepaper
Engineering Taxonomy: Pallet Rack Beam Cross-Sections & Mechanics
Understanding the mechanical behavior of cold-formed step beams, interlocking box beams, and structural channels under uniform distributed loads (UDL) per ANSI MH16.1 and EN 15512 specifications.
Engineering Principle: In pallet rack structural design, beam selection directly dictates allowable deflection thresholds. Under standard RMI (Rack Manufacturers Institute) provisions, vertical deflection under rated capacity must not exceed L/180 (where L is the clear span distance between upright frames). For automated shuttle storage and narrow-aisle robotics, European standard EN 15512 enforces tighter thresholds of L/200 or maximum deflection ≤ 10 mm.
Interlocking Continuous Box Beams
Manufactured by seam-welding two matching C-channels or roll-forming closed hollow rectangular sections. Continuous automated seam welding creates high torsional stiffness, resisting buckling under heavy asymmetrical loading.
- Cross-section profiles: 80×50mm to 160×50mm
- Wall thickness: 1.5mm to 2.5mm Q235B / Q355B steel
- Best application: Standard GMA pallets, drum racks, 3,000kg+ pallet tiers
- Safety coupling: 3-claw or 4-claw cold-stamped connectors
Precision Roll-Formed Step Beams
Features an indented 1-5/8 inch (41.3mm) or 2-inch top step. This recessed ledge accommodates flush-mount wire mesh decking, cross-support pallet bars, or engineered timber panels without increasing overall tier height.
- Cross-section depths: 80mm, 100mm, 110mm, 125mm, 140mm
- Load capacities: 1,000kg to 3,200kg per pair
- Flush-deck integration: Prevents deck lateral slippage
- Seismic optimization: Welded stiffener plates at end connectors
Structural C-Channel Beams
Fabricated from hot-rolled structural steel channels (ASTM A36 or Q235B) bolted directly to structural upright columns. Unmatched durability against frequent forklift impacts and heavy shock loads common in busy distribution centers.
- Web dimensions: 3-inch, 4-inch, 5-inch structural channel
- Connection type: Grade-5 / Grade-8 structural bolting
- Harsh environments: Cold storage (-30°C), open yards, chemical hubs
- Impact capacity: Extremely high resistance to edge shearing
Empirical Data
Engineering Load Matrix: Beam Section Sizing vs. Clear Span Capacity
Reference load ratings per beam pair calculated under uniformly distributed load (UDL) using high-tensile structural steel grades Q235B (Yield ≥ 235 MPa) and Q355B (Yield ≥ 355 MPa).
| Profile Type | Dimensions (H×W×T mm) | Steel Grade | Clear Span (2300 mm) | Clear Span (2700 mm) | Clear Span (3300 mm) | Clear Span (3900 mm) | Deflection Limit |
|---|---|---|---|---|---|---|---|
| Box Beam | 80 × 50 × 1.5 | Q235B | 1,800 kg / pair | 1,450 kg / pair | 1,050 kg / pair | 750 kg / pair | ≤ L/180 |
| Box Beam | 100 × 50 × 1.5 | Q235B | 2,400 kg / pair | 2,000 kg / pair | 1,500 kg / pair | 1,150 kg / pair | ≤ L/180 |
| Box Beam | 120 × 50 × 1.5 | Q355B | 3,200 kg / pair | 2,700 kg / pair | 2,100 kg / pair | 1,650 kg / pair | ≤ L/200 |
| Box Beam | 140 × 50 × 1.8 | Q355B | 4,200 kg / pair | 3,600 kg / pair | 2,850 kg / pair | 2,250 kg / pair | ≤ L/200 |
| Step Beam | 80 × 50 × 1.5 (1-5/8" step) | Q235B | 1,600 kg / pair | 1,300 kg / pair | 950 kg / pair | 650 kg / pair | ≤ L/180 |
| Step Beam | 100 × 50 × 1.5 (1-5/8" step) | Q235B | 2,200 kg / pair | 1,850 kg / pair | 1,350 kg / pair | 1,000 kg / pair | ≤ L/180 |
| Step Beam | 125 × 50 × 1.8 (1-5/8" step) | Q355B | 3,100 kg / pair | 2,600 kg / pair | 2,000 kg / pair | 1,550 kg / pair | ≤ L/200 |
| Structural Channel | C100 × 50 × 5.0 (Hot Rolled) | ASTM A36 | 4,500 kg / pair | 3,900 kg / pair | 3,100 kg / pair | 2,500 kg / pair | ≤ L/240 |
*Note: The ratings above represent static uniformly distributed loads (UDL). Point loads, seismic acceleration factors (Ss, S1), and eccentric loads must be evaluated using dedicated structural finite element analysis (FEA) provided free with our CAD project planning.
Manufacturing Excellence
Guangzhou Heda Shelves Co., Ltd. Manufacturing Pedigree
Supplying certified storage infrastructure since 2001 with total vertical integration from certified raw steel coils to computerized electrostatic powder coating.
Precision Manufacturing Powered by 25+ Years of Engineering Experience
Guangzhou Heda Shelves Co., Ltd. operates a high-capacity 30,000 square meter manufacturing campus equipped with multi-roll precision rolling lines, robotic CO2/MAG beam welding cells, automated 50-ton hydraulic punching presses, and high-speed CNC cutting stations.
Unlike local assembly shops, our engineering office executes full structural checks based on site seismic zone, concrete slab thickness, and forklift mast clear heights. We deliver comprehensive CAD layouts, realistic 3D renderings, and certified load-bearing calculations within 24 hours of specification handoff.
CE & ISO 9001:2015
Cert No. 2435-CPR-8605159 & 18624Q00169R0M verifiable traceability.
30,000 Ton Output
Massive monthly throughput handles major tier-1 logistics park rollouts.
10-Stage Finishing
Chemical pickling, phosphating & 200°C cured electrostatic powder coat.
Global Logistics Hub
Optimized container loading for Nhava Sheva, Colombo, Chattogram, and worldwide.
Rigorous 10-Stage In-House Beam Manufacturing Flow
01. Metallurgical Coil Inspection
02. Laser & High-Speed Slitting
03. Automated Column & Connector Punching
04. High-Precision Cold Bending
05. Continuous Multi-Roll Forming
06. Edge Polishing & Deburring
07. Robotic Weld & Safety Pin Attachment
08. 8-Stage Pickling & Phosphating Pre-treatment
09. Electrostatic Powder Thermal Cure
10. Load-Deflection Verification & Export Bundling
Industry Forecast 2025–2030
Key Procurement & Technology Trends in Pallet Rack Beam Design
Strategic developments shaping global warehousing investments, from automated guided vehicle (AGV) integration to anti-corrosive nanotechnology finishes.
Micro-Alloyed High Yield Steel Down-Gauging
Transitioning from standard Q235B structural steel to high-strength micro-alloyed grades (Q355B / ASTM A572 Grade 50). This innovation allows a 15–20% reduction in raw steel weight while providing identical or superior yield strength, reducing freight footprint and total CIF landed cost.
Robotic ASRS & Shuttle-Ready Tolerances
Standard pallet racking tolerances allow slight beam twist and deflection. Next-generation multi-tier radio shuttle and ASRS systems demand longitudinal camber and lateral twist variances under 0.1%. Advanced robotic rolling and automated laser indexing are now standardized for automated hubs.
Pre-Galvanized & Coastal Anti-Corrosion Finishes
Rising demand across coastal shipping zones and high-humidity tropical climates (India, Bangladesh, Southeast Asia) has elevated hot-dip galvanized (HDG) and pre-galvanized strip beams. Combined with epoxy-polyester powder coats, salt-spray durability exceeds 1,000+ test hours.
Procurement Intelligence
Frequently Asked Questions: Pallet Rack Beam Procurement
Key technical and commercial inquiries addressed by our senior structural engineering team to facilitate smooth project tendering.
What is the fundamental difference between Step Beams and Box Beams?
Step beams incorporate an indented interior ledge (commonly 1-5/8” or 2”) engineered specifically to hold flush drop-in components such as wire mesh decking, wood shelving, or pallet support crossbars. Box beams feature a smooth, closed rectangular profile formed by welding two interlocking channels; they provide superior torsional resistance and are primarily chosen for standard forklift pallet handling where pallets rest directly across the structural span.
How does beam connector design prevent accidental dislodgement?
Our beams utilize 3-claw or 4-claw cold-stamped end connectors precision-formed to match standard teardrop, diamond, or hex hole patterns on upright columns. Every beam end connection features a patented spring-loaded automatic locking pin or high-tensile J-bolt clip requiring manual depression to release, preventing disengagement when pallets are raised abruptly by forklift forks.
Which safety factor is applied during load capacity engineering?
All HEDA beam configurations conform strictly to RMI ANSI MH16.1 and European EN 15512 safety standards, incorporating a structural safety factor of 1.65 to 1.95 against the ultimate material tensile yield point. Calculations include dead load, dynamic pallet placement impact factors (typically +25%), and localized seismic spectral acceleration coefficients.
How do you optimize pallet rack beam shipping in sea containers?
Beams are bundled using automated nesting equipment with wood-dunnage spacers and plastic protective corners to prevent powder coating abrasion during ocean transit. Strapped with high-tensile steel bands in uniform stack counts, our container packing plans maximize weight and cubic capacity in 40ft HQ containers, typically reducing landed sea freight cost by 12–18% per pallet position.
Can you manufacture custom beam lengths and proprietary connector punchings?
Yes. As an OEM/ODM specialist, Guangzhou Heda Shelves custom-engineers beam clear spans (from 1,000mm to 4,500mm), proprietary connector bracket angles (50mm, 75mm, 76.2mm, or 3” pitch), and private label stamping. We routinely manufacture matching replacement beams for existing legacy systems from European, American, and Asian brands.
Ready to Engineer Your Custom Pallet Racking System?
Send your warehouse dimensions, pallet weights, and forklift specifications. Our licensed storage engineers will deliver a comprehensive 2D CAD layout, 3D project visualization, and direct factory quotation within 24 hours.
