Featured Industrial & Medium-Duty Racking Systems

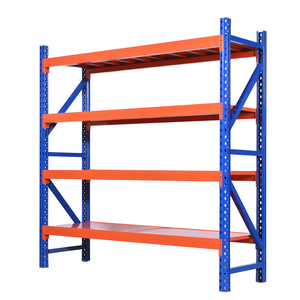

From manual picking mezzanines and 200kg longspan configurations to cold-rolled boltless rivet assemblies, our OEM export portfolio bridges the structural divide between light retail shelving and heavy pallet racking.
Structural Integrity & Material Science in Custom OEM Medium Duty Racking
Procuring industrial medium-duty shelving requires strict evaluation of load-bearing mechanics, metallurgy, and surface resilience. As a tier-1 OEM exporter, our systems satisfy demanding international codes through precise cold-roll forming, automated punch indexing, and certified multi-stage surface passivations.
Q235B / SPCC Carbon Steel
We source high-yield cold-rolled steel coils with guaranteed yield strengths (≥235 MPa). This chemical composition prevents micro-cracking during sharp-angle roll forming and ensures safe elastic modulus limits under maximum rated loads.
Automated 50mm CNC Pitching
Upright columns undergo automated continuous CNC punching. The proprietary butterfly and teardrop connector slots maintain strict ±0.1mm tolerances, guaranteeing upright verticality and rigid beam interlocking without binding or slop.
Pickling & Phosphating Coat
Before electrostatic powder spraying, steel parts travel through a 9-stage degreasing, acid pickling, and zirconium-phosphate conversion line. This guarantees superior salt-spray corrosion resistance exceeding 500 hours under ASTM B117 standards.
OEM Medium-Duty Racking Technical Parameter Matrix
| Racking Classification | Standard Shelf Depth | Clear Entry Length | UDL Capacity / Tier | Decking Options | Primary Application |
|---|---|---|---|---|---|
| Type-M Longspan | 400 / 600 / 800 mm | 1200 / 1500 / 2000 mm | 200 kg – 500 kg | SPCC Steel / Wire Mesh | Automotive parts, retail logistics, wholesale stockrooms |
| Boltless Rivet Rack | 300 / 450 / 600 mm | 900 / 1200 / 1500 mm | 150 kg – 350 kg | Particle Board / Melamine / Steel | Quick-assembly hubs, light engineering, archives |
| Dynamic Carton Flow | 1200 – 2500 mm | 1000 – 1800 mm | 100 kg – 300 kg / roller lane | High-density PE / Alum Rollers | E-commerce fast-movers, assembly lines, pharmaceutical FIFO |
| Multi-Tier Mezzanine | 600 / 800 / 1000 mm | Customized Grid | 300 kg – 800 kg / m² | Galvanized Steel Plank / Grating | High-ceiling warehouse fulfillment, garment picking lofts |
Future Procurement & Technological Evolution Trends
Intralogistics procurement is transitioning from static steel structures toward dynamic, data-traceable, and modular racking frameworks. B2B buyers must align their infrastructure with five critical structural evolutions over the coming decade.
1. AMR & AGV Integration Ready
Traditional static medium-duty shelving is being re-engineered with elevated base clearances and wider structural spans to allow Autonomous Mobile Robots (AMRs) to dock underneath pick-faces for automated bin retrieval. Sourcing criteria now demand tighter floor-level cross-beam tolerances.
2. Low-Carbon Green Steel Mandates
European and North American supply chains are enforcing Scope 3 emission limits. Leading exporters are implementing Electric Arc Furnace (EAF) steel coils coupled with VOC-free, low-temperature curing powder coatings to minimize the carbon tax liabilities of imported warehouse racking.
3. Modular Multi-Tier Scalability
Urban micro-fulfillment centers demand modularity. Buyers favor medium-duty systems that can convert from single-floor manual picking setups into 2-tier or 3-tier rack-supported mezzanine layouts without requiring custom structural welding or major warehouse reconstruction.
4. Tropicalized & Coastal Coatings
With burgeoning supply chain investments across tropical port nodes (e.g., Chennai, Chattogram, Colombo, and Southeast Asian corridors), standard powder finishes fall short. Specifiers require heavy-duty electrostatic powder coatings with fluoropolymer additions and galvanized footplates to counter monsoon humidity.
5. BIM-Driven Collaborative Procurement
Procurement teams now expect exporters to supply LOD-300 compliant Building Information Modeling (BIM) and 3D IFC/Revit families alongside CAD layouts. This pre-fabrication digital twin testing avoids spatial collisions with sprinkler systems, HVAC ductwork, and structural columns.
Custom Engineering Blueprint?
Consult with our senior CAD and FEA structural engineers to model your facility layout to international seismic and loading standards.
Send an InquiryGuangzhou HEDA Shelves: 25+ Years of Export Excellence
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a specialized 30,000 m² production base staffed by 300+ structural engineers, precision machine operators, and international project supervisors. We offer end-to-end manufacturing oversight with verified CE and ISO quality systems.
30,000 Tons Monthly Capacity
Multiple automated cold-roll forming lines, laser tube profiling, and robotic welding cells ensure short lead times even for massive 40HQ container tenders.
Free CAD & 3D Structural Modeling
Our in-house design office delivers structural FEA calculations, warehouse utilization audits, and 3D renderings within 24 hours of requirement submission.
Certified Quality Assurance
CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 registration No. 18624Q00169R0M ensure every batch undergoes mill-cert analysis and load-deflection audits.
Container-Optimized Logistics
Precision steel strapping, rust-inhibiting plastic wrapping, and nested component bundling maximize 40HQ volume utilization, slashing your landed CIF freight costs.
Frequently Asked Questions (FAQ) for Global Buyers
Clear answers on load engineering, export container packing, customization boundaries, and logistics coordination.
Accelerate Your Warehouse Performance with Custom OEM Racking
Connect directly with our engineering department. Receive custom CAD layouts, structural FEA validations, and transparent factory-direct pricing for your next intralogistics expansion.
