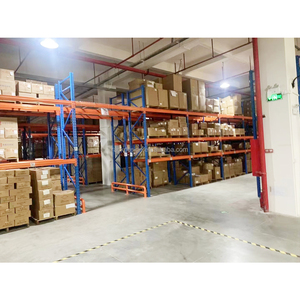

High-Bay Selective
Teardrop Standard
3,000kg Heavy Beam
Medium Duty
AS/RS High-Bay
Custom Construction
2001
Established Year
30,000 m²
Manufacturing Facility
30,000 T
Monthly Steel Output
120+
Global Export Markets
Manufacturing & Metallurgy White Paper
Engineering Architecture of Custom Industrial Wire Shelving & Decking
In modern high-throughput warehousing and intralogistics ecosystems, custom OEM industrial wire shelving represents an indispensable nexus between storage safety, hydraulic suppression compliance, and operational picking speed. Unlike stamped solid-sheet steel decks that impede sprinkler distribution, or wooden pallet boards that present fire fuel loads and structural splintering, welded carbon-steel wire decking and open-wire shelving units provide an unobstructed 70%+ open-area profile. This architectural geometry satisfies stringent National Fire Protection Association (NFPA 13) standards, allowing rapid vertical penetration of ESFR (Early Suppression, Fast Response) fire sprinkler spray down to the lower tier staging layers while simultaneously increasing ambient illumination.
From an engineering metallurgy perspective, industrial wire shelving systems manufactured by Guangzhou Heda Shelves Co., Ltd. utilize virgin Q195 and Q235B high-ductility carbon steel wire. The raw drawn wire undergoing CNC precision cold-drawing yields high tensile ratings between 490 MPa and 590 MPa. Robotic multi-spot resistance welding matrices ensure consistent shear ratings across every intersection point of the wire grid—typically configured in 50×50 mm, 50×100 mm, or 25×100 mm mesh matrices. The load-bearing capacity of industrial wire shelving does not rely entirely on the horizontal wire strands; instead, it is engineered through structural cold-formed reinforcement channels (U-channels or inverted flared channels) cold-welded to the bottom grid, transmitting point loads efficiently onto the structural step beams or structural box beams of the racking frame.
| Surface Finish Type | Standard Coating Thickness | ASTM B117 Salt Spray Hours | Primary Application Environment | Abrasion Resistance |
|---|---|---|---|---|
| Electrostatic Epoxy Powder Coat | 60–90 μm (Thermoset) | 500+ Hours | Ambient Retail Distribution, Auto Parts, 3PL Warehouses | High (Chip & Scratch Resistant) |
| Electrolytic Zinc (Electro-Galvanized) | 12–18 μm | 120–240 Hours | Dry Industrial Manufacturing, General Tooling & Assembly | Medium (Bright Metallic Finish) |
| Hot-Dip Galvanized (HDG) | 55–85 μm (Metallurgical Alloy) | 1,200+ Hours | Outdoor Yards, Cold Rooms, Humid Coastal Logistics Hubs | Superior (Self-Healing Zinc Carbonate) |
| Triple-Nickel Chrome Plated | 20–30 μm Multilayer | 300+ Hours | Cleanroom, Electronics Picking, Healthcare / Food Staging | Very High (Specular Aesthetic) |
| AISI 304 / 316 Stainless Steel Wire | Passivated Base Metal | 2,000+ Hours | Pharma Active Ingredients, Direct Washdown, Chemical Vaults | Ultimate (Non-Corrosive Inert Matrix) |
Structural validation of each custom batch involves rigorous Finite Element Analysis (FEA) alongside physical load testing adhering strictly to ANSI MH28.1 (Design, Manufacture, and Testing of Work Platforms and Wire Shelving) and ANSI MH26.2 (Design, Testing, and Utilization of Industrial Steel Wire Decking). Upright columns are rolled through automated 16-pass cold-forming mills to form stiff Omega-profiles featuring multi-point continuous return lips. When dynamic forklifts or automated guided vehicles (AGVs) impact upright posts, our patented wrap-around heavy column protectors and floor-anchored structural deflectors absorb kinetic energy, maintaining structural equilibrium across the entire aisle run.
Strategic Sourcing Intelligence
Future Procurement Trends in Industrial Wire Storage (2025–2030)
How multi-national procurement teams, system integrators, and 3PL contractors are reshaping their supply chain RFQs for maximum resiliency, TCO savings, and regulatory compliance.
Total Cost of Ownership (TCO) Prioritization
Global procurement has pivoted sharply away from initial unit purchase price toward Landed Lifecycle Cost. Buyers evaluate corrosion degradation cycles, beam deflection fatigue indices, and container volumetric utilization. Direct factory containerization engineering (such as nesting wire decks and knockdown boltless upright frames) reduces oceanic container counts by up to 28%, significantly lowering landed cost per pallet position.
BIM & 3D Digital Twin Procurement
Enterprise procurement now mandates standard Building Information Modeling (BIM) object integration (.RFA / .IFC formats) directly at the tender stage. Turnkey OEM exporters who furnish certified CAD layouts, 3D warehouse clearance models, and structural calculation sheets within 24 hours dominate tier-1 contractor selections, mitigating installation clashes with building sprinkler manifolds and HVAC ducting.
CBAM & Decarbonized Steel Compliance
With the European Carbon Border Adjustment Mechanism (CBAM) and global Scope-3 ESG mandates entering enforcement, tier-1 industrial exporters must furnish traceable scrap-to-steel furnace carbon metrics. Procurement teams favor manufacturers operating high-efficiency electric arc furnace (EAF) feedstocks and zero-VOC electrostatic powder lines with closed-loop wastewater recovery.
Innovation & Automation
Technological Development Trends in Industrial Wire Shelving
The convergence of automation, robotics, and advanced metallurgy in high-density storage manufacturing.
Automated High-Speed CNC Welding Portals
Manual MIG tack-welding of wire decking channels has been entirely supplanted in modern factories by automated multi-gun resistance welding lines. Operating with closed-loop programmable logic controllers (PLCs), these portals monitor dynamic weld current, electrode pressure, and thermal cycle times in milliseconds, eliminating cold welds, spatter, and structural fatigue under cyclic forklift impact.
Hybrid AS/RS Wire Grid Sub-Assemblies
The acceleration of automated shuttle warehouses and micro-fulfillment centers requires custom high-tolerance wire shelving. Standard manual-tolerance decks allow ±3mm variance, but AS/RS interfaces require tolerances within ±0.8mm to prevent optical sensor interference on automated crane forks. Precision laser-trimmed wire waterfalls with integrated indexing tabs are setting the new benchmark.
Anti-Microbial & Nano-Ceramic Pretreatment
Surface chemistry has evolved far beyond basic iron phosphating. Leading Chinese OEM exporters deploy 9-stage silane-nanoceramic conversion baths followed by antimicrobial powder coatings enriched with silver ions (Ag+). This prevents bacterial biofilm formation and cross-contamination in temperature-controlled pharmaceutical warehouses and cold-chain food hubs.
Procurement Engineering FAQ
Frequently Asked Questions by Industrial Buyers & Engineers
Definitive technical and operational answers to common RFQ specifications, load certifications, and international logistics concerns.
What structural standards govern the design and testing of your industrial wire shelving?
Our products comply strictly with ANSI MH26.2 (Specification for the Design, Testing, and Utilization of Industrial Steel Wire Decking), ANSI MH28.1 (Design of Industrial Shelving), and European EN 15512 (Steel Static Storage Systems). Production runs undergo continuous deflection testing where maximum allowable deflection cannot exceed L/200 (length of span divided by 200) under uniformly distributed loads (UDL), and weld shear tests exceed 2.5 kN per intersection.
How do "Standard Waterfall", "Inverted Waterfall", and "Drop-In" wire deck styles differ?
Standard Waterfall features an external downward lip over the front and rear beam face, preventing deck movement and snagging. Inverted Waterfall turns the outer wire lip upwards, acting as a built-in backstop to prevent hand-loaded cartons from slipping off the back into the flue space. Drop-In / Flush Decks sit flat within the step-recess of the beam without protruding outward, preferred when barcode labels on beam faces must remain unshielded or when picking with overhead order-pickers.
What parameters are required to calculate the exact load capacity for custom OEM wire decking?
To calculate load ratings per level, our structural engineers evaluate: (1) Beam clear span and step beam ledge width/depth; (2) Pallet footprint dimensions and bottom-skid contact area; (3) Uniformly Distributed Load (UDL) vs. concentrated point loads; (4) Quantity and gauge of formed U-channel reinforcement ribs (commonly 3 to 5 channels per deck); and (5) Wire diameter (standard 4.5 mm to 6.0 mm gauge).
Can you customize wire shelving and upright punch styles for existing third-party brands?
Yes. As a full-tier OEM/ODM factory, Guangzhou Heda Shelves manufactures interchangeable uprights and beam connectors matching major international profiles: North American standard Teardrop (2" vertical increment), European Dexion/Apex type (50 mm/75 mm pitch), Australian Speedlock, and Japanese boltless configurations. We supply private-label branding, customized RAL powder-coat shades, and branded end-caps.
How are wire shelving and pallet racks protected against salt corrosion during ocean transit?
Export packaging uses heavy vapor-corrosion-inhibitor (VCI) poly-wrap, interleaved non-abrasive cardboard, corrugated side corner edge protectors, and galvanized high-tensile steel banding strapped to heavy hardwood/steel dunnage skids. Uprights are bundled in staggered orientation to eliminate surface rubbing, ensuring zero transit rust and moisture exposure even during multi-transshipment voyages.
What is the typical production lead time and Minimum Order Quantity (MOQ) for OEM orders?
Our standard MOQ is 1×20GP container (or approximately 15–18 tons of steel equivalent), enabling optimal freight cost-efficiency for international buyers. Production lead time for standard powder-coated pallet racks and wire decks is 15 to 20 business days from drawing sign-off; complex hot-dip galvanized or automated AS/RS racking structures typically require 25 to 30 days.
Why Global Logistics Contractors Partner with Guangzhou Heda Shelves
Since our founding in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into one of Asia's preeminent storage engineering and industrial rack manufacturers. Operating from our modernized 30,000 square meter production facility in Guangzhou, China, we combine metallurgical precision, automated roll-forming equipment, and advanced CNC multi-wire welding matrices to deliver zero-defect storage infrastructures for distribution centers across the Americas, Europe, the Middle East, Southeast Asia, and South Asia.
CE & ISO 9001:2015 Verifiable Certification
Certified under CE Registry No. 2435-CPR-8605159 and ISO 9001:2015 (Valid through 2027) with continuous factory audit compliance.
30,000 Tons Monthly Output & Raw Material Reserves
Direct strategic purchasing partnerships with leading domestic steel mills ensure guaranteed coil availability and fast delivery stability.
Free Structural CAD / 3D Layout Within 24 Hours
Our in-house design engineering department of 30+ specialists develops complete building-matched layout schematics, BIM objects, and structural load reports.
Complete In-House Process Chain
From raw wire drawing, coil slitting, cold roll-forming, and robotic welding to 9-stage pickling-phosphating and electrostatic powder coating.
Accelerate Your Warehouse Performance with Custom OEM Wire Shelving
Whether you require full-container shipments of heavy-duty teardrop pallet racking, containerized waterfall wire decks, or high-bay automated warehouse engineering, our structural engineering team is ready to assist with detailed load calculations and tailored quotes.
