Designed to meet stringent automotive OEM standards (including FEM 10.2.02, EN 15512, and RMI specifications), our heavy-duty steel systems deliver dynamic load resilience, damage prevention for Class-A stamped surfaces, and high-density throughput across assembly plants.
Versatile long-span modular shelving optimized for automotive line-side small parts, fasteners, wire harnesses, and assembly sub-components with durable anti-corrosion finish.

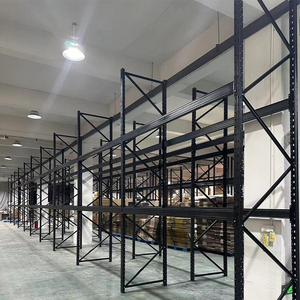

Reinforced steel mesh decking preventing dust buildup and enhancing fire sprinkler water penetration. Ideal for irregular automotive crates, stamping components, and powertrain engine pallets.
Precision-punched, boltless adjustable steel storage shelving system configured for automotive tooling, stamped panels, and kitting carts. Quick re-pitching facilitates flexible lean manufacturing.

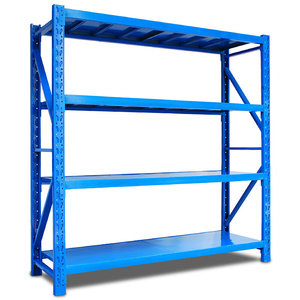

Large-capacity wide-span steel shelving units suited for tier suppliers distributing dashboard modules, steering columns, exhaust tubing, and automotive trim assemblies with seamless manual picking.
Heavy-duty structural upright and step-beam engineering supporting heavy casted automotive parts, transmission units, and engine blocks. Supports drive-in, double-deep, or selective aisle topologies.

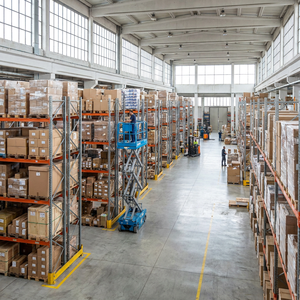

Engineered for dense automotive warehouse buffer zones. Multi-level beam distribution permits vertical space optimization for brake discs, radiator assemblies, suspension struts, and aftermarket SKUs.
Specialized modular cradle design for PCR and TBR truck tires. Portable, stackable, and fold-down steel pallet frames prevent tire tread deformation and maximize seasonal warehousing cubic capacity.

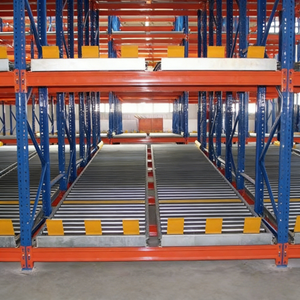

Precision-inclined roller tracks with integrated centrifugal speed brakes. Delivers automated First-In-First-Out (FIFO) replenishment directly to automotive final assembly line stations.
The global automotive manufacturing paradigm is undergoing structural transformation driven by the transition toward Electric Vehicles (EV), mixed-model line sequencing, and automated factory robotics. Modern automotive racking systems are no longer passive steel shelving; they serve as dynamic, load-bearing conduits that dictate cycle times, ergonomics, scrap rates, and assembly line takt times.
In automotive stamped metal, BIW (Body-In-White), and battery pack logistics, off-the-shelf commercial racking inevitably falls short. Tier-1 automotive facilities demand custom OEM solutions engineered around precise part geometries, Class-A surface protection using engineered polyurethanes (UHMWPE/HDPE dunnage), and rigorous dynamic deflection limits. According to EN 15512 and RMI MH16.1 specifications, structural steel rack deflection under combined service loads must maintain a safety factor greater than 1.67, with horizontal displacement strictly controlled under automated guided vehicle (AGV) and automated storage and retrieval system (ASRS) operating envelopes.
As a premier automotive racking supplier and exporter with over 20 years of specialized manufacturing experience, Guangzhou Heda Shelves Co., Ltd. operates an integrated, high-capacity 30,000 m² industrial manufacturing facility. Our engineering division integrates Finite Element Analysis (FEA) to simulate cyclic stress, localized buckling, and dynamic seismic behaviors across diverse geographic environments. By pairing high-yield structural steel coils (Q235B and Q355B) with robotic welding and multi-stage anti-corrosion chemical pretreatments, our custom automotive racks guarantee dimensional accuracy down to ±0.5 mm—protecting billions of dollars in critical automotive components across assembly plants worldwide.
From bumper and fascia transport cradles to heavy-duty casting engine block flow racks, our end-to-end engineering incorporates returnable packaging methodologies, RFID track-and-trace integration, and custom robotic end-effector locating pins. This white paper highlights procurement dynamics, future technological roadmaps, and verifiable manufacturing criteria crucial for automotive supply chain directors and industrial engineers worldwide.
Procurement managers and supply chain directors are modernizing specifications to accommodate rapid platform iteration, EV battery architecture, and ESG decarbonization mandates.
With the mass transition toward 800V high-density lithium-ion and solid-state batteries, automotive procurement specifications now mandate specialized fire-rated compartmentalization. High-grade racking includes integrated thermal-barrier steel deflectors, sprinkler drainage channels, and spark-free conductive dunnage to eliminate static discharge during battery pack storage and line feeding.
Driven by corporate carbon neutral mandates and the EU Carbon Border Adjustment Mechanism (CBAM), automotive OEMs are abandoning expendable wood and corrugated packaging. Closed-loop, returnable custom steel stillages and collapsible racks deliver 10-year service lifecycles, collapsible return freight ratios of up to 4:1, and 85% reductions in total packaging carbon footprints.
Automated line-side replenishment via Autonomous Mobile Robots (AMRs) and AGVs requires millimetric precision. Racking procurement contracts now incorporate strict allowable deflection thresholds, custom bevel-lipped guidance docks, optical sensor reflector brackets, and precise floor anchor tolerances to support seamless unmanned pick-and-place operations.
Racks are transforming into networked tracking nodes. Procurement contracts increasingly specify pre-machined mounting fixtures for industrial RFID asset tags, barcode label recessed protectors, and optical load-presence sensors. This infrastructure feeds real-time inventory buffers directly into factory ERP and MES systems, preventing line stoppage in high-velocity just-in-sequence (JIS) workflows.
Vehicle model lifecycles have shortened from seven years to under three years due to software-defined vehicle (SDV) iterations. As a consequence, rigid single-purpose automotive racks are obsolete. OEMs prioritize modular storage frameworks equipped with adjustable beam levels, bolted universal dunnage plates, and quick-release swap mechanisms, allowing production lines to retool between SUV, sedan, and EV chassis profiles in hours rather than weeks.
Material science, robotic welding automation, and nanoceramic surface treatments are setting new performance benchmarks for automotive factory storage equipment.
Shifting from basic commercial carbon steel to certified Q355B and ASTM A572 Grade 50 structural micro-alloyed profiles. By utilizing roll-formed omega upright geometries with continuous return flanges, structural rigidity is enhanced by 28% while reducing overall deadweight. This directly reduces sea freight logistics overhead per container position.
Automotive stamping die and motor racks sustain severe cyclic shock loads from forklift placing and crane drops. Modern fabrication employs multi-axis Panasonic robotic MIG welding cells, guaranteeing deep weld throat penetration (a ≥ 4.5 mm) with zero porosity. Production batches undergo non-destructive ultrasonic and dye-penetrant testing in compliance with AWS D1.1 standards.
To combat corrosive factory atmospheres, coolant spray, and sea-freight humidity, advanced pretreatment incorporates multi-stage acid pickling, ultrasonic degreasing, and zirconium nanoceramic conversion coating. Finished with electrostatic thermosetting polyester powder coating baked at 200°C, surfaces reliably withstand over 500 hours of continuous ASTM B117 salt spray testing without blistering.
| Automotive Storage System | Typical Automotive SKU Application | Standard Load Rating | Handling Interface | FIFO / LIFO Compliance | Surface / Dunnage Options |
|---|---|---|---|---|---|
| Line-Side Long Span Shelving | ECUs, sensors, fasteners, door switches, wire harnesses | 200 – 500 kg / level | Manual picking, Tugger carts | FIFO / LIFO Flexible | Zinc passivated, ESD antistatic mats |
| Heavy Duty Wire Mesh Deck Racks | Transmission boxes, stamping dies, brake rotors, cast knuckles | 1,000 – 3,500 kg / level | Counterbalanced forklift, Reach truck | Batch LIFO / FIFO | Hot-dip galvanized, drop-over waterfall deck |
| Selective Heavy-Duty Pallet Racks | Engine blocks, gearboxes, catalytic converters, sub-frames | Up to 4,500 kg / beam pair | Counterbalanced, VNA, Reach truck | 100% Direct Access | Heavy powder coat (AkzoNobel / Dupont resin) |
| Specialized Truck Tire Pallet Racks | PCR, TBR, OTR tires, alloy wheels, rim assemblies | 800 – 1,500 kg / stillage | Clamp forklift, standard tines | Batch LIFO | Tubular cradle rails to prevent tread cupping |
| Gravity Flow Roller Racks | Sequenced dashboard trim, radiator assemblies, shock absorbers | 500 – 1,200 kg / lane | Line-side gravity replenishment, AMR drop | Strict FIFO Automated | Galvanized steel rollers, brake rollers, entry guides |
Headquartered in Guangzhou, South China, Guangzhou Heda Shelves Co., Ltd. controls the complete vertical supply chain—from cold-coil slitting to precision roll-forming and robotic welding.
Two decades dedicated exclusively to heavy warehouse logistics and OEM automotive staging, delivering tailored projects for vehicle assembly hubs across Asia, Europe, the Americas, and the Middle East.
Our 30+ senior structural engineers prepare complete warehouse drawings, 3D parametric renderings, structural load safety calculations, and AGV corridor layouts within 24 to 48 hours without upfront design fees.
Certified prime Q235B and Q355B coils sourced directly from top steel mills. Continuous in-line thickness checks, weld micro-structure inspection, and salt-spray testing guarantee decades of safe industrial operation.
Complete bespoke customization: unique upright punch profiles, beam lengths, bolt-in nylon/TPE dunnage cradles, corporate RAL powder matching, and private-label stenciling tailored to client project requirements.
Tier-1 procurement mandates auditable third-party proof of structural integrity. HEDA Shelves maintains full traceability across all exported structural components.
Addressing technical engineering questions, steel specifications, dunnage protection, quality standards, and export logistics.
We utilize certified Q235B (yield strength ≥ 235 MPa) and high-yield Q355B (yield strength ≥ 355 MPa, equivalent to ASTM A572 Grade 50 and European S355JR). Every production batch is delivered with 3.1 Mill Test Certificates (MTC) documenting chemical analysis and mechanical tensile testing.
We engineer custom dunnage components directly integrated into the steel frames. Using CNC-milled UHMWPE, polyurethane, injection-molded POM, and vacuum-formed HDPE cradles, delicate sheet metal surfaces make zero direct contact with raw steel, completely eliminating transport micro-scratches.
Yes. Our engineering division conducts structural seismic calculations complying with European EN 16681, American RMI MH16.1, and Australian AS 4084-2023. We configure enlarged base plates, heavy seismic chemical anchor bolts, and structural cross-bracing tailored to your local site spectral acceleration parameters.
Standard fabrication is completed within 15 to 25 days depending on tonnage. Uprights and beams are bundled using protective timber battens and heavy poly-strapping designed to maximize 40ft High Cube container cubic volume (exceeding 95% space utilization), minimizing landed freight cost per pallet location.
Yes. We regularly supply line-side flow racks and kitting carts equipped with precision guide funnels, pneumatic floor drop pins, and automated latching mechanisms engineered specifically for MiR, Geek+, and custom OEM automated guided vehicles to enable lights-out replenishment.
Upon approval of 3D CAD/SolidWorks models, our pilot fabrication department builds 1-to-1 functional prototypes. Clients can test the rack directly on their assembly line with physical car components to verify operator ergonomics, dunnage clearances, and robotic handling before kicking off mass tooling and stamping.
