500kg 5-Layer Adjustable Heavy Duty Pallet Racking
Versatile interlocking hook-in beam connectors with 50mm pitch adjustability. Ideal for medium-to-heavy SKU operations needing flexible tier heights.
Heavy-Duty & Adjustable Racking Systems Engineered to Exact Load Limits
Direct from Guangzhou Heda Shelves Co., Ltd.—built with precision roll-formed Q235B cold-rolled steel, high structural stiffness, anti-corrosive chemical coatings, and certified compliance for global supply chain operations.
Structural Heavy Duty Cantilever Rack for Long Materials
Free-standing dual and single-column profiles specifically configured for pipes, timber, metal profiles, and heavy extruded structural materials.
Selective Industrial Pallet Racking for Pharma & FMCG
100% immediate pallet accessibility engineered to standard European and ISO pallets, matching high-turnover pharmaceutical and cold storage protocols.

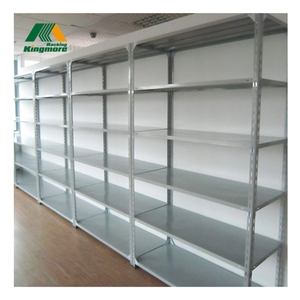

Boltless Long Span Heavy Metal Shelving System
Fast assembly bolt-free slotted post design configured with steel or timber drop-in shelves for rapid bin-box and loose cartons picking lines.
Multi-Tier Modular Stainless Steel Storage & Display System
Corrosion-proof grade 304/201 architectural cleanroom and retail display framing designed for sanitary or aesthetic commercial warehousing environments.
Zinc Galvanized Smart Micro-Parts Warehouse Shelving
Anti-static, hot-dip or electro-galvanized high-density modular shelving with dividers, specifically engineered for hardware, fasteners, and sub-assemblies.
Wide-Span Heavy Industrial Pallet Rack for Bulk Goods
Extra-wide box beam configurations spanning up to 3600mm to accommodate oversized industrial totes, bulk machinery parts, and non-standard pallets.
Multi-Tier Rack-Supported Mezzanine & Loft Platform
Transforms vertical overhead clearance into fully integrated multi-tier manual pick zones and automated sorter floors, doubling storage floor footprint.
2001
Founded Year
30,000 m²
Manufacturing Base
30,000 T
Monthly Output
10,000+
Global Projects Built
Engineering Whitepaper: Metallurgical Standards & Structural Mechanics
Ensuring structural integrity, seismic safety, and sustained deflection resistance in multi-level pallet load configurations.
In high-density industrial storage, structural engineering integrity is non-negotiable. At Guangzhou Heda Shelves Co., Ltd., adjustable pallet racking design begins at the cold-forming stage using certified Q235B and Q345B structural carbon steel coils. The mechanical yield strength (exceeding 235–345 MPa) ensures our vertical upright columns and interlocking horizontal box beams withstand continuous dynamic loading, seismic ground vibration, and forklift impact dynamics without catastrophic structural shearing.
Unlike light commercial shelving, industrial warehouse racks rely on precise roll-formed column geometries. Our columns feature continuous, cold-formed open profiles with multiple stiffening ribs along the web and flanges. This multi-rib profile drastically improves the section modulus ($Z_x, Z_y$) and increases radius of gyration, guarding against localized torsional bucking and global Euler buckling under extreme tier loads exceeding 4,000 kg per beam level.
| System Type | Load Limit (UDL) | Beam Adjustment Pitch | Material Class | Ideal Logistics Scenario |
|---|---|---|---|---|
| Selective Pallet Racking | 1,000 – 4,500 kg / level | 50mm / 75mm slotted | Q235B Cold-Rolled Steel | 100% SKU selectivity, High-rotation distribution hubs |
| Drive-In / Drive-Through | 1,000 – 2,000 kg / pallet | Adjustable cantilever arms | Q345B High-Yield Steel | LIFO / FIFO high-density, cold storage, bulk commodities |
| Radio Shuttle System | 500 – 1,500 kg / pallet | Rail-guided profile | Precision Drawn & Galvanized | Semi-automated deep lane storage, chilled distribution |
| Rack-Supported Mezzanine | 300 – 1,200 kg / m² | Engineered structural grid | Heavy Gauge C/H Sections | Multi-tier manual order fulfillment, apparel, automotive |
| Heavy Cantilever Racks | 500 – 3,000 kg / arm | 100mm pin adjustment | Structural H-Beam / Roll-formed | Steel pipes, raw lumber, extrusions, structural profiles |
Pretreatment chemistry forms the backbone of environmental survivability. Each upright and beam element passes through a rigorous 10-stage automated surface treatment: hot degreasing, twin cold rinsing, acid pickling, surface conditioning, microcrystalline zinc phosphating, and deionized passivation. This sequence prepares steel for thermosetting epoxy-polyester electrostatic powder coating, cured under 180°C–200°C chamber conditions. The resulting dry film thickness (70–90 μm) delivers extraordinary salt-spray endurance, making our systems resistant to blistering in humid tropical and coastal maritime ports across India, Bangladesh, Sri Lanka, Southeast Asia, and the Middle East.
Global Procurement & Engineering Trends (2025–2030)
How intralogistics managers, 3PL giants, and industrial supply buyers are restructuring warehouse rack architectures.
1. Semi-Automated Radio Shuttle Convergence
Procurement is pivoting from static drive-in corridors to semi-automated shuttle systems. Racking now incorporates automated pallet rails and low-friction galvanized pathways, mitigating forklift rack collision risks and tripling throughput capacity in -25°C cold chain warehouses.
2. Stringent Seismic Zone Compliance
Corporate risk mitigation policies increasingly dictate strict EN 15512, ANSI MH16.1, and FEM 10.2.02 engineering verifications. Buyers demand certified base plate anchor layouts, non-linear seismic pushover analyses, and oversized welded load plates configured for regional geological faults.
3. Modular Multi-Tier Pick Towers
Skyrocketing commercial warehousing real estate costs are fueling demand for multi-tier rack-supported platforms. Rather than investing in new physical ground buildings, logistics operators are erecting 3 to 4-tier steel mezzanine racking systems fitted with integrated chutes, fire sprinkler grids, and catwalk aisles.
Why Major Enterprise 3PLs Partner with HEDA Shelves
Over two decades of precision cold forming, automated robotic welding, and container-optimized sea freight packaging.
30,000m² Plant
Massive monthly fabrication capacity of 30,000 tons guaranteed by automated roll-forming and CNC laser punch stations in Guangzhou, South China.
Free CAD & 3D Layout
Our engineering team translates your site footprint into complete 2D CAD architectural layouts, load calculation tables, and 3D visual designs within 24 hours.
CE & ISO 9001
Accredited CE Certificate (No. 2435-CPR-8605159) and ISO 9001:2015 certified quality verification ensure global structural building compliance.
Export Packing
Engineered ocean container bundling, steel-strapped protective corner guards, and moisture-barrier air wraps optimize 40HQ payload efficiency and eliminate transit damage.
Adjustable Pallet Racking Procurement FAQ
Essential technical, logistical, and structural questions answered by HEDA's lead storage engineering specialists.
How do we determine the safe load capacity per beam level?
Load capacity relies on the uniformly distributed load (UDL) of your pallets, standard beam length, and profile height/thickness. Every beam pair must have an engineering deflection limit not exceeding L/200 (or L/250 under high-spec standards) while including a structural safety factor of 1.5 to 1.65 against yield failure under continuous full rated load.
What is the standard beam adjustment pitch for your racking systems?
Our vertical upright columns are precision-punched on automated CNC lines with either a 50mm or 75mm slotted teardrop or butterfly hole pitch. This allows forklift operators and warehouse managers to unbolt or declip locking pins and reposition beam levels freely without cutting or welding steel.
What architectural warehouse data is required for a custom CAD layout?
Please provide your clear ceiling height under building beams/sprinklers, building column spacing grid, floor slab thickness and concrete compressive strength (e.g., C25/C30), full pallet dimensions (W x D x H) including overhang, maximum load weight, and forklift turning radius (Aisle AST).
How do you handle shipping logistics and avoid damage in transit?
All structural upright frames and horizontal box beams are mechanically bundled with high-tensile steel banding, wrapped in multilayer heavy-duty polyethylene stretch film, and fitted with thick corrugated edge guards. Small components, brackets, baseplates, and bolts are palletized and boxed for straightforward ocean clearance.
Optimize Your Warehouse Storage Density & Flow Efficiency
Consult with Guangzhou Heda Shelves Co., Ltd.'s storage engineering team today. Get full engineering CAD proposals, load tables, and factory-direct wholesale FOB/CIF pricing customized to your distribution facility.
