Featured Warehouse Roller & Heavy-Duty Racking Systems
Engineered for First-In-First-Out (FIFO) material rotation, optimal space consolidation, and intense pallet turnover. Sourced direct from our certified 30,000 m² smart fabrication base.

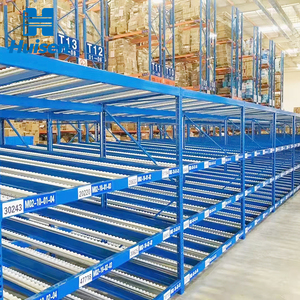

Heavy Duty Gravity Roller Shelves Steel Flow Rack System
High-density dynamic roller beds with automatic speed retarders and integrated entry guides, delivering flawless FIFO pallet progression.
Multi-Level Carpet & Fabric Roll Beam Storage Racking
Custom-profile cradles and roll-formed nested beams built specifically for large-diameter textiles, rolls, and cylindrical merchandise.
Heavy Duty Cold-Rolled Wire Mesh Pallet Storage Shelves
Multi-bay structural shelving incorporating heavy-duty waterfall wire mesh decks for enhanced fire-sprinkler penetration and box safety.

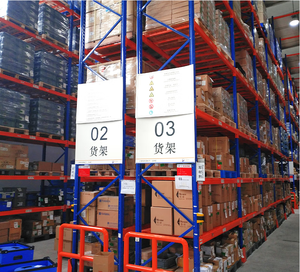

1000-3000kg/Layer Heavy Duty Factory Pallet Racking
Engineered box-beam columns with high moment of inertia designed to absorb continuous forklift impacts in heavy manufacturing warehouses.

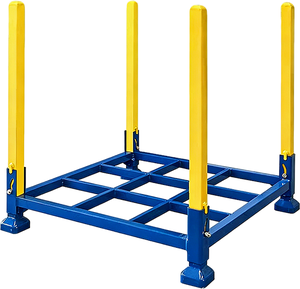

Customized Foldable Stacking Fabric Roll Pallet Rack
Portable nesting steel post pallets featuring removable posts and foldable side gates for compact reverse-logistics empty returns.

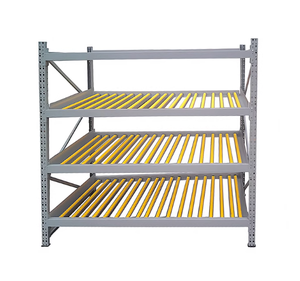

Industrial 5-Layer Adjustable Roller Picking Shelf
Ergonomic carton flow shelf fitted with lightweight precision roller strips and plastic dividers, boosting split-case order picking productivity.
3000KG/Level Heavy-Duty Fabric Roll Storage Rack
Reinforced cold-formed structural uprights engineered specifically for spinning mills, fabric wholesalers, and technical textile warehouses.
Q235B Steel Selective Gravity Carton Flow Roller Racking
Versatile inclined aluminum/steel roller tracks with adjustable guide lanes, separating replenishment aisles from picking corridors completely.
Engineering Kinematics of Live Roller Racking Systems
Understanding the physics of gravity flow storage: How calibrated roller pitch, centrifugal brake controllers, and pallet separators safeguard multi-tier operations.
Eliminating Kinetic Hazards in Dynamic Pallet Flow
In conventional deep-lane warehousing, spatial waste and aisle congestion throttle operational throughput. Gravity roller racking (dynamic live storage) operates on an inclined plane—typically calibrated between 2.5° to 3.5° (a 3.5% to 5.0% gradient). Loaded pallets glide unassisted from the charge (loading) face down to the discharge (picking) face via gravitational acceleration.
However, without precise engineering, unchecked acceleration causes violent pallet impact, product collapse, and structural frame degradation. Guangzhou Heda Shelves Co., Ltd. addresses this kinetic hazard through integrated mechanical governors. Specially engineered centrifugal braking rollers are embedded along the roller tracks at calculated intervals (typically every one pallet length). These internal brake drums exert counteracting friction proportional to pallet velocity, maintaining a safe terminal speed of 0.25 to 0.30 meters per second regardless of whether the pallet weighs 300 kg or 1,500 kg.
Furthermore, to resolve dynamic back-pressure during forklift extraction, our roller tracks incorporate spring-damped pallet separators. This mechanical latch holds trailing pallets 300 mm behind the lead pallet at the discharge pick-face. Once the lead pallet is elevated by the reach truck, the latch automatically resets, enabling the subsequent unit to roll forward under controlled conditions.
Key Mechanical Parameters
-
Incline Angle Precision: CNC laser-punched upright pitch (50mm/75mm) enables fine tuning of gradients between 2.5° and 3.5° depending on wooden, plastic, or metal pallet runner texture.
-
Galvanized Cylindrical Rollers: Heavy-wall carbon steel tubing (Ø50mm or Ø60mm) mounted on spring-loaded hexagonal shafts with sealed, maintenance-free precision ball bearings.
-
Dual-Directional Impact Entries: First-level loading beds equipped with three reinforced rubber/PU impact rollers to withstand aggressive forklift drop-shock.
-
Seismic Frame Bracing: Bolted diagonal cross-braces fabricated from Q235B high-yield structural steel compliant with European FEM 10.2.02 and American RMI seismic standards.
| Racking System Type | Pallet Flow Dynamics | Space Cube Utilization | FIFO / LIFO Discipline | Throughput Speed | Best Industry Fit |
|---|---|---|---|---|---|
| Gravity Roller Pallet Flow | Dynamic Gravitational Roller Bed | 85% - 90% (Ultra High) | Strict FIFO (100% compliant) | Very Fast (Dedicated Aisles) | FMCG, Food/Beverage, Pharmaceuticals, Cold Stores |
| Carton Flow Roller Shelves | Split-Case Fluent Roller Rails | 80% - 85% (High Pick Density) | Strict FIFO (Continuous Flow) | Ultra High (Pick-to-Light) | E-Commerce Fulfillment, Auto Parts, Assembly Lines |
| Selective Pallet Racking | Static (Forklift Accessible) | 40% - 50% (Wide Aisles) | Random Access (100% Selective) | Moderate (Single Pallet Cycle) | High-SKU Multi-Client 3PL Warehouses |
| Push-Back Cart Racking | Nested Dynamic Carts (Incline) | 70% - 75% (High) | LIFO (Last-In-First-Out) | Moderate (Front-Aisle Access) | Medium Rotation SKUs, Manufacturing Buffer Stores |
| Drive-In Pallet Racking | Static Cantilever Rails | 75% - 80% (High Density) | Strict LIFO (Driver Enters Bay) | Slow (Deep Truck Maneuvering) | Homogeneous Seasonal Crops, Raw Materials, Paper Mills |
Future Procurement Trends for Warehouse Roller Systems (2025–2030)
Intralogistics procurement is shifting from standalone steel procurement to integrated, automated, and carbon-optimized supply contracts.
1. Direct Autonomous Mobile Robot (AMR/AGV) Interface
Procurement engineers are increasingly mandating optical-docking funnels and magnetic positioning stops on carton and pallet roller beds. As automated mobile robots replace standard counterbalanced forklifts, roller rack charge points must maintain millimetric alignment tolerances (within ±2mm). Suppliers capable of delivering robotic docking fixtures directly onto the bed frame are winning multi-facility enterprise contracts.
2. Sub-Zero Cold Chain & Food Safety Compliance
With the global surge in cold storage investment, procurement teams reject standard bearing greases and basic paint coatings. Buyers specify food-grade lubricants operating reliably at -30°C without viscous freezing, paired with duplex hot-dip galvanized or electrostatic TGIC powder coatings resistant to condensation rust and corrosive lactic acid spillage.
3. Total Cost of Ownership (TCO) Lifecycle Modeling
Savvy logistics buyers look beyond initial metric-ton steel purchase prices. TCO procurement evaluations assess container cube packing density (freight cost per pallet position), modular interchangeability of split-roller beds, roller sleeve wear ratings under 100,000 cycles, and vendor warranty guarantees against structural frame deflection under continuous dynamic load.
Why Global Warehouse Directors Choose Guangzhou Heda Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. controls the complete production cycle in-house. From certified structural steel coil slicing to computerized cold-roll profiling and multi-stage surface passivation.
30,000 m² Advanced Manufacturing Facility
Operating out of Guangzhou, South China, our facility features automated continuous roll-forming lines, computerized multi-punch presses, and robotic welding stations delivering 30,000 tons of structural steel storage capacity each month.
Certified Q235B Cold-Rolled Steel
Every upright and beam is formed exclusively from certified prime-grade steel coils with full mill test certificates (MTC). We strictly reject re-rolled scrap metal, ensuring guaranteed tensile strength and seismic resilience.
Free Turnkey CAD & 3D Engineering Layouts
Our in-house structural engineering department provides free warehouse space planning, 3D renderings, and seismic slab capacity reviews within 24 hours of receiving your warehouse architectural drawings.
Audited International Quality Credentials
Full compliance with CE Certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System No. 18624Q00169R0M, and RoHS green chemical standards for food, pharmaceutical, and automated retail supply chains.
Frequently Asked Questions by Warehouse Supply Managers
In-depth technical answers addressing load dynamics, pallet compatibility, international freight packing, and lifecycle maintenance for roller racking systems.
How do you determine the correct roller pitch and slope angle for varied pallet materials?
Roller pitch is determined by the rule of minimum three-roller contact: the base of the pallet must always rest continuously on a minimum of three rollers simultaneously to avoid sagging or tipping. For standard 1200x1000mm wooden pallets with bottom skids, an axial center-to-center pitch of 150mm is typical. For Euro pallets (800x1200mm) traveling broadside or flexible plastic pallets, pitch is tightened to 100mm. The slope gradient is set between 3.0% and 4.0% (approx. 2° to 2.5°); plastic pallets with low frictional resistance require gentle slopes (~3.0%), whereas rough wooden stringer pallets require up to 4.0% to overcome static friction reliably.
What prevents pallets from crushing operators or forklifts at the picking discharge face?
Safety at the discharge picking face is governed by three redundant mechanical devices: First, speed controllers (centrifugal brake rollers) spaced periodically down the lane govern forward velocity to <0.3 m/s. Second, high-strength structural end stops (bolted heavy steel hook plates) physically arrest the lead pallet at the beam line. Third, an automatic mechanical separator latch disengages the hydrostatic back-pressure of trailing pallets, locking them 300mm behind the lead pallet so the forklift operator can elevate and withdraw the bottom pallet without friction pinch.
Can warehouse roller racking be deployed inside sub-zero food cold storage (-25°C to -30°C)?
Yes, HEDA specializes in sub-zero dynamic roller racking. Standard bearings and industrial coatings fail in deep freeze due to condensation ice binding and brittle steel fracture. For cold rooms, we engineer the roller assemblies with sealed stainless-steel bearings packed with low-temperature synthetic food-grade grease rated to -40°C. Structural steel sections undergo hot-dip galvanization or high-adhesion zinc-rich primer treatment before electrostatic epoxy powder coating, preventing blistering and sub-film corrosion across decades of freeze-thaw cycles.
How does HEDA optimize export shipping and container stuffing to lower landed freight costs?
Because heavy racking components are both dense and bulky, inefficient loading incurs exorbitant sea freight costs. HEDA's engineering department generates custom computerized 3D container packing simulations for every order. Uprights are bundled in nested interlocking orientations wrapped with protective corrugated cushioning; beams are strapped in uniform palletized bundles; roller tracks and flow beds are packaged in shock-resistant steel crates to protect delicate bearings. A standard 40HQ container typically achieves over 95% volumetric and weight payload capacity, saving our international clients between 15% and 28% in CIF shipping charges.
What documentation and certifications are provided for local municipal building approvals?
We provide full engineering dossiers required by local regulatory bodies, fire marshals, and insurance underwriters. This includes verified CE Declaration of Conformity under EN 15512 / EN 15620 standards, certified ISO 9001:2015 audit trails, steel mill metallurgical certificates verifying Q235B/Q355B yield and tensile strengths, structural load capacity calculations, baseplate slab pressure calculations (PSI load distribution), and detailed 2D/3D CAD layout schematics detailing emergency egress aisle clearances and sprinkler-compatible flue spaces.
How does carton flow shelving differ structurally from heavy-duty pallet flow roller racks?
While both employ gravity flow kinetics, their structural anatomy serves different fulfillment tiers. Carton flow racking utilizes lightweight polyacetal plastic (POM) or aluminum skate wheels arranged in multi-track conveyor lanes mounted onto intermediate step beams; it handles individual boxes and totes weighing 5 to 50 kg for split-case manual picking. Pallet flow roller racking is heavy structural engineering: it uses heavy-gauge tubular galvanized steel rollers (up to 1,500 kg per pallet capacity), embedded speed retarding cylinders, heavy entry impact guides, and pallet separation mechanisms designed for direct forklift interface and full pallet load transfer.
Request Your Free Warehouse Roller Racking Layout & Sizing Calculation
Connect with our lead warehouse systems engineers. Submit your warehouse dimensions, pallet specifications, and throughput targets to receive a free custom CAD layout, structural capacity report, and factory-direct quotation within 24 hours.
Fast Quotation Checklist
- Warehouse Clear Height & Column Grid
- Pallet Footprint (W x D x H) & Max Weight
- Pallet Bottom Type (Full Perimeter / Skid / Runners)
- Operating Temperature Range (Ambient / Chill / Deep Freeze)
- Forklift Lift Height & Mast Clearance
