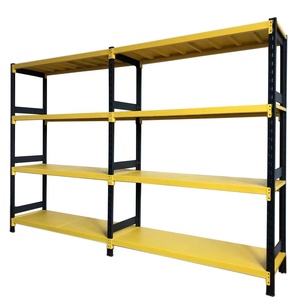

Featured Industrial Storage Systems & Engineered Racking
Factory-direct warehouse solutions cold-roll formed from certified structural steel, compliant with CE, ISO 9001:2015, and international FEM/RMI safety standards for maximum vertical space optimization.
Why Global Supply Chains Trust Guangzhou HEDA Shelves
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates as a vertically integrated tier-one manufacturer, engineering bespoke warehousing ecosystems across 120+ sovereign markets with zero-defect quality governance.
25+ Years Industrial Mastery
Over two decades of precision metallurgical stamping, continuous cold roll-forming, and proprietary structural profile design serving Fortune 500 logistics hubs and multinational 3PL operators.
Free 3D & FEA CAD Engineering
Experienced in-house structural engineers formulate custom warehouse layout schematics, pallet clearance clearances, and Finite Element Analysis (FEA) stress calculations within 24 hours.
Audited CE & ISO 9001:2015
Independently certified under CE No. 2435-CPR-8605159 and ISO 9001:2015 Registration No. 18624Q00169R0M, fulfilling stringent EN 15512, FEM 10.2.02, and RMI MH16.1 specifications.
Full Container Logistics
End-to-end global export handling from South China hubs directly to Nhava Sheva, Mundra, Chattogram, Colombo, Hamburg, Rotterdam, and Long Beach with optimized container cubing to eliminate freight waste.
Engineering Principles of Modern Warehouse Racking Systems
In the contemporary supply chain environment characterized by skyrocketing urban land costs, omnichannel retail spikes, and strict SKU fulfillment velocity, the warehouse racking system ceases to be mere inert steel framing. Instead, it serves as the foundational structural backbone that determines a distribution center’s operational throughput, cube efficiency, and seismic survival margin. Navigating the Chinese manufacturing matrix requires procurement officers, project managers, and logistics architects to understand the granular metallurgical standards, section modulus configurations, and anti-corrosive pretreatments that differentiate tier-one industrial fabricators from low-grade commercial re-rollers.
At Guangzhou HEDA Shelves, structural components are roll-formed exclusively from certified hot-rolled coil structural steels, predominantly Q235B (yield strength ≥ 235 MPa) and high-tensile Q355B (yield strength ≥ 355 MPa), tested under stringent chemical composition tolerances to prevent micro-fissuring during multi-pass cold roll-forming. Upright frames are pierced with continuous computerized CNC punching arrays at precise 50mm or 75mm pitches, facilitating beam connectivity via three- or four-claw forged steel connectors. These connectors feature engineered wedge-taper geometries that generate rigid moment-resisting connections under increasing pallet loads, effectively counteracting systemic lateral frame drift.
Industrial racking life expectancy in coastal, monsoon-prone, or cold storage conditions is overwhelmingly determined by chemical surface pretreatment before powder deposition. HEDA employs an automated 8-stage immersion process incorporating hot alkaline degreasing, twin acid pickling, rinse baths, micro-crystalline zinc phosphating, and deionized passivating. This guarantees salt spray corrosion resistance exceeding 500 hours (ASTM B117) and powder coat adhesion meeting ISO 2409 Cross-Cut Level 0.
Structural Performance Comparison Matrix
Selecting the optimal pallet storage configuration requires balancing immediate capital expenditure ($/pallet position) against volumetric storage density and individual pallet selectivity. The engineering matrix below synthesizes core technical parameters across primary industrial racking configurations:
| System Architecture | Pallet Selectivity | Volumetric Density | Inventory Flow | Forklift Compatibility | Relative Cost / Pos. |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Standard (40-50%) | FIFO / LIFO | Counterbalance, Reach Truck | Baseline ($) |
| Very Narrow Aisle (VNA) | 100% Immediate | High (65-75%) | FIFO / LIFO | Specialized VNA Man-Up/Down | Moderate ($$) |
| Drive-In / Drive-Thru | Lane Dependent | Ultra-Dense (75-85%) | LIFO (Drive-In) / FIFO | Counterbalance, Reach Truck | Moderate ($$) |
| Radio Shuttle Automation | Semi-Automated Deep Lane | Maximum (80-90%) | Programmed FIFO / LIFO | Standard Forklift + Shuttle Unit | Capital Intensive ($$$) |
| Push-Back Cart System | 2–6 Pallets Deep | High (70-75%) | Strict LIFO | Standard Reach Truck | Moderate-High ($$) |
| Rack-Supported Mezzanine | Tiered Pick Levels | Max Vertical Cube | Continuous Batch Pick | Hand Trucks, Conveyor, Lifts | Engineered Platform ($$$) |
Subfloor Foundation Engineering & Seismic Anchoring
A frequent blindspot during global racking procurement is the interaction between cold-formed steel baseplates and the building's concrete slab-on-grade. A multi-bay selective or VNA installation carrying 2,000 kg pallets stacked 5 levels high induces concentrated point loads exceeding 100 to 180 kN directly under baseplate anchor clusters.
HEDA’s structural calculation packages calculate dynamic moment transfers and punch-shear stresses in accordance with EN 1992 (Eurocode 2) and ACI 318. For seismically volatile installations across the Pacific Rim, Mediterranean, or South Asian Himalayan fault lines, our engineers incorporate non-linear seismic response analysis (P-Delta effects), ductile braced frames, high-elongation seismic wedge anchors, and custom baseplates designed to redistribute cyclical energy without brittle weld failure.
Global Procurement & Technological Trends in Warehouse Racking
Macro-economic shifts, labor availability constraints, and warehouse robotics are radically altering the structural expectations of commercial storage infrastructure.
AMR & Shuttle-Ready Structural Integration
Traditional passive racking is rapidly yielding to hybrid configurations. Global distribution centers are requesting rack modules pre-engineered with laser-aligned guide tracks, continuous wireless shuttle busbars, and pallet sensor retrofits capable of supporting autonomous mobile robots (AMRs) and AS/RS high-bay pickers without field modifications.
Cryogenic Metallurgy for Ultra-Low Cold Stores
With pharmaceutical cold chains and prepared frozen food logistics expanding at over 14% CAGR, procurement demand has surged for high-impact structural steels capable of retaining ductility at -30°C. Standard commercial steels undergo brittle transition at freezing temperatures; modern installations utilize low-temperature Charpy V-notch tested alloys coupled with hot-dip galvanization.
Scope 3 Carbon Tracking & Circular Steel Scrap
Major corporate buyers now benchmark the embodied carbon intensity of imported steel components. Tier-one Chinese exporters are transitioning toward electric arc furnace (EAF) steel stock and closed-loop water treatment lines, providing ISO 14067 verified carbon footprint declarations alongside bill-of-lading documents to assist buyers in passing European and North American carbon audits.
Frequently Asked Questions by Industrial Sourcing Teams
Authoritative, technically grounded answers regarding steel grades, deflection limits, testing standards, shipping calculations, and field installation governance.
What beam deflection criteria does HEDA apply in structural calculations?
How do you guarantee freight optimization and rust prevention during ocean transit?
Can HEDA racking connect with pre-existing European or American racking systems?
What documentation is provided to support municipal warehouse permitting?
How are mezzanine platforms designed for live load variations?
What is the typical production lead time for a 500-tonne warehouse project?
Request an Engineered Layout & Factory Quote
Submit your building CAD drawings, ceiling clearance heights, pallet specifications, and forklift parameters. Our senior structural engineers deliver an optimized layout, 3D rendering, and landed CIF quotation within 24 hours.
