Engineering Principles & Operational Dynamics of Single Deep Racking
Also universally referred to as standard selective pallet racking, single deep architecture remains the benchmark against which all intralogistics storage systems are measured.
100% Pallet Accessibility & Stock Rotation
Single deep racking positions each pallet on its own pair of load beams, eliminating honeycombing and guaranteeing instantaneous SKU access. This setup is indispensable for distribution hubs operating fast-moving consumer goods (FMCG), third-party logistics (3PL), and dynamic pharmaceutical inventory requiring uncompromising First-In, First-Out (FIFO) handling.
High-Tensile Cold-Rolled Q235B/Q355B Steel
Our columns are roll-formed from premium certified structural carbon steel coils, featuring continuous omega-profile cross-sections with 75mm or 50mm pitch adjustability. Engineered with multi-fold ribbing, our uprights deliver exceptional resistance to torsional buckling and dynamic operational impacts from heavy material-handling equipment.
Pretreatment & Anti-Corrosion Finishing
Before coating, our steel components undergo an automated 8-stage pre-treatment cycle: degreasing, water rinsing, acid pickling, and dual-surface zinc phosphating. This guarantees deep chemical adhesion for our thermosetting electrostatic powder coating, providing anti-scratch durability and corrosion prevention even in high-humidity coastal ports.
Single Deep Selective vs. Alternative Industrial Storage Formats
Determine the exact operational parameters and mechanical trade-offs between storage density, handling capital costs, and cycle speeds.
| Storage Matrix Feature | Single Deep Selective | Double Deep Racking | Drive-In System | Radio Shuttle Racking |
|---|---|---|---|---|

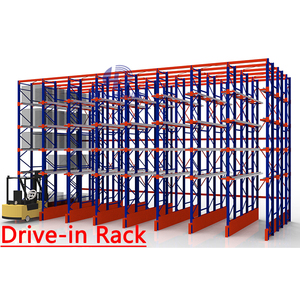

| Direct Pallet Selectivity | 100% Instant Access | 50% (Requires Pantograph Reach) | Lane Dependent (<15%) | Lane Face Dependent |
| Inventory Rotation Logic | True FIFO & LIFO Flexible | Primarily LIFO | Strict LIFO (Drive-Through: FIFO) | Programmable FIFO & LIFO |
| Floor Area Utilization | 35% – 45% (Std. Counterbalance) | 50% – 60% | 65% – 75% | 75% – 85% |
| Forklift Fleet Compatibility | Standard Counterbalance, Reach | Pantograph Reach Trucks | Narrow Mast Drive-In Trucks | Any Standard Lift Truck |
| Initial Capital Expenditure | Low / Lowest CapEx per Bay | Moderate | Moderate to High | High (Battery Automation) |
| Throughput Pallet Moves / Hr | Maximum (No Lane Delays) | Moderate (Wait times for rear pallet) | Slow (Travel inside deep tunnel) | High (Automated carrier transit) |
Guangzhou Heda Shelves Co., Ltd. — China Top Racking Exporter
Operating continuously since 2001, we deliver complete turn-key manufacturing from primary coil slitting to automated profiling, certified load testing, and container loading.
30,000 m² Integrated Infrastructure
Our state-of-the-art production hub houses automated cold-roll profiling lines, robotic CNC beam welding cells, continuous punching systems, and automated powder coating tunnels. This guarantees strict dimensional accuracy with zero hole-pitch drift across long production runs.
Audit-Grade Structural Compliance
Every pallet rack configuration adheres strictly to European FEM 10.2.02, EN 15512, and Australian AS 4084 standards. Certified with CE (No. 2435-CPR-8605159) and ISO 9001:2015 quality management (No. 18624Q00169R0M), our designs undergo continuous Finite Element Analysis (FEA) for safety.
Containerized Freight Engineering
Shipping heavy steel profiles internationally requires optimized packing science. Uprights are bundled with protective dunnage and contoured wooden supports, while box beams are palletized with protective films to maximize 40HQ container volumetric capacity and protect coatings during sea transits.
Future Procurement Trends in Warehouse Pallet Racking
Supply chain infrastructure is evolving rapidly. Forward-looking procurement teams evaluate these four foundational shifts before issuing their next industrial tender.
Seismic-Resilient Base Anchoring
Logistics hubs are increasingly built in seismically active regions across South Asia, the Middle East, and Latin America. Procurement specifications now mandate ductile steel baseplates, oversized seismic wedge anchors, and non-linear dynamic simulation analyses to safeguard operations against earth movements.

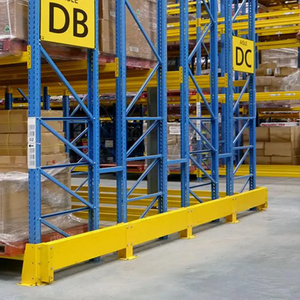

Transition to VNA & Automated Top Heights
With commercial land lease rates climbing globally, standard 6-meter ceiling warehouses are giving way to 12m-16m high-bay configurations. Single deep selective racking is evolving with narrowed aisle widths (from 3.2m down to 1.7m) to accommodate wire-guided Very Narrow Aisle (VNA) forklifts and robotic reach trucks.
Low-Temperature & Cold Chain Finishes
Global perishable trade and pharmaceutical distribution are fueling cold store investments. Buyers increasingly specify specialized cold-resistant steel grades that remain shatterproof down to -30°C, paired with hot-dip galvanized or specialized zinc-rich electrostatic powders to counter condensation.
Frequently Asked Procurement & Engineering Questions
Clear, expert answers addressing common layout challenges, load tolerances, safety protocols, and import logisitcs.
