Technical Whitepaper Deep Dive
Structural Engineering Physics, International Codes & Material Science
Specifying industrial racking systems is fundamentally an exercise in structural safety and geotechnical risk mitigation. Racks are not mere industrial furniture; they are unbraced or semi-rigid steel frame structures subject to dynamic impact, cyclic loading fatigue, floor slab settlement, and regional seismic acceleration forces. A failure to engineer these components accurately results in progressive structural collapse, fatal work-zone liabilities, and catastrophic capital destruction.
Key Engineering Finding: According to EN 15512:2020 and ANSI MH16.1, upright column performance cannot be modeled via pure thin-walled beam theory alone. Real load limits must be validated through full-scale compression testing, rotational joint stiffness tests (beam-to-column connector moment testing), and second-order P-Delta (Δ) elastic-plastic analysis that models realistic frame sway and global buckling hazards.
1. Comparative Regulatory Framework: Global Structural Engineering Standards
Different global jurisdictions impose distinct statutory compliance mandates. Guangzhou Heda Shelves Co., Ltd. designs and manufactures cross-compliant structures engineered to meet or exceed European, American, Australasian, and Chinese regulatory parameters:
| Jurisdiction |
Standard Code |
Allowable Beam Deflection |
Safety Factor on Yield (Steel) |
Mandatory Dynamic Testing |
| European Union (CEN) |
EN 15512 / EN 15620 / FEM 10.2.02 |
L / 200 of clear beam span |
γM = 1.40 – 1.65 (Limit State) |
Beam end connector moment test, upright stub test |
| North America (RMI) |
ANSI MH16.1-2021 / IBC Section 2209 |
L / 180 of clear beam span |
ASD Factor = 1.67 / LRFD Load Combinations |
Column baseplate rotation, beam connection rigidity |
| Australia / NZ |
AS 4084:2023 (Steel Storage Racks) |
L / 200 of clear beam span |
Limit State Design Factor = 1.50 |
Cyclic seismic rack tests, seismic joint capacity |
| China (National Standard) |
GB/T 27924-2011 / GB/T 28576-2012 |
L / 200 of clear beam span |
Standard Safety Factor ≥ 1.50 |
Full-scale portal frame sway test, weld ultrasonic NDT |
2. Steel Metallurgy: Cold-Roll Forming Dynamics & Section Modulus

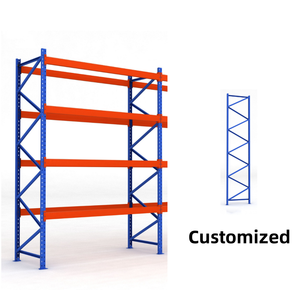

The structural load-bearing performance of uprights and cross-beams is directly tied to the raw structural coil selected during slitting. HEDA Shelves utilizes certified structural coil grades Q235B (Yield Strength $R_{eH} \ge 235 \text{ MPa}$, Tensile Strength $R_m = 370\text{--}500 \text{ MPa}$) and low-alloy high-strength Q355B (Yield Strength $R_{eH} \ge 355 \text{ MPa}$). In high-bay installations exceeding 10 meters, substituting standard Q235B with Q355B yields a 30% increase in Euler buckling critical load without adding excessive self-weight to the foundation concrete slab.
During the roll-forming process, cold-work hardening occurs at every continuous 90-degree fold along the profile corners. This strain hardening increases local yield strength at high-stress bends. Our progressive roll-forming machines utilize 18 to 24 sequential roller stations to gradually introduce plastic deformation, preventing micro-fissuring and avoiding residual internal stress concentrations that cause premature fatigue fracturing during long-term dynamic loading.
