Certified Heavy Duty Warehouse Storage Racking Systems
Explore our factory-direct industrial racking portfolio, cold-roll formed from high-tensile Q235B and Q355B structural steel. Each system is precision-calculated to exceed ANSI MH16.1, FEM 10.2.02, and AS4084 seismic engineering benchmarks.
Heavy Duty Pallet Racking System Warehouse Storage Rack Adjustable Steel Selective Pallet Rack for Industrial Storage
Our benchmark adjustable beam selective pallet rack delivers 100% immediate accessibility to every single SKU pallet. Engineered with interlocking 3-claw or 4-claw connector pins and dual safety locks to eliminate forklift uplift risk during high-speed handling operations.
NSF 4 Tiers 800lbs 21" D X 60" W X 72" H Industrial Commercial Chrome Steel Tubular Wire Shelving on Wheels
Sanitary commercial chrome tubular wire shelving designed for cleanroom logistics, pharmaceutical staging, and restaurant cold storage. The open truss wire design maximizes sprinkler water penetration, air circulation, and light distribution while preventing dust accumulation.
3000KG Heavy Duty Warehouse Shelf Rack for Pallet and Carton Storage 4 Levels for Pallet Storage
Built specifically for high-mass machinery parts, tooling crates, and chemical containers. Integrates welded box beams with drop-in wire decking waterfalls or galvanized steel drop-over panels to safely accommodate non-standard pallet configurations without structural deflection.

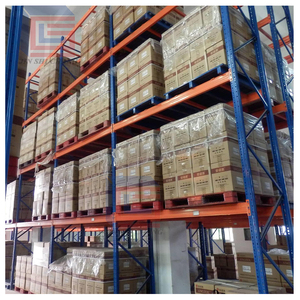

Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System for Storage, Distribution Center and Factory Use
Engineered for dynamic regional fulfillment centers operating 3-shift high-throughput forklift routing. Features thickened column baseplates, floor-anchored wrap-around upright column protectors, and diagonal tubular steel K-bracing to neutralize heavy operational impact stresses.
Factory Industrial Racks Manufacturers Warehouse Storage Heavy Duty Selective Steel Pallet Racking System
Factory-direct customized selective pallet racks manufactured with automated robotic continuous seam welding. Compatible with reach trucks, counterbalanced forklifts, and Very Narrow Aisle (VNA) turret trucks with guide wire or floor-mounted mechanical steering channels.
200kg Storage Shelves Garage 5 Layer Long Span Rack System Shelving Medium Duty Warehouse
Longspan multi-tier storage shelving for manual order picking, split-carton ecommerce fulfillment, and maintenance spare parts storage. The boltless rivet/butterfly-hole system enables rapid repositioning of beam heights in minutes without specialized fastening equipment.
Heavy Load Warehouse Pallet Rack Adjustable Selective Beam Pallet Racking Storage System
Ultra-rigid selective storage structure engineered with heavy gauge upright coils. Built to counter cyclic loading fatigue and sudden seismic floor shears. Available with hot-dip galvanized coating for humid cold chain environments and unheated outdoor logistics staging yards.
Wholesale Warehouse Racking System Heavy Duty Metal Iron Shelving Warehouse Storage Push Back Push Back Pallet Racking Systems
Dynamic high-density nested cart push-back system. Forklifts load from a single front aisle, gently pushing previously stored pallets back up an inclined precision rail. Ideal for food processing and FMCG buffers where multiple pallet lots of identical SKUs must be staged densely.
Why Global Tier-1 Logistics Trust Guangzhou Heda Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized roll-forming workshop into a globally recognized industrial racking powerhouse. We execute complete in-house manufacturing—from raw steel coil slitting to automated 10-stage powder coating.
Over 24 years of zero-failure structural racking design and global manufacturing heritage.
Massive factory base in Guangzhou equipped with automated rolling lines and robotic welding bays.
Large-scale coil inventory ensuring stable pricing and rapid 15-day sea container export fulfillment.
Container shipments deployed across South Asia, North America, the Middle East, and Europe.
Full-Chain Manufacturing Precision: From Certified Coil to Installed Project
Unlike trading intermediaries, Guangzhou Heda Shelves enforces rigid metallurgical traceability. Every production batch starts with mill-certified prime structural steel coils (Q235B and Q355B). Automated roll-forming machines shape profiles with under 0.5mm deviation across 12-meter continuous vertical upright spans.
Our comprehensive factory capabilities integrate engineering consultations, free bespoke CAD warehouse slotting layouts, 3D parametric stress simulations, and sea-freight container packing optimization. We design systems that withstand humid tropical climates, seismic acceleration zones, and brutal, round-the-clock forklift duty cycles.
-
✓
Certified Compliance: Holds verifiable CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certification No. 18624Q00169R0M (valid through June 2027).
-
✓
Advanced Pretreatment: Complete 10-stage automated hot acid pickling, phosphating, and passivating process to prevent subterranean rust under paint films.
-
✓
Free Engineering Package: Professional CAD layouts, 3D warehouse renderings, and slab load deflection calculations provided within 24 hours.
Pallet Storage System Selection Matrix & Structural Comparison
Choosing the right racking configuration balances real estate footprint, SKU velocity, forklift capital expenditures, and volumetric storage density. Review our technical engineering benchmark below before submitting your layout drawing.
| Storage System Architecture | Pallet Accessibility | Space Utilization % | Inventory Rotation | Forklift Compatibility | Ideal Application Profile |
|---|---|---|---|---|---|
| Adjustable Selective Pallet Racking | 100% Direct Immediate | 40% – 50% | FIFO or LIFO | Standard Counterbalance / Reach | High SKU counts, 3PL logistics, fast FMCG sorting hubs |
| Double-Deep Pallet Racks | 50% Direct Access | 60% – 65% | LIFO | Specialized Pantograph Deep-Reach | Medium SKU volumes, cold stores, dry grocery wholesale |
| Drive-In / Drive-Through Systems | Lane-Based Restricted | 70% – 80% | Strict LIFO (FIFO if Drive-Thru) | Standard Reach (Drive-In Protected) | Seasonal bulk staging, beverage bottlers, raw material hold |
| Radio Shuttle Automation Racking | Deep-Lane High Density | 80% – 88% | FIFO or LIFO (Selectable) | Standard Forklift (Does not enter lane) | Cold storage (-25°C), pharmaceutical reserves, food batches |
| Push-Back Nested Cart Racks | Front Face (2-6 Deep) | 65% – 75% | LIFO | Standard Counterbalance / Reach | Intermediate density, multi-pallet lot staging, staging docks |
| Gravity Pallet Flow (Roller Bed) | Face Picking Lane | 85% – 90% | Strict FIFO Guaranteed | Separated Loading & Picking Trucks | High-throughput perishables, dairy, date-critical items |
| Very Narrow Aisle (VNA) Systems | 100% Direct Immediate | 60% – 70% | FIFO or LIFO | VNA Turret Truck / Rail Guided | High clear-height warehouses (>10m), costly land footprints |
| Rack-Supported Mezzanine Deck | Multi-Level Manual Pick | 150% – 200% (Usable floor) | Hybrid Mixed Flow | Conveyors, Vertical Lifts, Hand Trucks | E-commerce split-case picking, retail apparel, auto parts |
Finite Element Analysis (FEA)
Every custom rack profile is subjected to static and dynamic computational load simulations to verify frame upright buckling limits, beam end-connector moments, and deflection tolerances under full rated capacity.
Seismic Floor Anchoring
We calculate project seismic ground accelerations (Zone 1 through Zone 4). Upright baseplates are engineered with chemical wedge anchors (M12 to M18) engineered to absorb seismic ground shear forces safely.
Laser-Precision Perforation
Columns are punched using automated 400-ton hydraulic mechanical punching lines ensuring constant 50mm, 75mm, or 76.2mm hole centers without edge micro-fissures or profile twist.
Heavy Deflection Standard
Beam designs guarantee deflection under full rated load does not exceed 1/200 (Span/200) according to RMI and FEM recommendations, preventing load slippage and beam fatigue failure.
Future Procurement Trends in Warehouse Storage Racking (2025–2030)
Warehouse construction and logistics operations are undergoing tectonic shifts. As prime industrial real estate costs soar and automation becomes standard, racking procurement strategies have evolved from purchasing passive steel shelves to integrating smart physical automation platforms.
1. Proliferation of Semi-Automated Radio Shuttle Systems
Traditional static drive-in racks are rapidly being superseded by semi-automated pallet shuttle systems. Supply chain operators are no longer willing to absorb the high maintenance costs and forklift accident frequency caused by drivers navigating deep into rack bays. Radio shuttles deliver up to 88% volumetric cubing while tripling throughput speed, operating seamlessly inside low-temperature refrigerated cold chain vaults down to -25°C.
2. Vertical Narrow Aisle (VNA) and High-Bay Optimization
With industrial land lease costs in port regions and logistics corridors experiencing steep annual hikes, logistics engineers are building upward. Upright heights are extending from standard 6-meter bays to 12-meter and 16-meter VNA configurations. These systems require extreme cold-roll forming precision, ultra-low profile floor rail integration, and high-tensile steel to prevent column sway.
3. Hybrid Mezzanines for E-Commerce Split-Picking
Omnichannel fulfillment centers increasingly require simultaneous handling of full-pallet storage and fast piece-picking for consumer home delivery. Multi-tier rack-supported mezzanines integrate selective bulk pallet frames on the bottom level with multiple overhead structural pick-levels, effectively tripling usable square footage within the same physical warehouse boundary without building permits.
4. Carbon Footprint Audits & High-Yield Structural Thinning
Global procurement teams now require suppliers to disclose steel origin and carbon intensity. By utilizing superior Q355B micro-alloyed structural steels, Guangzhou Heda Shelves achieves higher yield strength with optimized structural profile geometries, reducing total raw steel consumption while simultaneously increasing maximum load ratings and lowering shipping freight weight.
Key Strategic Sourcing Imperatives
Inside Our 10-Stage Manufacturing Workflow
Every structural pallet upright and beam produced in our Guangzhou plant undergoes a disciplined, 10-step metallurgical and mechanical fabrication route to guarantee flawless field erection and decades of safe loading.
Certified Q235B steel coils verified for tensile modulus, yield strength, and uniform thickness.
Automated CNC slitting lines cut master coils to exact strip widths with clean, burr-free edges.
Multi-head hydraulic punching dies stamp teardrop or butterfly hole arrays with 0.1mm accuracy.
Multi-pass roller tooling stations progressively form rigid Omega and tubular beam profiles.
Continuous 20-stand roll formers produce seamless closed step beams and heavy upright sections.
Mechanical shot cleaning and edge polishing remove weld splatter and mill scale.
CO2 shielded automatic robotic welders secure beam end connectors with maximum penetration.
Full immersion acid wash and phosphate conversion coating create a corrosion-resistant bonding base.
Automated electrostatic guns deposit 70-90µm polyester powder, cured at 180°C in bake tunnels.
Dimension and paint thickness check; protective corrugated wrapping for overseas container transport.
Globally Verified Quality Assurance & Certifications
International infrastructure projects, municipal customs authorities, and corporate procurement departments require third-party audited documentation. All HEDA Shelves storage products adhere to rigid global regulatory baselines.
CE Certification
No. 2435-CPR-8605159
ISO 9001:2015 Registered
No. 18624Q00169R0M
RoHS Environmental
Eco-Friendly Lead Free
SGS & BV Audited
Factory Verified Exporter
Frequently Asked Sourcing & Engineering Questions
Detailed answers to critical technical questions asked by supply chain executives, warehouse project managers, and civil structural engineers.
What specific structural information is required to receive an accurate CAD layout and formal quotation?
- Warehouse Architectural Drawing: Architectural DWG or PDF showing wall lines, column grids, overhead building clearance, fire exits, and dock doors.
- Pallet Profile: Exact width, depth, and loaded height (including pallet base), plus the maximum gross weight per pallet.
- Forklift Specifications: Turning radius, mast closed height, maximum collapsed lift height, and minimum right-angle stacking aisle width (Ast).
- Ambient Operating Parameters: Temperature range (e.g. ambient dry or -25°C frozen), relative humidity, and geographic seismic building codes.
How does HEDA Shelves prevent corrosion on steel racking deployed in coastal or high-humidity ports?
What structural safety factors and engineering calculation standards govern your manufacturing?
What is the difference between Q235B and Q355B steel in heavy-duty racking design?
How are racking shipments packed to prevent container transit damage and reduce shipping costs?
Do you offer on-site installation guidance or turnkey assembly support for overseas clients?
Can HEDA Shelves accommodate custom OEM profiles and colors for regional racking distributors?
What are standard production lead times and typical ocean freight transit durations?
Request Your Free CAD Layout & Container Calculation
Ready to maximize your warehouse cubic volume and lower your landed cost per pallet position? Send your building dimensions and pallet requirements. Our senior engineering team will calculate frame loading, recommend optimal layout spacing, and issue an itemized quotation within 24 hours.
