Factory-Engineered Industrial Pallet Racks & Storage Systems
Constructed from high-tensile Q235B and Q355B cold-rolled structural steel, every system is engineered to handle pallet payloads from 1,000 kg up to 5,000 kg per level. Select standard configurations or request custom CAD/BIM bay profiling.
Anti-Corrosion / Water Treatment
Heavy Duty Anti Rust Water Treatment 1200x750x2400mm 300kg 4 Layer FRP Storage Rack
Designed specifically for aggressive humidity, wastewater processing facilities, and chemical battery warehousing where zero metallic oxidation is required.
VNA / High Bay
Industrial VNA Steel Pallet Rack Selective Double Deep Forklift 2 Ton Pallet Racking
Engineered for narrow-aisle turret trucks and high-density distribution centers. Maximizes vertical cube space up to 16 meters without beam deflection.
Multi-Tier Pick

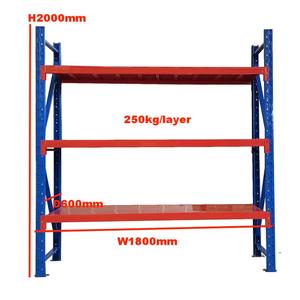

Adjustable Medium Duty Metal Steel Warehouse Storage Loading Long Span Racks 3 Layers
Modular heavy-duty hand-loaded shelving solution for automotive components, retail fulfillment hubs, and heavy boxed inventory. Quick drop-in step beam locking.
Heavy Selective
Peterack PT-HD Heavy Duty Cold Rolled Steel Selective Pallet Rack Galvanized Finish
Cold-rolled high-strength selective pallet frame engineered for general manufacturing warehouses, fast-turnaround consumer distribution, and 3PL multi-client centers.
Multi-Layer Stacking
Multi Level Heavy Duty Shelf Multi Layer Shelf Garage Stacking Shelf Storage Rack
Reinforced industrial multi-level racking engineered for heavy machine tooling, motor blocks, dies, and dense workshop raw material buffer storage.
Push-Back / LIFO
Industrial Push Back Rack For Storage LIFO Rack Warehouse Racking System
Dynamic gravity-fed cart system. Reduces forklift travel aisles by providing multi-pallet deep storage where individual SKU lane access is preserved.
Heavy-Duty Warehouse
China Factory Heavy Duty Industrial Steel Shelf Storage Rack with Powder Coating High Capacity
Our flagship heavy structural storage frame utilizing double interlocking safety beam pins and high-precision CNC punched upright columns for extreme stability.
Galvanized Stillage
Heavy Duty Industrial Galvanized Metal Steel Storage Stacking Pipe Pallet Stillages Racks
Heavy-duty transportable post pallet system. Eliminates fixed racking footprint in fabrication shops, tube processing mills, and outdoor staging yards.
Heavy Duty Racking Systems: Engineering Selection Matrix
Selecting industrial storage systems requires analyzing throughput velocity, building clear height, slab load ratings, and seismic coefficient criteria. Review our structural comparative baseline below.
| Racking Architecture | Pallet Selectivity | Storage Density | Floor Area Utilization | Max Payload / Bay | Standard Design Code |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate | Standard (40-45%) | 35% - 40% | Up to 24,000 kg | EN 15512 / RMI MH16.1 |
| Very Narrow Aisle (VNA) | 100% Immediate | High (55-65%) | 50% - 60% | Up to 28,000 kg | FEM 10.2.02 / DIN 18800 |
| Drive-In / Drive-Through | Last-In, First-Out (LIFO) | Maximum (75-85%) | 65% - 75% | Up to 30,000 kg | EN 15620 / AS 4084 |
| Radio Shuttle Automation | LIFO or FIFO Mode | Ultra-Dense (80-90%) | 70% - 85% | Up to 32,000 kg | CE / EN 528 / ISO 12100 |
| Push-Back Cart Racks | LIFO (2-6 Deep) | High (65-70%) | 55% - 65% | Up to 20,000 kg | RMI MH16.1 |
| Heavy Cantilever Racks | 100% Open Access | Length Specialized | Linear Continuous | Up to 3,000 kg/Arm | EN 1993-1-3 (Eurocode 3) |
Metallurgical Rigor & Frame Deflection Criteria
When purchasing heavy-duty warehouse racks from China, the primary engineering pitfall is specifying thickness alone without auditing the yield strength ($f_y$) and ultimate tensile strength ($f_u$) of the base steel coils. At Guangzhou Heda Shelves Co., Ltd., we utilize continuous roll-formed cold-rolled steel certified to Q235B ($f_y \ge 235\,\text{MPa}$) for medium span profiles and Q355B ($f_y \ge 355\,\text{MPa}$, equivalent to European S355JR / ASTM A572 Grade 50) for heavy-duty upright frames and long-span box beams carrying loads over 3,000 kg per level.
Under FEM and EN 15512 specifications, vertical beam deflection under fully loaded conditions must never exceed $\delta \le L / 200$ (where $L$ is the clear span between uprights). For automated crane-served and VNA turret truck operations, our engineers apply a tighter limit of $\delta \le L / 300$ to prevent mast sway and pallet catch hazards. Each beam connector includes a mechanical 3-point or 4-point claw weld that engages tightly with upright teardrop or diamond punching, held permanently secure with high-shear zinc-chromate safety pins rated to resist upward forklift impact displacements greater than $5\,\text{kN}$.
Future Procurement & Sourcing Trends (2025–2030)
Global supply chain directors are shifting from transactional rack sourcing to lifecycle asset management. Three dominant structural shifts are dictating major warehouse capex allocations.
1. Automation-Ready Tolerances (AS/RS & AMR Integration)
Modern factories no longer install pure manual racking. Facilities require millimeter-level tolerances ($\pm 1.0\,\text{mm}$ profile straightness over 12-meter frames) to accommodate future autonomous mobile robots (AMRs), automated storage and retrieval system (AS/RS) cranes, and laser-guided turret vehicles. Procurement contracts now demand digital twin 3D BIM models ready for warehouse execution system (WES) software synchronization.
2. Carbon-Audited Steel & Cold-Forming Efficiency
With EU CBAM (Carbon Border Adjustment Mechanism) and global ESG audits accelerating, enterprise buyers evaluate the embedded carbon footprint of imported steel. By utilizing ultra-high-yield continuous roll forming, profile wall thickness can be engineered from 2.5mm down to 2.0mm without compromising moment of inertia ($I_x, I_y$), cutting dead weight by 14% and significantly reducing ocean transit carbon emissions and customs duties per pallet position.
3. Landed TCO Optimization vs. Raw FOB Unit Pricing
Discerning procurement teams calculate Total Cost of Ownership (TCO). A lower FOB quotation often masks inefficient nesting design that wastes 30% of standard 40-foot High Cube (40HQ) container volume. Factory-direct engineering now incorporates disassembled modular uprights, bundled nested box beams, and container-optimized palletizing that drives ocean freight shipping utilization above 92%, substantially lowering total landed cost per bay.
Technological Advancements in Storage Racking Manufacturing
From advanced surface chemistry to active structural health monitoring, discover how modern China heavy-duty rack manufacturing has transformed into an engineering science.
Smart Load Monitoring & IoT Sensor Integration
Next-generation upright frames incorporate piezoelectric strain gauges and micro-sensor nodes embedded into critical bottom frame columns. These IoT sensors track live load deflection, dynamic impact forces from forklift collisions, and ground slab settlement over time, alerting facility managers through automated WMS dashboards before structural fatigue reaches dangerous plastic deformation thresholds.
Nanotech Zirconium Pretreatment & Electrostatic Coating
Replacing legacy iron-phosphate baths, Guangzhou Heda Shelves implements an 8-stage automatic immersion sequence: alkaline degreasing, ultrasonic rust stripping, dual rinsing, and nanotech zirconium conversion prior to electrostatic thermoset TGIC-free polyester powder coating ($60\text{--}90\,\mu\text{m}$ thickness). This ensures >1,000 hours of continuous ASTM B117 salt-spray resistance for high-humidity coastal and cold-chain warehouses.
Cryogenic Cold-Storage Steels (-30°C Impact Toughness)
Rapid expansion of pharmaceutical and frozen food distribution centers has driven development of specialized cold-formed steels with superior Charpy V-notch impact toughness at sub-zero temperatures (down to $-30^\circ\text{C}$). Standard commercial mild steels suffer from ductile-to-brittle transition when frozen, leading to sudden shear failures under forklift impacts. Our cold-chain racks prevent brittle fractures through micro-alloyed niobium-titanium grain refinement.
Why Global Supply Chains Trust Guangzhou Heda Shelves Co., Ltd.
Established in 2001, Heda Shelves operates as an industry-leading manufacturer with complete vertical integration: raw coil decoiling, continuous CNC punching, high-precision roll forming, robotized welding, and automated powder coating.
25+ Years Industrial Legacy
Over two decades of pure-play focus on storage engineering, executing 10,000+ completed warehouse installations across Europe, South Asia, the Middle East, and the Americas.
30,000 m² Facility & 30,000T Output
Our Guangzhou factory houses 30+ roll-forming lines, automated laser-cutting gantries, and robotic welding stations delivering reliable fulfillment for 100+ container orders monthly.
Free 24h Structural CAD & 3D Design
Our team of 30+ licensed structural engineers produces certified warehouse bay layouts, static load calculation sheets, and 3D realistic rendering within 24 hours of receiving site drawings.
Auditable Global Certifications
Rigorous QA systems certified to CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and full RoHS heavy-metal compliance.
End-to-End Production Traceability
Unlike trading intermediaries, Heda Shelves controls the entire manufacturing chain inside our Guangzhou campus. We verify steel coil chemistry upon arrival via spectrometer testing, maintain tight punching pitch tolerances of $\pm 0.1\,\text{mm}$ across all upright profiles, and test every robotic welding batch using ultrasonic flaw detection.
Whether you require selective pallet racking for distribution, long-span mezzanine platforms up to 1,000 kg/m², or cantilever arms for 12-meter steel bundles, every element arrives containerized with numbered installation marks, complete layout drawings, and video assembly documentation.
Frequently Asked Questions by Industrial Rack Buyers
Practical technical guidance for warehouse developers, operations heads, and procurement directors sourcing heavy-duty steel racks from China.
Q What information is needed to calculate a customized warehouse racking layout?
To provide an accurate CAD proposal and static calculation sheet, we need: (1) Warehouse architectural drawings (CAD or PDF) indicating column grid spacing, building clear height under joists, and emergency exit routes; (2) Pallet specifications including width, depth, height, and maximum loaded weight; (3) Forklift model, minimum turning aisle radius, and maximum mast lift reach; (4) Concrete floor slab thickness and compressive rating ($f'_c$); (5) Project geographical site for seismic zone coefficient calculation.
Q How do Chinese steel grades Q235B and Q355B compare to international standards?
Q235B has a minimum yield strength of $235\,\text{MPa}$ and tensile strength of $370\text{--}500\,\text{MPa}$, making it directly comparable to European S235JR (EN 10025) and US ASTM A36. Q355B offers a minimum yield strength of $355\,\text{MPa}$ and tensile strength of $470\text{--}630\,\text{MPa}$, matching European S355JR and ASTM A572 Grade 50. We use Q355B on high-load beams and tall uprights to provide an engineering safety factor $\gamma_m \ge 1.4$ under full static load.
Q How are heavy-duty racks protected against marine transit and coastal humidity?
All manufactured steel components pass through an 8-stage pre-treatment line including acid pickling to eliminate mill scale and zinc phosphating to provide crystalline corrosion anchoring. Components are then coated with TGIC-free electrostatic polyester powder ($60\text{--}90\,\mu\text{m}$) cured at $200^\circ\text{C}$. For coastal environments or cold-storage areas subject to condensation, we offer hot-dip galvanized finishes (HDG) per ASTM A123 with zinc thickness $\ge 65\,\mu\text{m}$ (500+ g/m²).
Q What are the permissible floor slab load ratings for heavy-duty racking?
Most industrial selective racking installations impose point loads ranging from $3,000\,\text{kg}$ to over $12,000\,\text{kg}$ per upright footplate onto the concrete floor slab. A standard industrial slab must be at least $150\text{--}200\,\text{mm}$ thick with reinforced rebar and minimum concrete compressive strength of $25\text{--}30\,\text{MPa}$ (C25/C30). Our engineering department calculates baseplate dimensions and anchor bolt embedding depth (typically M12x100mm up to M16x150mm mechanical wedge anchors) to prevent slab punching shear failure.
Q Can your factory manufacture custom beam lengths and non-standard upright profiles?
Yes. Guangzhou Heda Shelves is a genuine OEM/ODM production manufacturer. We operate automated roll-forming lines capable of adjusting box beam web heights from $80\,\text{mm}$ to $160\,\text{mm}$ and upright column widths from $80\,\text{mm}$ up to $140\,\text{mm}$. Hole punch pitch can be configured for $50\,\text{mm}$, $75\,\text{mm}$, or $76.2\,\text{mm}$ (3 inches) to match your existing fleet of racking profiles, with private-label OEM powder coat RAL colors available.
Q What is the standard container loading optimization for international ocean freight?
Racking profiles are heavy, dense, and long. To avoid ocean freight penalties and wasted space, upright frames are nested and strapped into rigid steel-channel cradles, while box beams are palletized with protective corrugated corners and heavy-duty shrink wrap. Small parts like footplates, shims, safety pins, and anchor bolts are crated in plywood boxes. A standard 40HQ container typically accommodates $22\text{--}26$ metric tons of racking, achieving over $90\%$ spatial volumetric efficiency.
Q How do you assist with on-site installation and assembly in overseas warehouses?
Every exported shipment is accompanied by detailed CAD bay elevation drawings, floor anchor grid plans, component part numbers, and video step-by-step assembly guides. For large distribution centers or multi-tier mezzanine platforms over 2,000 m², Guangzhou Heda Shelves can dispatch senior bilingual installation supervision engineers to oversee your local contractor team and conduct final load torque certification on site.
Q What quality testing reports are provided prior to export dispatch?
Our factory quality control unit delivers a complete quality docket with every export batch: (1) Raw material mill test certificates (MTC) showing chemical composition and yield/tensile metrics; (2) Coating adhesion cross-hatch test results and dry film thickness (DFT) verification; (3) Dimensional tolerance inspection logs ($\pm 0.5\,\text{mm}$); (4) Beam-connector static weld load test data; (5) Official CE Declaration of Conformity and ISO 9001:2015 inspection certificates.
Request a Certified Racking Layout & Factory-Direct Quote
Connect directly with Guangzhou Heda Shelves engineering specialists. We analyze your floor footprint, forklift kinematics, and pallet load profiles to deliver optimized storage density at genuine manufacturer direct pricing.
