Engineered Industrial Shelving & Pallet Racking Portfolios
Precision-rolled structural systems engineered to FEM 10.2.02 and RMI standards. Guaranteed load metrics, extreme anti-corrosion treatments, and seamless adaptability for high-throughput supply chains.

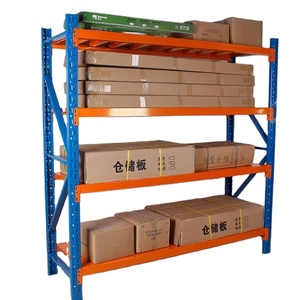

Steel Powder Coating Bolted Stacking Racks Adjustable Warehouse Shelf for Industrial Garage Use Custom Pallet Racking
Heavy-duty structural storage rack configured with cold-rolled Q235B structural steel, high-retention lock pins, and powder-coated finishing engineered for rough workshop environments.

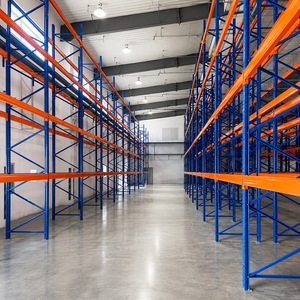

Steel Storage Rack System 1000kg Electrostatic Powder Coating Selective Pallet Racking With Steel Decking For Logistics Center
Optimized 1000kg-per-tier selective storage system providing 100% pallet accessibility. Equipped with reinforced hat-channel ribbed steel decking for fire safety and multi-SKU logistics.
Industrial Metal Shelving Garages Warehouses Medium Duty Boltless Rack 4Layer Storage Steel Shelves Carton Corrosion Protection
Fast-assembly rivet design boltless framework. Four tiers of cold-formed steel shelves designed for ergonomic manual carton picking, packing lines, and secondary e-commerce distribution centers.
5 Tier Cheap Light Duty Shelving Metal Storage Slotted Angle Shelf or Rack
Economic utility shelving featuring continuous punched angle profiles. High strength-to-weight ratio, multi-tier adjustment versatility, and pre-treated corrosion-inhibiting powder coat finish.
Supermarket Warehouse Light-Duty 4 Tier Steel Storage Rack 5 Boltless CE Certified Corrosion Protection Pallet Rack Low Price
CE-certified retail and commercial rear-storage shelving. Incorporates 5-fold upright sections for torsional stability, safety locking tabs, and scratch-resistant epoxy polyester resin coats.
Light Duty Wire Shelving Standard High Quality Storage Rack System Use Steel Racks for Warehouse
Electro-welded wire mesh open deck architecture maximizing ESFR sprinkler penetration, overhead lighting spread, and ventilation in temperature-controlled cleanroom or food operations.
OEM ODM Custom Pallet Lane Design Project Planning Service Space Maximizing Intelligent Shuttle Rack for Multi-batch Goods Stock
Semi-automated radio shuttle lane system engineered for dense pallet matrices. Supports bi-directional FIFO and LIFO logic, minimizing lift truck lane traversal and operator transit risks.
Slide System Warehouse Equipment Steel Shelving Industrial Metal Storage Shelves Push-Back Push Pallet Racking for Sale
High-density dynamic gravity cart design capable of nesting up to 6 pallets deep. Maximizes clearance usage without requiring material handling equipment to enter structural aisles.
Technical Benchmark: Global Structural Standards and Sourcing Matrix
When selecting a prime Chinese racking and industrial shelving manufacturer, corporate procurement divisions must navigate far beyond simple steel pricing per metric ton. True supply chain performance demands stringent structural engineering, dynamic deflection control under seismic stress, and lifecycle surface durability.
Engineering Imperative: The yield strength of cold-formed profiles directly limits real-world payload capacity. Certified suppliers utilize high-grade Baosteel Q235B and Q355B micro-alloyed carbon coils, strictly conforming to European FEM 10.2.02, American ANSI MH16.1 (RMI), and Australian AS 4084 guidelines.
| System Architecture | Structural Selectivity | Space Utilization | Standard Load / Tier | Key Industrial Applications |
|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Pick | 35% - 40% Floor Ratio | 1,000 - 4,500 kg | Fast-turnover 3PLs, FMCG distribution, retail hubs |
| Radio Shuttle Automation | Semi-Automated Matrix | Up to 85% Density | 500 - 1,500 kg | Deep-freeze cold storage, food processing, buffer depots |
| Push-Back Carts | LIFO Density (2-6 Deep) | 65% - 75% Footprint | 800 - 2,000 kg | Medium SKU volumes, high-bay factory buffers |
| Industrial Boltless Shelving | Manual Cartons / Totes | 50% Multi-tier Stacking | 100 - 800 kg | E-commerce sortation centers, spare parts, hardware |
| Structural Cantilever | 100% Linear Unobstructed | Optimized for Length | 1,000 - 3,000 kg (Arm) | Steel pipes, extrusions, timber, raw metal plate |
Surface Passivation and Climate-Tuned Powder Coating
A primary failure point in exported industrial shelving is micro-corrosion occurring during maritime shipping or operation in unconditioned, high-humidity climates (e.g., equatorial monsoons, coastal ports, chemical warehouses). Premium Chinese manufacturers mandate a comprehensive 10-stage surface conversion protocol:
- Automated Shot Blasting & Degreasing: Removes all oil mill scale, creating an anchor profile to Sa 2.5 standard.
- Pickling & Zirconium/Zinc-Phosphating: Forms a dense, nano-crystalline barrier layer ensuring superior molecular adhesion.
- Corona Electrostatic Powder Application: Utilizing exterior-grade thermosetting polyester powder resins applied between 60 to 90 microns dry film thickness (DFT).
- High-Temperature Polymerization: Cured at 200°C for seamless resistance against chemical spillage, salt mist (exceeding ASTM B117 500-hour testing), and impact chipping.
Future Sourcing & Procurement Trends in Warehouse Storage Systems
As supply chain logistics transition through turbulent economic landscapes, modern global purchasers are radically adjusting how racking and shelving infrastructures are specified, sourced, and financed.
ASRS-Ready Standardization
Companies are sourcing modular static racks engineered with micro-tolerances ready for autonomous mobile robots (AMR) and shuttle retrofits without requiring structural replacement.
Direct Mill-to-Site Integration
Cutting intermediate local brokers to engage direct Tier-1 Chinese manufacturers equipped with in-house structural simulation, rapid prototyping, and BIM (Building Information Modeling) output.
Carbon-Optimized Steel Profiles
Procurement teams increasingly benchmark the embodied carbon and recyclability of cold-rolled steel coils, prioritizing suppliers with scrap-reducing robotic roll-forming lines.
Technological Evolution in Warehouse Racking Systems
The transition from pure passive steel frameworks to dynamic kinetic structures is defining the next generation of warehouse engineering:
- Structural IoT & Deflection Sensors: Fiber-optic and strain gauge sensors integrated into critical upright columns to monitor real-time beam overloading, floor slab settlement, and accidental forklift collision impulses.
- Ultra-High-Bay Narrow Aisle (VNA) Engineering: Upright heights scaling past 16 meters requiring laser-aligned column roll forming with tolerance deviations under 1.0mm per 10m run.
- Cold-Chain Anti-Brittle Metallurgy: Formulations that incorporate elevated nickel and manganese traces to avoid the ductile-to-brittle transition when operating down to -35°C in frozen automated food centers.
Enterprise Edge: Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative global manufacturer of premier warehouse storage systems, heavy-duty industrial pallet racking, and specialized retail shelving architectures.
End-to-End In-House Manufacturing
Operating a sprawling 30,000 square meter modernized manufacturing complex in Guangzhou, China. Total process ownership encompasses heavy coil slitting, multi-stage automated cold-bending, continuous column hole punching, robotic welding jigs, and an advanced automated double-track electrostatic powder coating plant capable of continuous 30,000-ton monthly output.
Certified Compliance & Traceability
Quality control follows strict ISO 9001:2015 frameworks (Cert. No. 18624Q00169R0M) and European CE accreditation (EN 1090-1 / No. 2435-CPR-8605159). Each steel batch is mill-certified with mechanical yield test reports, chemical spectroscopic analysis, and 100% dimensional traceability.
Free Engineering CAD & 3D Structural Simulation
HEDA's dedicated structural engineering bureau provides turnkey, complimentary CAD floor layout calculations, dynamic seismic response estimations, and full 3D visual renderings within 24 hours of receiving warehouse blueprints and floor load specifications.
Worldwide Sea Freight & Deployment Experience
Having completed over 10,000 medium to large installations across 120+ nations, our export packing features high-density container bundling, shrink wrapping, and designated corner protectors, guaranteeing zero container distortion and low landed cost per pallet position.
Procurement & Engineering FAQ: Industrial Shelving
How do you guarantee load capacity ratings for overseas projects?
Every shelving and racking system is engineered via FEA (Finite Element Analysis) according to international FEM or RMI load criteria. We account for both live product weight, dead steel load, dynamic forklift placement impact, and local site seismic categories before cutting steel.
What minimum data is required to receive a free CAD floor layout?
Provide your warehouse internal clear height, column pitch grid, concrete floor slab depth and compressive strength, pallet dimensions (Length x Width x Height including cargo overhang), gross pallet weight, and your forklift turn radius/mast reach limits.
Can HEDA accommodate custom RAL colors and OEM branding?
Yes. Our in-house electrostatic powder line supports comprehensive RAL color customizations (e.g., standard Safety Orange RAL 2004, Ultramarine Blue RAL 5002, or custom company profiles) along with customized punch holes, embossed badges, and bespoke carton labeling for local distributors.
How do you assist with international installation and assembly?
Every container includes an exhaustive project assembly manual with component part matching numbers, torque tolerances, and 3D step-by-step schematics. Furthermore, our senior installation project managers are available for remote video guidance or on-site supervision for large-scale operations.
Upgrade Your Facility with Engineering-Grade Racking
Engage direct with our senior warehouse engineers to formulate high-density layouts, calculate floor slab structural tolerances, and maximize storage efficiency with factory-direct pricing.
