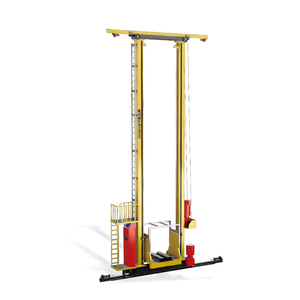

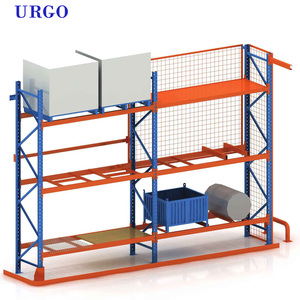

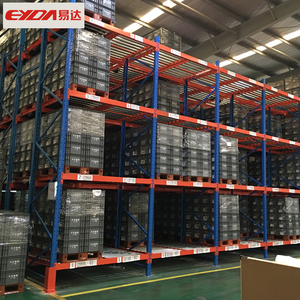

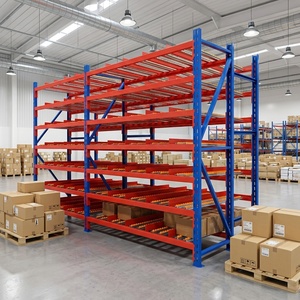

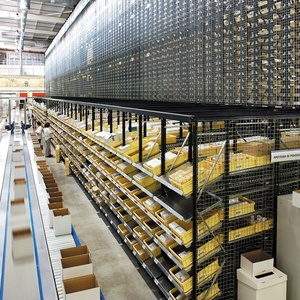

Precision-Engineered Pallet & Dynamic Racking Portfolios
Manufactured strictly under ISO 9001:2015 and CE certification standards using cold-rolled Q235B and Q355B structural steel. Explore our flagship single selective and compatible storage variants for modern intralogistics.

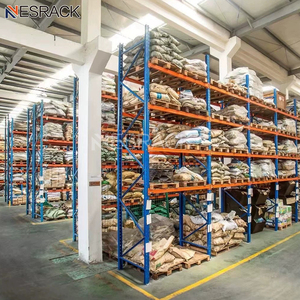

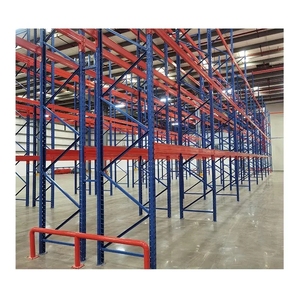

Single Selective Pallet Racking: Engineering Standards, Structural Mechanics & Factory Sourcing in China
In modern high-throughput intralogistics, Single Selective Pallet Racking remains the undisputed foundational infrastructure across global distribution centers, third-party logistics (3PL) terminals, pharmaceutical cold chains, and retail fulfilment networks. The engineering thesis of single selective racking is defined by its ability to deliver 100% immediate pallet selectivity without double-handling, facilitating uninhibited accessibility to every individual Stock Keeping Unit (SKU) at all warehouse elevation levels.
When engineering and sourcing industrial racking systems directly from Chinese manufacturing hubs, global procurement managers and logistics directors face a complex array of structural codes, metallurgical compositions, weld seam integrity metrics, and seismic safety requirements. Navigating these technical parameters demands an expert understanding of cold-formed structural steel behavior under static and dynamic loading.
1. Metallurgical Profiles & Mechanical Integrity: Q235B vs. Q355B Cold-Formed Steel
A primary failure point in budget pallet racking procurement stems from suboptimal steel grade specification. Leading Chinese racking manufacturers like Guangzhou Heda Shelves Co., Ltd. utilize strictly certified high-tensile hot-rolled coil (HRC) slit into precision strips and cold-roll formed into omega-shaped or tubular closed sections.
The standard benchmark for horizontal load beams is Q235B structural carbon steel, delivering a minimum yield strength of 235 MPa and ultimate tensile strength of 370–500 MPa. For heavy-duty upright frames exceeding 9–15 meters in clear warehouse height, or installations subjected to localized ground acceleration (seismic design categories C, D, and E), our engineering team utilizes high-strength Q355B low-alloy steel (yield strength ≥ 355 MPa). This high tensile capacity ensures exceptional rigidity while preventing localized plate buckling under maximum point and distributed load configurations.
| Design Parameter | Standard Single Selective | Very Narrow Aisle (VNA) | Heavy-Duty Teardrop System |
|---|---|---|---|
| Direct Pallet Selectivity | 100% Instantaneous Access | 100% Instantaneous Access | 100% Instantaneous Access |
| Aisle Width (AST) | 3.0 m – 3.8 m (Counterbalance / Reach) | 1.6 m – 1.9 m (Turret / Man-up VNA) | 2.8 m – 3.5 m (Standard Reach / Forklift) |
| Floor Area Utilization | 35% – 42% Active Storage Footprint | 55% – 65% Optimized Utilization | 38% – 45% Active Storage Footprint |
| Structural Deflection Limit | L / 200 (FEM 10.2.02 / ANSI MH16.1) | L / 250 (Stricter Deflection Tolerance) | L / 180 to L / 200 (RMI Compliant) |
| Upright Section Geometry | 80×60, 90×70, 100×70, 120×95 mm | 100×70, 120×95, 140×100 mm | 76.2×76.2, 80×70 mm Omega Profile |
| Beam Types & Connectors | Twin/Interlocking Box Beams, 3-5 Claws | Box Beams with Bolted/Welded Retainers | Step Beams for Wire Decking with 3-Pin Latch |

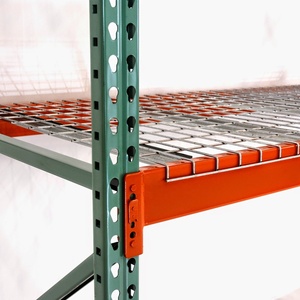

| Vertical Hole Pitch | 50 mm / 75 mm Adjustable Metric Pitch | 50 mm Micro-Pitch Adjustments | 50.8 mm (2-inch) Teardrop Standard |
2. Structural Compliance: Designing to FEM 10.2.02, RMI (ANSI MH16.1), and AS4084 Standards
Top-tier Chinese manufacturers do not rely on generic generic rules of thumb. Structural framing calculation must rigorously integrate international design standards matching the client’s geographic jurisdiction:
• FEM 10.2.02 / EN 15512: The European standard governs steel static storage racking systems, mandating limit state design principles, partial safety factors for actions and material strengths, and empirical beam-end connector moment tests.
• RMI (ANSI MH16.1): The North American benchmark detailing specific test methods for column torsional buckling, perforated stub column compressive resistance, and beam-to-column rotational stiffness.
• AS 4084-2023: The Australian standard governing steel storage racks, enforcing stringent seismic base anchorage, upright impact allowances (≥ 400 J energy absorption), and vertical deflections limited to L/200 under total design working load.
3. 10-Stage Precision Production: From Slitting to Electrostatic Polymer Powder Coating
Durability begins at the factory floor. Low-cost workshops often suffer from paint delamination, hole-pitch dimensional drift, and weld brittleness. At HEDA Shelves, every batch follows a controlled 10-stage industrial manufacturing protocol:
1. Raw Steel Inspection: Spectrometer and universal tensile testing verify carbon content and yield thresholds.
2. Precision Steel Cutting: CNC shearing ensures profile edges remain free of micro-cracks and burrs.
3. Automated Multi-Stage Punching: Continuous mechanical presses punch precise 50mm, 75mm, or 2" teardrop hole patterns with cumulative tolerance < 0.5mm across a 12m length.
4. Precision Cold Bending: Multi-roller forming lines shape the steel through sequential stations to eliminate residual internal stress.
5. Omega Upright Profile Roll-Forming: Specialized rollers impart longitudinal stiffening ribs that boost buckling resistance by up to 22%.
6. Surface Edge Polishing & Deburring: Removing laser dross and rough edges prevents operator laceration and ensures pristine paint adhesion.
7. Robotic Beam Connector Welding: Argon-shielded continuous robotic MIG welding ensures absolute structural penetration between the beam profile and the claw connector.
8. Immersion Pickling & Phosphating: A thorough chemical wash strips all surface scale, oxidation, and lubricants, depositing a micro-crystalline iron phosphate barrier.
9. Electrostatic Powder Coating: Automated reciprocating spray guns apply thermosetting polyester or epoxy powder at 60–80 microns thickness, cured at 180°C–200°C for exceptional impact and salt-spray resistance.
10. Laser QC Verification & Export Bundling: Dimensional verification, load deformation sample audits, and heavy wooden-cradle seaworthy container bundling.
State-of-the-Art Racking Manufacturing & Quality Control
Inside Guangzhou Heda Shelves Co., Ltd.'s 30,000 m² intelligent production facility.
Custom Layout & FEA Design
Parametric 3D CAD modeling, clearance analysis, and finite element structural load simulation.
Roll-Forming & Punching
Continuous CNC roll-forming lines creating high-yield omega uprights and interlocking box beams.
Pretreatment & Coating
Full pickling, phosphating, and electrostatic powder coating cured in continuous high-heat tunnels.
Seaworthy Export Packing
Precision container load planning to maximize 40HQ container cube utilization and eliminate transit damage.
Future Procurement Trends in Industrial Storage Racking (2025–2030)
Strategic analysis for enterprise procurement teams navigating supply chain modernization, warehouse automation, and ESG compliance.
Hybrid AS/RS & Autonomous Mobile Robot (AMR) Readiness
Modern procurement is transitioning rapidly away from standalone static racking. Warehouses now specify single selective racks with tightened floor-to-beam clearances, floor guide tracks, and barcode target fiducials to accommodate autonomous forklifts and reach AMRs. Top suppliers design racking upright frames with standardized bracket interfaces for retroactive shuttle and stacker-crane installations.
High-Strength Low-Alloy (HSLA) Ultra-Thin Steel Profiling
With global freight and raw material volatility, leading Chinese factories are pioneering cold-formed micro-alloy steels that reduce component gross weight by 12–18% while enhancing ultimate yield limits. This metallurgical advancement significantly curtails maritime shipping weight and import duties without degrading maximum pallet load ratings.
IoT Structural Health Monitoring & Collision Telemetry
Forward-thinking supply chain operators are embedding fiber-optic strain gauges and wireless impact sensors into rack upright protectors. Real-time telemetry detects structural forklift collisions, alerts safety coordinators to hidden micro-fractures, and records long-term seismic displacement, preventing catastrophic structural collapse before it occurs.
Low-Carbon Green Steel & Zero-VOC Powder Formulations
Scope 3 carbon emissions auditing is actively reshaping international procurement tenders. Chinese manufacturers are rapidly converting to solar-powered manufacturing lines, recycled steel scrap electric arc furnace (EAF) feedstock, and heavy metal-free powder coatings that meet rigorous EU RoHS and REACH non-toxic certification benchmarks.
Direct-from-Source Factory Partnerships & Virtual Audits
International buyers are systematically bypassing intermediary trading brokers to partner directly with source factories in South China. Utilizing real-time 3D CAD collaborative layout design, mill test certificate (MTC) tracking, and live video factory audits, procurement directors achieve up to 25–35% landed cost reductions and significantly shorter production lead times.
Universal Component Interchangeability & Omnichannel Scaling
As SKU velocity cycles fluctuate due to omnichannel and micro-fulfillment demands, facilities demand selective racking that easily converts into carton live flow, garment hanging, or multi-tier mezzanine pick-towers. Modular connector claws with tool-free locking mechanisms allow warehouse staff to adjust beam levels in minutes.
Frequently Asked Questions on Sourcing Racking from China
Authoritative technical guidance compiled by senior structural logistics engineers.
Manufacturer Advantages: Guangzhou Heda Shelves Co., Ltd.
Two decades of relentless manufacturing excellence, engineering innovation, and end-to-end supply chain reliability.
Over 25 Years Manufacturing Experience
Founded in 2001 in Guangzhou, South China, HEDA Shelves has evolved from an industrial workshop into an internationally recognized storage systems manufacturer with more than 10,000 successful projects across 120+ countries worldwide.
Full In-House End-to-End Production Chain
We control the complete manufacturing cycle across our 30,000 m² production complex: coil slitting, cold roll-forming, high-speed automated punching, robotic welding, continuous pickling-phosphating, and powder coating with zero sub-contracting.
Massive Capacity: 30,000 Tons Monthly Output
Backed by over 300 skilled technicians, automated roll-forming lines, and extensive steel inventory reserves, we guarantee rapid turnaround times for fast-track distribution center projects, fulfilling standard container orders in 15 to 20 working days.
Complimentary CAD Layout & 3D Modeling
Our dedicated structural engineering team prepares comprehensive AutoCAD floor layouts, 3D BIM models, and structural calculation sheets within 24 hours of enquiry, giving you clear visibility into pallet capacity and aisle ergonomics before ordering.
Fully Certified Quality Assurance
Every structural profile complies with European CE (2435-CPR-8605159), ISO 9001:2015, and RoHS standards. We provide material certificates, ultrasonic weld inspections, and continuous static load testing to ensure zero structural failures.
Global Port Delivery & Turnkey Export Support
Direct export routes from South China ports (Guangzhou, Shenzhen, Foshan) to key international trade gateways across South Asia, North America, the Middle East, Europe, and Latin America, backed by full customs clearance documentation and maritime insurance.
Ready to Optimize Your Warehouse Storage Density?
Contact our structural storage engineers today for a complimentary warehouse design review, customized AutoCAD layout, and competitive factory-direct quote tailored to your exact SKU profile.
