Customized Warehouse Gravity Pallet & Carton Flow Rack Shelving
Lineside roller tracking built with modular cold-rolled steel, designed for dual-lane pallet rollouts and carton gravity distribution.
Engineered Product Lines
High-Efficiency Carton & Pallet Flow Racking Configurations
Engineered for high-SKU distribution, continuous order fulfilment, and high-frequency assembly operations. Streamline your pick-face ergonomics with full gravity feed control.
Gravity Flow Roller Order Picking Racking System
High-throughput manual picking structure with adjustable decline gradients, continuous supply separation, and multi-tier picking aisles.
Smart Pick to Light Digital Racking System
Integrated 4-digital light modules and visual sorting indicators designed for paperless picking accuracy and zero-defect order sorting.
Carton Flow Rack Gravity Roller Storage Shelves
Heavy-duty OEM factory construction incorporating smooth polypropylene wheels, galvanized sheet dividers, and rigid box beams.
Gravity Carton Tilt Flow Rack for Assembly Storage
Ergonomic presentation tilt-tray design ensuring parts face assembly workers directly, shortening reach distances and cycle times.
Aluminum FIFO Gravity Flow Lane Rail System
Precision extruded aluminum alloy track runners with high-load polyurethane rollers, engineered for low noise and long service cycles.

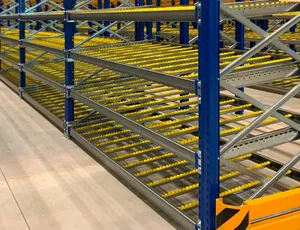

FIFO Carton Flow Gravity Roller Storage System
Full-depth dynamic bed tracks engineered for automatic inventory rotation in FMCG, pharmaceutical, and electronic component warehouses.
Adjustable Wheel Track Shelving for Order Picking
Fully modular bay system featuring toolless height adjustments, variable pitch configurations, and custom lane-guide separation.
25+
Years Engineering Expertise
30,000m²
Integrated Production Hub
30,000Tons
Monthly Manufacturing Capacity
120+
Global Export Destinations
Factory-Direct Authority
Why Tier-1 Intralogistics Integrators Source from Us
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. provides certified, heavy-duty storage engineering backed by verifiable structural validation.
Certified Manufacturing
Full production compliance under CE Certification (No. 2435-CPR-8605159) and ISO 9001:2015 Quality Management standards (Certificate No. 18624Q00169R0M).
Complimentary CAD & 3D Modeling
Full engineering layout consultation within 24 hours. We evaluate floor load bearing, SKU volume velocity, seismic zones, and forklift clearance at zero upfront cost.
10-Stage Precision Fabrication
Continuous quality control encompassing roll forming, automated column slot punching, chemical pickling and phosphating, followed by heavy-duty electrostatic powder coating.
Export & Container Packaging
Export-ready steel strapping, shock-absorbing corner buffers, and container packing optimization for direct sea routes to Nhava Sheva, Chennai, Chattogram, Colombo, and Karachi.
Engineering Principles of High-Performance Pick Flow Racking
Pick flow rack systems—often referred to throughout intralogistics engineering as carton flow, roller track racking, or dynamic lineside storage—operate on continuous inclined gravity planes. By separating replenishing aisles from dedicated pick faces, dynamic flow beds completely eliminate order-picker travel time into active replenishment channels. The result is a strictly enforced First-In, First-Out (FIFO) inventory rotation that reduces picker foot-travel by up to 75% compared to conventional static wide-aisle shelving.
A typical carton flow bay comprises upright frames cold-rolled from high-grade Q235B steel, horizontal support beams fitted with adjustable slope brackets, and modular wheel beds. Wheel tracks employ engineered thermoplastic polymer wheels or zinc-plated steel rollers mounted on durable galvanized steel or extruded aluminum side rails. When cases are loaded from the charging aisle, gravity pulls them down an inclination gradient (typically calculated between 2.5% to 5.0% depending on carton weight and floor surface coefficient). As an operator removes the lead carton at the picking face, trailing packages immediately advance, automatically replenishing the pick station without electrical or pneumatic utility consumption.
| Engineering Dimension | Standard Specifications | Heavy-Duty Industrial Duty | Operational Impact |
|---|---|---|---|
| Frame Profile & Steel Grade | 55×47×1.5mm / Q235B cold-rolled | 80/90/100×68×2.0mm / Q235B-Q345 | Guarantees structural elasticity under full dynamic load capacity. |
| Roller Track Load Rating | 15 kg to 45 kg per linear metre | Up to 120 kg per linear metre | Prevents rail deflections that impede continuous package progression. |
| Inclination Range | 2.0° – 3.5° (Carton Flow) | 3.0° – 5.5° (Tilted Presentation) | Calibrated precisely to match carton packaging material friction. |
| Surface Protection | Electrostatic Epoxy-Polyester 60–80μm | Pre-galvanized / Hot-dip galvanized | Immune to peeling in coastal air, monsoonal humidity, and cold stores. |
| Picking System Integration | Barcode labeling / Paper pick slots | Pick-to-Light (PTL) / Put-to-Wall | Reaches up to 600 picks/hour with near-zero scanning errors. |
Strategic Procurement Trends: How Modern Distribution Centers Are Evolving
As international supply chains shift toward omnichannel distribution and micro-fulfillment hubs, procurement managers are reassessing warehouse storage investments. Purchasing decisions have expanded beyond simple steel tonnage pricing toward total system productivity and automated integration capabilities.
1. Hybrid Pick-to-Light & Sensor Automation
Static gravity racks are rapidly transitioning into smart digital fulfillment stations. Enterprise buyers now require pre-configured wire channels, power drop tracks, and snap-fit mounting rails for Pick-to-Light (PTL) sensor arrays. These systems interface directly with Warehouse Management Systems (WMS) to guide operators via bright LED indicators, cutting training times and eliminating picking errors.
2. Dynamic Modular Lane Reconfigurability
E-commerce SKU churn demands rapid shelf retooling without structural welding or specialized tools. Emerging procurement standards emphasize universal drop-in roller beds that accommodate varying box sizes on demand. Adjustable full-width aluminum rollers and snap-in dividers allow operators to resize pick lanes in minutes to match seasonal SKU shifts.
3. Harsh-Climate Corrosion Engineering
With massive supply chain growth across coastal manufacturing hubs in South and Southeast Asia, resistance to humidity and seasonal monsoon moisture has become a central procurement criterion. Bidders must demonstrate chemical pretreatments including acid pickling, multi-stage phosphating, and marine-grade outdoor epoxy powder finishes.
Technological Frontiers: The Future of Pick Flow Racking Systems
The flow rack sector is experiencing accelerated technological transformation. Rather than remaining isolated mechanical shelves, modern installations function as synchronized intake and sortation nodes within complex logistics ecosystems:
Integration with Autonomous Mobile Robots (AMRs): Modern pick flow racks are increasingly designed with automated charging faces. Mobile replenishment robots automatically deliver cartons directly into the rear feed tracks, while human picking crews or robotic picking arms pick from the front aisle. This architecture provides total physical separation between automated machinery and human workers, ensuring both safety and uninterrupted fulfillment speed.
Low-Decibel Polymer Rollers with Integrated Brake Regulators: High-speed fulfillment hubs generate constant ambient noise from cartons travelling across steel rollers. Next-generation installations integrate engineering-grade nylon wheel compositions, noise-dampening axle bushes, and magnetic centrifugal speed controllers on extended-run tracks to keep impact speeds safe and warehouse noise levels under 65 dBA.
Ergonomic Tilting Presentation Trays: To combat repetitive strain injuries and picker fatigue, forward shelf frames now incorporate angled presentation trays. Dropping the front lip of the picking shelf at an angle of 15° to 25° gives the picker direct visual and physical access into the open carton, increasing picking cycle speed by up to 28% while minimizing back strain.
Procurement Knowledge Base
Frequently Asked Questions on Pick Flow Racking
Key technical, installation, and engineering considerations when ordering factory-direct systems from China.
Q: How is the correct shelf decline angle determined for mixed products?
Standard carton flow systems operate reliably at an angle of 3.0° to 3.5° (approximately 50mm drop per metre of lane depth). Rigid plastic totes with smooth flat bottoms run effortlessly at 2.5°, whereas corrugated cardboard boxes with uneven bottom surfaces or heavier weights may require 4.0° to 4.5°. Our CAD engineers model your package weights and test actual carton samples to specify the ideal gradient.
Q: What is the typical installation and assembly process for international sites?
All flow rack upright frames, cross beams, roller tracks, and divider rails are manufactured on CNC machinery with numbered component labeling. We provide detailed CAD installation blueprints, component packing lists, and step-by-step 3D assembly videos. A local mechanical contractor can erect an entire 1,000-bay installation using standard hand tools without on-site welding.
Q: How do your pick flow racks withstand coastal and tropical warehouse humidity?
Every steel component undergoes an automated 10-stage preparation cycle including chemical degreasing, acid pickling to eliminate mill scale, and zinc-phosphate conversion coating before powder application. We cure an architectural-grade epoxy-polyester powder coat at 180°C–200°C, producing an impervious 60–80μm barrier that passes rigorous salt-spray corrosion tests.
Q: Can Pick-to-Light (PTL) hardware be retrofitted onto existing flow racks?
Yes. Our beam profiles can be ordered with pre-engineered frontal mounting extrusions that clip standard electronic display units, sensor arrays, and wiring harnesses directly onto the pick face. The modular channels protect cabling from carton impacts while keeping LED pick indicators clearly visible to operators.
Q: What documentation is required to receive a free engineering layout proposal?
To produce an optimized CAD proposal and load calculation within 24 hours, our design team needs: (1) Warehouse architectural drawings (CAD or PDF) indicating building column grids and clear ceiling heights; (2) Carton or tote dimensions (L×W×H) and maximum gross weight; (3) Total SKU count and required reserve storage depth; (4) Project location and nearest destination sea port.
Q: What is the typical shipping lead time and sea container load capacity?
Standard factory production schedules range from 15 to 25 business days depending on overall steel tonnage. For shipping, upright frames and beams are nested into banded, timber-padded bundles engineered to maximize 40ft High Cube (40HQ) container volume. A standard 40HQ container typically accommodates approximately 22 to 26 metric tons of packed racking components.
Accelerate Your Fulfillment Operations with Factory-Direct Engineering
Send your warehouse layout, carton dimensions, and picking targets. Our certified structural engineers will deliver a free 3D simulation, CAD drawing, and competitive export quotation within 24 hours.
