Industrial Intralogistics Whitepaper & Global OEM Supply
China Best Industrial Pallet Racking Systems Factories & Exporter
Precision-engineered Q235B/Q355B structural steel, certified FEM & RMI compliance, and smart robotic intralogistics systems delivered factory-direct to 120+ global industrial hubs.
High-Throughput Storage Architectures

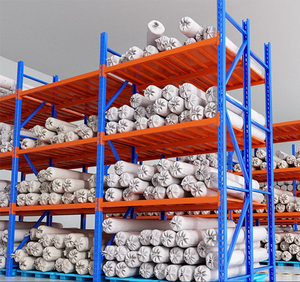

High-Performance Industrial Pallet Racking & Automated Systems
Engineered for maximum spatial volumetric efficiency, floor-slab load distribution, and seamless compatibility with standard counterbalance trucks, reach masts, VNA turrets, and automated guided vehicles (AGVs).
Ultra-high-tolerance Automated Storage and Retrieval System (AS/RS) towering up to 35 meters. High-precision laser-aligned guide rails engineered for high-speed automated stacker cranes and WCS/WMS integrations.
Dynamic gravity-fed roller track beds fitted with centrifugal safety speed controllers and entry pallet separators. Ideal for high-turnover pharmaceutical, perishables, and FMCG dispatch buffers requiring zero energy draw.
Next-generation autonomous four-way robotic shuttle pallet racking. Allows multi-directional longitudinal and transversal lane switching without forklift traffic inside aisles, cutting cold store power dissipation by 40%.
Integrated multi-tier structural steel mezzanine platform doubling or tripling usable cubic square footage without structural building civil expansion. Engineered with roll-formed perforated decking and heavy pallet drop gates.
A rigorous architectural breakdown of China manufacturing tolerances, steel tensile yield properties, and international design safety factors implemented across HEDA racking systems.
Racking Architecture
Standard Steel Grade
Upright Column Profile (mm)
Beam Section Profile (mm)
Safety Deflection Limit
Governing Engineering Standard
Selective Pallet Racking
Q235B / Q355B (High Yield)
80×60, 90×70, 100×70, 120×95
80×50 up to 160×50 Box Beams
L/200 (Design load limit)
EN 15512:2020 / RMI MH16.1
Radio & 4-Way Shuttle Racking
Q355B High-Tensile Plate
90×70, 100×70, 120×95
Galvanized Formed Rail Beams
L/300 (Automated tolerance)
FEM 10.2.02 / AS 4084-2023
Drive-In Racking System
Q235B Structural Coil
90×70, 100×70, 120×95 (Heavy)
Single/Double Flanged Top Beams
L/250 (Lateral stiffness)
EN 15620 / ISO 9001:2015
Automated AS/RS High-Bay
Q355B / Micro-Alloyed
120×95, 140×110 Reinforced
Precision Welded Box/I-Beams
L/400 (Laser crane tracking)
FEM 9.831 / DIN 18800
Structural Steel Mezzanine
Q235B / ASTM A36 / SS400
Square Tubular & H-Beams
Primary H-Beams + C/Z Purlins
L/300 to L/500 (Walkable floor)
AISC 360 / EN 1993 (Eurocode 3)
30,000m²
Smart Production Plant
30,000Tons
Monthly Cold-Form Output
120+
Countries Supplied
100%
Certified Quality Traceability
Market Foresight & Procurement Insights
Future Procurement Trends in Industrial Warehouse Racking (2025–2030)
Global logistics demands have evolved from simple static steel shelving into dynamically modeled, digitally managed intralogistics ecosystems. Enterprise procurement teams must factor these architectural dynamics into their 10-year capital expenditure planning.
Transition from Forklift Aisles to 4-Way Shuttle Automation
Global warehouse operators are actively retrofitting traditional selective aisles to robotic 4-way shuttle lanes. Skyrocketing warehouse land lease rates necessitate volumetric cube utilization rates exceeding 85% compared to the 40% threshold achievable via traditional counterbalance reach trucks.
Elimination of internal forklift lanes reduces structural collision damage by over 92%.
Significant power reduction in cold storage applications via tighter chilled envelope design.
Direct PLC and cloud integration with automated material handling lifts.
Seismic Finite Element Analysis (FEA) Mandates
International building codes across earthquake-prone belts (including the Pacific Rim, Mediterranean, and Central/South Asia) now demand project-specific dynamic response spectrum analysis. China exporters must deliver certified finite element deflection simulations demonstrating frame ductility under peak ground acceleration.
High-ductility steel formulations with minimum elongation percentages exceeding 16%.
Specialized thick baseplate dampening systems and seismic floor anchor shear calculations.
Dual-plane diagonal bracing arrays balancing torsional shear across high-bay runs.
Eco-Passivated Chemical Pretreatment & Low-VOC Finish
Corporate ESG directives have made zero-discharge chemical pretreatment a top priority. Standard solvent-heavy paints are obsolete. Tier-1 exporters utilize continuous multi-stage zirconium/silane nano-ceramic conversion coatings followed by electrostatic curing, passing 500-hour ASTM B117 salt-spray standards.
Heavy-metal-free, zero-phosphate passivation compliant with European RoHS and REACH rules.
Thermosetting TGIC-free polyester powder with 60–90 micron dry film thickness (DFT).
Superior scratch and chemical resistance against forklift tines and battery acids.
E-commerce same-day parcel picking has spurred immense demand for hybrid multi-tier mezzanine platforms constructed directly over heavy selective pallet bases. This enables bulk reserve pallets on ground levels with manual carton pick-modules on upper levels.
Optimizes urban infill warehouse clear heights of 10 to 14 meters.
Integrates carton live-flow conveyors and spiral spiral gravity chutes.
Standardized modular bolted assembly allows rapid dismounting and layout re-configuration.
With ocean shipping freight volatility directly impacting CIF and DDP margins, international buyers evaluate racking manufacturers on their 3D container nesting engineering. Custom bundle geometry ensures maximum utilization of 40HQ containers, preventing empty container space.
Interlocking column profiles bundled with specialized steel-strapped protective wooden dunnage.
Dedicated roll-formed beam packaging preventing point-load denting during sea transit.
Direct factory container ramp stuffing maximizing payload up to 26 metric tons per 40HQ container.
Reliability in heavy industrial storage is governed by material science, connector stiffness, and cyclic fatigue testing. Explore how top Chinese manufacturers ensure structural reliability.
Beam-to-Column Semi-Rigid Joint Testing
The safety of a pallet racking frame is largely dictated by the rotational stiffness of its beam-end connector hooks. Under European EN 15512 codes, connectors undergo physical cantilever bending tests to establish precise moment-rotation curves.
Multi-claw (3, 4, or 5-tooth) cold-stamped connector brackets provide positive locking engagement.
Automated robotic seam-welding connects the beam tubular profile to the end-connector plate.
Because cold-formed upright profiles possess perforated holes along their vertical axis for beam adjustment, their axial load capacity is reduced by hole-flange interactions. Stub column compression testing establishes actual cross-sectional effective area.
Validates distortional buckling, local plate buckling, and torsional-flexural column failure points.
Provides real-world yield data overriding simplified theoretical calculations.
Ensures exact safety factors of 1.65 to 1.95 against catastrophic down-aisle frame collapse.
Smart warehouses are testing optical laser tripwires and piezoresistive strain sensors embedded inside bottom upright columns. When an impact exceeds design tolerances, maintenance teams receive automated alerts for rapid inspection.
Replaces subjective visual inspections with objective, quantified structural deformation metrics.
Allows preventative isolation of affected bays before progressive systemic failure occurs.
Interfaces directly with centralized computerized warehouse maintenance management systems.
Guangzhou HEDA Shelves Co., Ltd.
Direct-From-Factory Chinese Manufacturing Excellence Since 2001
With more than 25 years of relentless manufacturing engineering, Guangzhou HEDA Shelves Co., Ltd. has established itself as one of China's premier heavy industrial warehouse racking designers, manufacturers, and international exporters.
Operating from our modern 30,000 square meter factory in Guangzhou, South China, we maintain a complete in-house production chain—from raw steel coil slitting and automated precision cold-roll-forming lines to robotic welding stations, environmentally compliant multi-stage pickling and phosphating lines, and automated electrostatic powder coating lines.
Our direct proximity to Pearl River Delta international container ports (Guangzhou Nansha, Shenzhen Yantian/Shekou, and Hong Kong) gives us direct ocean transit schedules with reduced drayage times. Whether shipping to Los Angeles, Rotterdam, Jebel Ali, Nhava Sheva, or Singapore, we deliver verified export-grade container strapping and full tracking.
Need custom OEM/ODM profiles? We roll-form custom column hole patterns, specialized teardrop profiles, and bespoke powder colors matching your corporate equipment standards.
Knowledge Base
Frequently Asked Questions: Global Industrial Pallet Racking Procurement
In-depth engineering answers covering steel quality, slab load capacities, customs freight handling, and installation logistics when importing warehouse racking systems from China.
What steel grades are used, and how do Q235B and Q355B compare to Western standards?
HEDA Shelves manufactures racking systems using certified continuous cold-rolled carbon steel coils sourced directly from top-tier state-owned mills (such as Baosteel and Shougang). Q235B corresponds directly to ASTM A36 and European S235JR (minimum yield strength of 235 MPa), providing excellent weldability and ductility for general beam and standard upright applications. For high-bay, heavy cantilever, and automated AS/RS applications, we utilize Q355B, which directly corresponds to ASTM A572 Grade 50 and European S355JR (minimum yield strength of 355 MPa). Every shipment is accompanied by authenticated 3.1 Mill Test Certificates (MTC) detailing chemical composition (carbon, manganese, phosphorus, sulfur) and mechanical tensile yield values.
How does HEDA ensure dimensional accuracy and hole alignment across high-bay columns?
Our upright columns are fabricated on continuous automated cold-roll-forming production lines integrated with CNC hydraulic punching presses. Punch pitch tolerances are maintained within ±0.15mm over a 6-meter span, guaranteeing that when racks are assembled on site, horizontal beams clip in without binding or twisting. Multi-roller progressive profiling ensures that internal residual stresses are mitigated, preventing longitudinal curvature or camber in upright sections up to 12 meters in length.
What warehouse floor slab information is required before generating a structural layout?
To produce an engineered, safety-compliant racking layout, our engineering team requires:
Concrete Slab Thickness & Strength: Typically 150mm to 250mm thickness, with compressive strength ratings (e.g., C20/25, C25/30 or 3,000–4,000 PSI).
Reinforcement Details: Single or double rebar matting or steel fiber reinforcement to verify point-load punch shear limits.
Pallet Dimensions & Overhang: Width × Depth × Height including load, alongside maximum unit gross weight.
Forklift Specifications: Maximum mast reach height, aisle turning radius (AST), and type (Counterbalance, Reach truck, VNA turret, or Walkie stacker).
How is corrosion prevented in high-humidity or cold-storage environments?
Steel profiles undergo an automated industrial 8-stage surface treatment process before coating: degreasing, ultrasonic water rinsing, acid pickling to eliminate scale/rust, cold water neutralizing, phosphating/zirconium passivation, and deionized water rinsing. Next, an electrostatic thermosetting polyester powder coating (60–90 microns dry film thickness) is applied and baked at 180°C–200°C. For sub-zero cold stores (-20°C to -30°C) where condensation cycles occur, or outdoor open-sided sheds, we provide hot-dip galvanized (HDG) steel components in accordance with ISO 1461, providing zinc immersion coating thicknesses of 65 to 85 microns for multi-decade rust immunity.
What certifications and safety compliance codes do HEDA racking systems meet?
Our production protocols and engineering calculations are certified under CE Certification No. 2435-CPR-8605159 and ISO 9001:2015 Quality Management No. 18624Q00169R0M (valid through 2027). Our structural structural designs reference European EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), FEM 10.2.02, American RMI MH16.1 specifications, and Australian Standard AS 4084-2023. Our steel surface finishes comply with European RoHS environmental restrictions on hazardous substances.
How are racking packages bundled and protected against ocean container shipping damage?
Racking components are subject to dynamic ocean transit conditions. Upright frames and column sections are nested with corrugated edge-protectors, plastic wrap bundling, and high-tensile steel strapping attached to heavy wooden support skids. Beams are palletized in interlocking bundles with protective dunnage separating connector tabs to prevent hook deformation. Small hardware (baseplates, row spacers, shims, spring safety lock pins, and anchor bolts) is packed in reinforced corrugated cartons secured to wooden pallets. Our factory container loading teams follow specialized weight distribution plans to ensure clean container extraction without forklift damage upon port arrival.
Do you supply installation services or on-site supervision in international destinations?
Yes. Every international project comes with a comprehensive structural assembly packet: detailed 2D CAD architectural plans, anchor bolt torque charts, 3D component exploded schematics, and bilingual installation video manuals. For large distribution centers and complex multi-tier mezzanine or automated shuttle systems, HEDA deploys certified field installation engineers to supervise local labor crews, verify frame plumbness tolerances (typically within 1/500 under EN 15620), and oversee anchor testing and load signage placement.
What is the standard production lead time and minimum order quantity (MOQ)?
Our standard production lead time for standard selective pallet racking orders (1 to 5 forty-foot high-cube containers) is 14 to 20 calendar days following architectural layout and engineering approval. Custom automated AS/RS projects, specialized mezzanine engineering, or custom powder color formulations require 25 to 35 calendar days. Our flexible industrial manufacturing lines accept orders ranging from single-container projects (approx. 1 FCL) to phased multi-hundred container logistics park infrastructure contracts.
Transform Your Warehouse Volumetric Storage Capacity Today
Connect with our senior logistics system designers. Share your warehouse dimensions, clear height, and pallet specifications to receive a free, zero-obligation structural CAD layout, 3D spatial rendering, and complete landed price proposal within 24 hours.
