FIFO Dynamic Storage

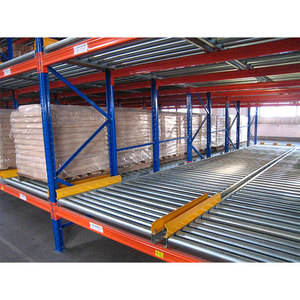

Q235 Steel 2000kg Capacity FIFO Gravity Pallet Flow Rack
Direct From Factory Floor
Engineered High-Density Pallet Racking Systems
Review our benchmark-tested industrial pallet racking architectures manufactured in Guangzhou, China. Engineered using certified Q235B/Q355B structural steel, precision-engineered roll profiles, and anti-corrosive electrostatic powder coatings.
Selective Architecture

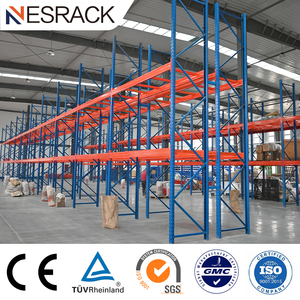

Industrial Heavy Duty 1 Ton Adjustable Pallet Storage Racking
Multi-Tier Integration

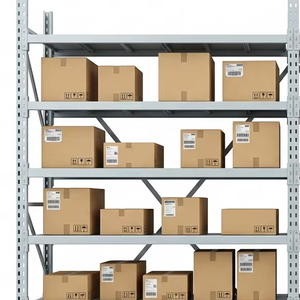

Customized 3-Layer Steel Heavy Duty Mezzanine Platform
Specialized Bulk Handling

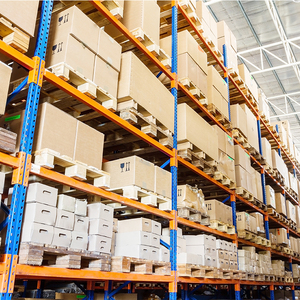

Heavy Duty Fabric Roll Pallet Warehouse Racking Systems
High-Span Manual Picking

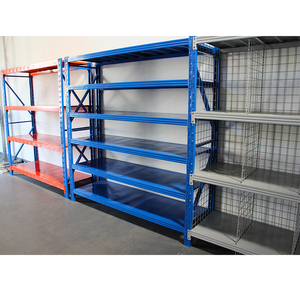

Wide Span Multi-Tier Warehouse Storage Metal Rack System
Standardized Interchange

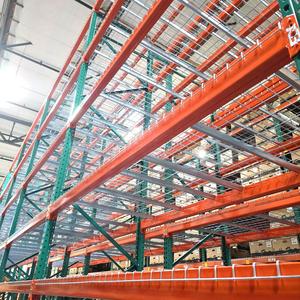

Bolted Heavy Duty Teardrop Pallet Rack With Safety Barrier
Internal Unit Logistics

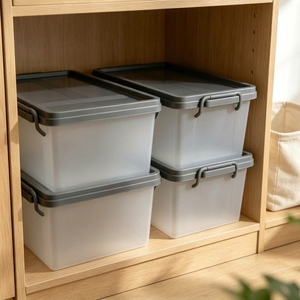

Stackable Airtight Industrial PP Modular Storage Bins
2001
Operational Since
30,000m²
Guangzhou Production Plant
30,000Tons
Monthly Output Capacity
120+
Export Destination Nations
Technical White Paper
Structural Integrity, Metallurgy & Density Optimization in Modern Warehouses
As global supply chains navigate volatile inventory turnover, escalating industrial square-footage leasing rates, and surging fulfillment speed demands, conventional low-density selective storage layouts are systematically yielding to high-density pallet topologies. Warehousing architects, structural consultants, and Chief Supply Chain Officers (CSCOs) require manufacturing partners that deliver not merely steel profiles, but verified static and dynamic engineering load models.
At Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves), every heavy-duty upright, continuous roll-formed box beam, and seismic base assembly is manufactured from prime cold-rolled steel coils conforming strictly to Q235B and high-yield Q355B classifications. The physical performance of steel racking under cyclic load distributions depends on the mechanical properties of cross-sectional geometries, hole-punch precision along the vertical neutral axis, and beam connector moment capacities.
Q355B Structural Metallurgy
Guaranteed minimum yield strengths of 355 MPa. Superior modulus of elasticity prevents localized post-buckling under eccentric seismic pallet loading.
Pickling & Phosphating
Continuous 10-stage immersion pretreatment eliminates all mill scale and surface oxides, ensuring 500+ hours of ASTM salt-spray resistance in humid climates.
Dynamic Finite Element Analysis
Every custom layout is pre-simulated under ANSYS and SAP2000 FEA suites to calibrate beam deflection ratios safely within the rigid L/250 limit.
High-density racking configurations resolve the spatial bottleneck of traditional aisles by consolidating storage bays into continuous drive-in matrices, push-back carts, gravity roller channels, or automated radio shuttle lanes. By eliminating 50% to 70% of redundant transit aisles, warehouse footprint utilization shifts dramatically from a standard 35% selective baseline up to an exceptional 80% to 85% volumetric density.
Architectural Decision Matrix
High-Density Storage Topology Comparison
Consulting engineers should review the technical boundary conditions below to match facility turnover velocity, SKU profile counts, and material handling equipment (MHE) infrastructure against optimal racking frames.
| System Type | Volumetric Efficiency | Access Principle | Throughput Speed | Typical Depth / Lane | Primary Industrial Use-Case |
|---|---|---|---|---|---|
| Radio Shuttle Racking | Ultra High (85%+) | FIFO or LIFO | Rapid (Automated) | Up to 40 Pallets | Cold Storage, Deep Freeze, Beverage, FMCG |
| Gravity Pallet Flow | High (75-80%) | Strict FIFO | Continuous Flow | 2 to 20 Pallets | Perishables, Pharmaceuticals, Production Buffers |
| Push Back Racking | Medium-High (70%) | LIFO | Moderate | 2 to 6 Pallets | Medium SKU Diversity, Staging Aisle Buffers |
| Drive-In / Drive-Through | High (75%) | LIFO (Drive-In) / FIFO | Low-Moderate | 5 to 12 Pallets | Homogeneous Raw Materials, Agricultural Crops |
| Very Narrow Aisle (VNA) | Medium (65%) | 100% Direct Selective | High | Single Deep | High-Bay E-Commerce Hubs, Specialized Parts |
| Rack-Supported Mezzanine | 200-300% Floor Gain | Hybrid Selective/Manual | High Manual Pick | Multi-Level | Automotive Aftermarket, Garments, Parcel Sortation |
Market Forecast 2025–2030
Future Procurement Trends in High-Density Logistics
The global intralogistics procurement landscape is undergoing three irreversible transitions driven by labor constraints, energy decarbonization targets, and automated warehouse material-handling systems. Procurement directors should formulate multi-year capital expenditure strategies aligned with these technological vectors:
1. Automated Shuttle & AMR Convergence
Standalone radio shuttles are transitioning toward interconnected 4-direction multi-level shuttle systems and Autonomous Mobile Robots (AMRs). Static racks now require millimeter-accurate laser beam alignments and ultra-flat floor tolerance specifications (DIN 18202 / ASTM E1155) to support lights-out warehouse robotics.
2. Cold-Chain Thermal Volumetrics
Refrigeration energy expenditure represents up to 60% of total operational costs in temperature-controlled warehouses (-25°C to -40°C). High-density radio shuttle and gravity racking compact chilled air voids, achieving up to a 40% reduction in thermal dispersion per metric ton of stored frozen goods.
3. Structural Resilience & Green Steel
International tenders increasingly mandate Environmental Product Declarations (EPDs), heavy metals compliance (RoHS), and carbon-accounted steel mill certifications. In earthquake-prone zones across the Pacific Rim and South Asia, dynamic ductile beam connection nodes compliant with EN 15512:2020 are now compulsory specifications.
Why Partner With HEDA
Guangzhou HEDA Shelves: 25-Year Export Authority
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown from a specialized cold-roll fabrication workshop into one of China's premier heavy-duty warehouse racking and industrial mezzanine exporters. Headquartered in Guangzhou, our consolidated 30,000-square-meter manufacturing plant houses automated CNC profile rolling machines, robotic continuous-bead welding stations, and an advanced automated powder coating line capable of exceeding 30,000 metric tons of finished racking shipments monthly.
HEDA Shelves 10-Stage Industrial Manufacturing Pipeline
01
Raw Steel Audit
Direct Q235B/Q355B coil spectrometer testing.
02
Precision Slitting
Laser-guided edge slitting to +/-0.1mm tolerance.
03
CNC Punching
High-speed mechanical presses form pitch slots.
04
Cold Roll Forming
Multi-station cold rolling prevents micro-fractures.
05
Box Beam Seaming
Interlocking double-C roll forming for max inertia.
06
Robotic Welding
Automatic CO2 shielded beam claw welding.
07
Chemical Pickling
Acidic descaling bath strips all oxidation.
08
Phosphating Coat
Nanoscale conversion layer seals steel pores.
09
Powder Curing
Electrostatic epoxy curing at 200°C for durability.
10
Bundling & Loading
Nesting components into 40HQ sea containers.
We provide full project life-cycle assurance. Our engineering division operates dedicated structural layout teams utilizing advanced AutoCAD, Tekla Structures, and 3ds Max visualization tools. Clients globally receive comprehensive static load computations, seismic compliance documentation, and clear 3D assembly manifests prior to factory fabrication.
Direct Engineering Answers
High-Density Pallet Racking Procurement FAQ
Essential engineering and logistical considerations evaluated by industrial procurement officers, project engineers, and warehouse managers before awarding overseas manufacturing contracts.
What structural information is required to engineer a custom warehouse layout?
To generate an optimized AutoCAD blueprint, our engineering team requires: (1) Architectural drawing detailing building boundaries, column grid coordinates, and sprinkler or lighting drops; (2) Finished warehouse clear height to roof trusses; (3) Concrete slab thickness, compressive strength (e.g., C25/30), and ground subgrade bearing rating; (4) Pallet envelope dimensions (W x D x H) including product overhang, along with minimum and maximum unit gross weights; (5) Forklift model specifications, specifically mast collapsed height, turning radius, and maximum lift ceiling.
How does HEDA Shelves ensure protection against maritime transport and monsoon humidity?
Corrosion defense begins with our 10-stage automated surface treatment. Components undergo immersion acid pickling to eliminate scale, hot phosphating to generate a micro-crystalline iron-phosphate adhesion layer, followed by automated electrostatic epoxy-polyester powder spraying cured at 200°C. For tropical or coastal operations (e.g., Chennai, Chattogram, Colombo), or low-temperature cold rooms, hot-dip galvanized components (ISO 1461) can be specified, providing active zinc sacrificial barrier protection against 100% relative humidity.
What international engineering and structural standards do your systems meet?
HEDA racking systems are engineered in strict alignment with European Standard EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), Australian Standard AS 4084-2012, and the American RMI (Rack Manufacturers Institute) MH16.1 specifications. Our factory holds verifiable CE certification No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System credential No. 18624Q00169R0M, and RoHS green environmental certifications.
How are long racking profiles packed to maximize container stowage and reduce freight costs?
Freight efficiency is calculated directly during our CAD engineering phase. Upright frames are either shipped pre-bolted or knock-down (unbolted for extreme freight compaction), allowing upright profiles, horizontal bracing, and diagonal struts to nest closely together. Beams are bundled with timber dunnage and heavy-duty steel strappings protected with corrugated edge boards. A standard 40-foot high-cube (40HQ) container is systematically loaded to its maximum payload capacity (typically 26 to 28 metric tons), minimizing landed shipping costs per pallet position.
What is the typical production lead time and overseas installation workflow?
Standard project production runs take between 15 to 25 business days depending on total steel tonnage and customization depth. Every export shipment includes detailed piece-numbered packing lists, high-resolution 2D CAD elevation diagrams, 3D structural drawings, and recorded video assembly walkthroughs. For enterprise-scale distribution centers and complex mezzanine builds, HEDA Shelves deploys on-site supervisory engineers to manage, inspect, and certify the installation alongside your local contractor teams.
Can HEDA racking interface directly with existing warehouse management systems (WMS)?
Yes. Our dynamic storage systems—including Radio Shuttle and Gravity Pallet Flow lanes—are engineered to interface seamlessly with modern digital warehouse operations. We integrate barcode and QR-code bay labeling brackets, RFID positioning markers, and automated optical sensors directly into beam profiles and shuttle tracks, ensuring high accuracy pick-to-light, pick-by-voice, and real-time inventory tracking routines.
Plan Your High-Density Warehouse With Senior Storage Engineers
Eliminate wasted warehouse volume and reduce capital expense overhead. Connect directly with Guangzhou Heda Shelves engineering specialists to receive a complimentary AutoCAD floor plan layout, 3D render, and structural load analysis within 24 hours.
