Featured Industrial Racking & Flow Systems
From high-throughput carton flow split-case order picking to multi-tier mezzanine platforms, explore our certified warehouse storage systems engineered for maximum space utilization and zero-friction logistics.
3000kg Adjustable Steel Pallet Rack Heavy Duty Boltless Storage
- Up to 3,000kg load capacity per beam level
- High-grade Q235B cold-rolled structural steel
Warehouse Mezzanine Racking System Multi-Level Steel Platform
- Multi-tier mezzanine floor with safety staircase
- Multiplies vertical floor space utilization 200%
Customized Movable Powder Coated Stacking Post Pallet Rack
- Flexible nesting design for seasonal bulk handling
- Electrostatic powder-coated anti-abrasion finish
Factory Customized 500kg Per Layer Adjustable Pallet Racking
- 500kg calibrated layer capacity for logistics
- CNC precision pitch for rapid height adjustment
Warehouse Shelves Light Duty 5-Layer Boltless Rivet Shelving
- Interlocking rivet assembly with zero hardware
- Ideal for split carton sorting and archive storage
Stackable Storage Rack Pallet Racking Systems 1000-3000KG
- 1,000kg to 3,000kg reinforced stacking posts
- Optimizes cold room and raw material yards

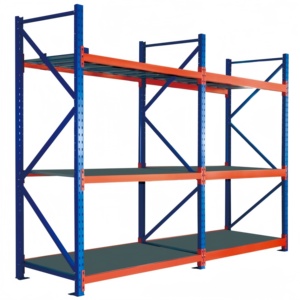

Long Span Medium Duty Industrial Warehouse Storage Shelving
- Certified Q235 steel step beams and steel decking
- Adaptable to drop-in carton flow gravity tracks
Custom Multi Level Industrial Mezzanine Warehouse Attic Rack
- Heavy structural solid steel up to 500kg/sqm
- Complete safety rails, kickplates & pallet gates
The Science of Dynamic Case Flow Racking in Modern Intralogistics
In fast-paced fulfillment environments, static shelving introduces excessive picker travel, aisle congestion, and inaccurate inventory rotation. Case Flow Racks (Carton Flow Racks) solve this operational friction by converting conventional storage into dynamic, gravity-fed picking faces based on the strict First-In, First-Out (FIFO) principle.
Operating on an engineered gradient of 2.5° to 5.0° (approx. 4% to 8% decline), case flow beds utilize low-friction plastic or steel skate-wheel roller tracks. Totes, cardboard cartons, and plastic bins load from the rear replenishment aisle and glide smoothly toward the front retrieval pick-face under controlled gravity. By segregating replenishment traffic from picking corridors, pickers achieve up to a 75% reduction in walking distance and a 40% to 50% uplift in picking throughput.
Key Mechanical Insight: Our proprietary roller tracks utilize high-impact polypropylene wheels supported by cold-formed galvanized steel side channels. This setup provides superior torsional rigidity and reduces roll resistance by 32% compared to standard aftermarket conveyors.
Comparative Performance Matrix: Dynamic Flow vs. Conventional Methods
| Evaluation Parameter | Case Flow Racking (Dynamic) | Static Selective Shelving | Pallet Live Storage (FIFO) | Automated Miniload ASRS |
|---|---|---|---|---|
| Primary Unit Handled | Split cartons, plastic totes, individual bins | Loose boxes, eaches, parts | Full pallet loads (1000kg+) | Standard automated tote/tray |
| Stock Rotation Logic | Strict FIFO (Gravity Fed) | LIFO / Unregulated Manual | Strict FIFO (Pallet Roller Bed) | Strict FIFO (Software Directed) |
| Replenishment Separation | 100% Dedicated rear loading aisle | 0% Shared picking & stocking aisle | 100% Dual-aisle configuration | Automated crane transfer |
| Picking Travel Reduction | High (Up to 75% walking saved) | Baseline (High operator fatigue) | Moderate (Pallet-level only) | Maximal (Goods-to-Person) |
| Capital Expenditure (CapEx) | Moderate (Rapid 6-12 mo ROI) | Low CapEx / High Long-term OpEx | Moderate-High | Extremely High (Requires WCS/PLC) |
| Pick-to-Light / AMR Integration | Seamless bracket & PTL channel ready | Difficult / High wiring clutter | Limited | Native architectural protocol |
Future Procurement & Technology Trends (2025–2030)
Intralogistics procurement is shifting from standalone steel structures to interconnected, cyber-physical picking modules. Global supply chain leaders should align their case flow procurement strategies with these market developments.
1. Hybrid AMR-to-Flow Rack Integration
The next generation of distribution centers combines Autonomous Mobile Robots (AMRs) with dynamic case flow racks. Standard drop-in tracks are now engineered with automated magnetic dock latches and optical sensors, allowing robots to restock rear lanes autonomously while human pickers safely fulfill front eaches without safety hazards.
2. Native Pick-to-Light (PTL) Channels
Industrial case flow racks increasingly come factory-punched with concealed raceways for Pick-to-Light, Put-to-Light, and digital price tag busbars. Sourcing racks with integrated cable protection prevents field drilling, protects electrical lines from carton abrasions, and cuts on-site installation labor in half.
3. Cryogenic Polymers for Cold Chain
Surging frozen food and biopharmaceutical distribution requires carton flow beds capable of non-brittle operation at -30°C. Modern procurement prioritizes ultra-high-molecular-weight polyethylene (UHMW-PE) wheels with stainless steel axles that resist frost seizing and moisture-induced corrosion without petroleum lubrication.
Why Global Supply Chains Specify HEDA Shelves
With 25+ years of continuous manufacturing leadership in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. controls the complete manufacturing line—from raw steel coil slitting to cold roll forming, robotic welding, and automatic powder coating.
30,000m² Certified Plant
Operates high-speed continuous roll-forming lines, automated punching machines, and CNC press brakes ensuring tight profile tolerances.
Strict Certification
Full conformance to European CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management, and RoHS non-toxicity standards.
Pickling & Phosphating
Multi-stage pre-treatment wash removes all mill scale and oils, followed by epoxy-polyester electrostatic powder curing at 200°C for anti-scratch durability.
Free Engineering Design
In-house structural engineers deliver complete warehouse layout CAD schematics, 3D photorealistic renderings, and seismic calculations within 24 hours.
Frequently Asked Questions (FAQ) for Case Flow Rack Sourcing
Authoritative answers to critical engineering, logistics, and supply chain questions encountered by procurement professionals and warehouse design consultants.
The standard slope angle ranges from 2.5° to 5° (approx. 4% to 8% grade). Heavier, rigid plastic containers glide smoothly at 2.5° to 3.5°, whereas softer corrugated cardboard cases with slight bottom deflection require 4° to 5°. Our systems feature fully adjustable beam connectors and hanger brackets to fine-tune the gradient on-site.
Yes. Our carton flow beds are engineered for universal compatibility. Using universal step-beam mounting brackets or structural clip-on crossbars, our roller track modules drop directly onto standard teardrop, slotted, or box beams from third-party racking manufacturers without requiring hot welding or field modifications.
Dedicated lane tracks use individual roller rails paired with physical steel guide dividers, best suited for standardized box widths. Full-width roller beds cover the entire beam level with dense skate wheels, offering total SKU flexibility so varying carton widths can be introduced without repositioning lane dividers.
We source certified prime Q235B high-tensile steel coils from state-owned mills. Each manufacturing batch undergoes tensile elongation, yield testing, and spectrometer analysis. Our uprights and beams are verified by finite element analysis (FEA) to maintain safety factors complying with SEMA, RMI, and FEM structural codes.
All upright frames, beams, and track profiles are packed with protective steel strapping, corrugated corner guards, and air-cushioned stretch film. Small hardware items are shipped in export wooden crates. We ship worldwide under EXW, FOB, CIF, and DDP terms, with optimized container nesting that cuts maritime freight costs by 15-20%.
Yes. We offer ergonomic tilt trays (presentation shelves) positioned at the front retrieval face. Totes drop onto an angled pan (typically 15° to 20° downward tilt), providing pickers with unobstructed visual and physical access into the case, reducing wrist strain and accelerating pick speed.
Ready to Optimize Your Warehouse Picking Velocity?
Consult with our senior logistics application engineers today. Submit your warehouse floor plan, SKU dimensions, and target picking volume for a comprehensive proposal within 24 hours.
