Precision-Engineered Industrial Storage Systems
Explore our international range of CE-certified heavy-duty, medium-duty, carton flow, and automated radio shuttle racking systems built for modern high-density fulfillment centers.
Engineering High-Density Spatial Efficiency: The Architecture of Narrow Racking Systems
In modern logistics engineering, floor space is one of the highest operational expenditures. Industrial facilities worldwide face accelerating industrial land costs, rising urban warehouse rents, and stringent throughput mandates.
To maximize volumetric storage capacity, logistics directors and structural consultants are migrating from wide-aisle selective systems to Very Narrow Aisle (VNA) racking systems and high-density narrow racking architectures. As a premier CE certified narrow racking systems exporter, Guangzhou Heda Shelves Co., Ltd. delivers structural steel racking designed according to rigorous European standards (EN 15512, FEM 10.2.02) and international building codes.
1. Mechanical Principles of Very Narrow Aisle (VNA) Racking
Very Narrow Aisle racking reduces working aisle widths from standard dimensions (typically 3.5 to 4.2 meters) down to a compact 1.5 to 1.8 meters. By compressing aisle dimensions and utilizing vertical building clear heights up to 18 meters, VNA configurations unlock up to 45% to 60% additional pallet positions within the exact same building footprint.
Operation within narrow racking systems relies on specialized material handling equipment (MHE), such as VNA articulated trucks, turret trucks, or Automated Guided Vehicles (AGVs). Guidance inside the aisles is maintained via either mechanical floor-mounted guide rails or inductive wire-guidance systems embedded in the concrete slab floor.
2. Structural Integrity & Structural Steel Specifications
Because VNA and narrow racking configurations extend vertically with narrow base-to-height ratios, structural deflection, lateral stability, and beam connection stiffness must be precisely calculated. Our engineering team utilizes high-grade cold-formed steel coils (typically Q235B and Q355B structural steel grades) featuring continuous roll-formed profile geometries with multiple stiffening ribs.
Beam-to-upright connections utilize heavy-duty 3 to 5-claw connectors equipped with automatic mechanical safety locks. This design prevents accidental beam dislodgement under high-speed forklift operation and seismic shear stresses. In compliance with EN 15512 structural guidelines, all finite element stress analyses account for both vertical dead/live loads and sway imperfections, second-order effects, and dynamic loading during pallet placement.
System Comparison: Wide Aisle vs. Very Narrow Aisle (VNA) Racking
Evaluate structural parameters, operational requirements, and floor slab tolerances when planning high-density warehouse storage conversions.
| Engineering Parameter | Standard Selective Racking | Narrow Aisle Racking (VNA) | Radio Shuttle Racking System |
|---|---|---|---|
| Operating Aisle Width | 3.5m – 4.2m | 1.5m – 1.8m | 2.8m – 3.2m (Front Aisle Only) |
| Floor Utilization Rate | 35% – 40% | 60% – 70% | 75% – 85% |
| Direct SKU Accessibility | 100% Direct Access | 100% Direct Access | LIFO / FIFO Lane-based |
| Maximum Stacking Height | Up to 11 Meters | Up to 18 Meters | Up to 15 Meters |
| Floor Flatness Requirement | Class ISO 12464 Standard | Super Flat Slab (ASTM FF 45 / FL 35) | Standard Industrial Floor |
| MHE Guidance Required | None Required | Mechanical Rails / Inductive Wire | Automated Internal Shuttle |
| CE & ISO Certification Standard | EN 15512 / ISO 9001 | CE EN 15512 / FEM 10.2.02 | CE Machinery Directive / EN 15512 |
Future Procurement Trends in Global Racking Systems (2026–2035)
As supply chains adapt to automated fulfillment, cold-chain expansion, and carbon-neutral corporate mandates, the procurement landscape for warehouse racking systems is experiencing a paradigm shift. Global exporters must supply equipment that integrates seamless automation with material circularity.

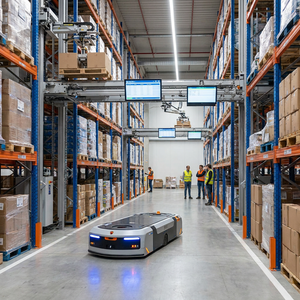

1. Integration with Autonomous Mobile Robots (AMR) & AGVs
Future narrow racking systems are no longer designed solely for human-operated turret trucks. Precision manufacturing tolerances are required to accommodate optical guidance sensors, magnetic floor tracks, and automated 3D radio shuttle carriers operating inside high-density channels.
2. Verification of CE Compliance & FEM Standards
Global logistics operators now demand verifiable CE mark documentation, factory audit trails, and third-party quality compliance (such as EN 15512). Buying certified racking ensures structural safety, reduces liability exposure, and guarantees certified structural loading capacity under severe thermal or seismic events.
3. Sustainable Anti-Corrosion Surface Finishing
Procurement departments prioritize environmental lifecycle performance. Pre-treatment chemical processes are transitioning to non-toxic zirconium pickling and phosphating, coupled with electrostatic thermosetting powder coatings that emit zero volatile organic compounds (VOCs) while extending salt-spray rust resistance beyond 500 hours.
Guangzhou Heda Shelves Co., Ltd.: Global Manufacturing Strength
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown into an international leader in heavy-duty racking design, custom OEM manufacturing, and global exporting.
State-of-the-Art Production Facility
Our 30,000 square meter factory in Guangzhou, China, operates advanced automated roll-forming production lines, precision laser cutters, automatic punching presses, and robotic welding stations. With a monthly production output exceeding 30,000 metric tons, we handle large-scale global fulfillment projects with short lead times.
Full CE & ISO 9001:2015 Certification
We maintain strict quality control at every stage—from raw steel coil inspection to final electrostatic powder coating. Our products carry official CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Quality Management certification, and RoHS compliance, allowing smooth customs clearance and regulatory acceptance in South Asia, Europe, Middle East, and the Americas.
Free 3D Layout & Structural Engineering Consultation
We provide full project design services prior to contract execution. Our professional logistics engineers analyze your warehouse CAD floor plan, floor slab strength, forklift specs, and SKU profiles to generate detailed 2D layout drawings, 3D visual renderings, and complete structural load stress reports—free of charge.
Global Export Logistics & Installation Guidance
Having exported to over 120 countries and regions worldwide, our logistics team manages container loading optimization (20GP / 40HQ) to minimize ocean freight costs. Every container shipment includes color-coded component tagging, step-by-step assembly drawings, installation videos, and remote or on-site engineering supervision.
Frequently Asked Questions: Narrow Racking Systems Procurement
Expert engineering answers to common technical, regulatory, and freight questions raised by industrial buyers and logistics project managers.
The primary difference lies in operational aisle width and spatial efficiency. Standard selective pallet racking requires aisle widths between 3.5m and 4.2m to allow standard counterbalance forklifts to turn and stack pallets. VNA racking reduces the aisle width to 1.5m–1.8m by utilizing specialized VNA turret trucks or guide rails. This enables up to 60% higher pallet capacity within the same building footprint while retaining 100% direct access to every SKU.
CE certification (specifically complying with EN 15512 standards for steel static storage systems) certifies that the racking system has undergone comprehensive structural testing, stress verification, and dynamic deflection modeling. It guarantees that cold-formed profiles, welds, and beam connectors safely support rated payload capacities without risk of collapse under operational vibration or seismic events. It is a mandatory safety benchmark for global customs and enterprise facility audits.
Because narrow aisle racking often extends up to 15–18 meters high, floor slab flatness is critical to prevent mast sway and forklift tipping. VNA installations typically require a Super Flat Floor specification (compliant with ASTM FF 45 / FL 35 or DIN 15185 tolerances). Additionally, concrete slab thickness should generally measure at least 200mm to 250mm with a minimum compressive strength rating of C30/37 to anchor heavy baseplates under high point loads.
All steel structural members produced by Guangzhou Heda Shelves undergo a multi-stage automated pre-treatment line including degreasing, acid pickling, and phosphating. After pretreatment, components are coated with high-durability electrostatic thermosetting powder coating and heat-cured at 200°C. For extreme environments—such as coastal ports or cold-chain freezers—we offer hot-dip galvanizing options that provide long-term rust prevention under high humidity and sub-zero condensation.
To prepare an accurate engineering drawing and structural proposal, please provide: (1) Warehouse building dimensions (length, width, clear height, and column placement CAD); (2) Pallet dimensions including load height and total weight per pallet; (3) Operational SKU count and daily throughput targets; (4) Forklift truck specifications (maximum lift height and turning radius) or preference for VNA/Shuttle automation.

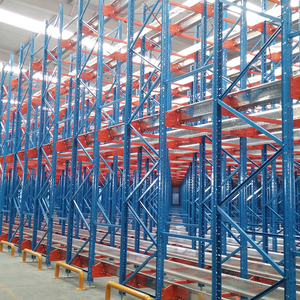

Yes. Our engineering department specializes in automated racking sub-structures. We supply high-precision cold-rolled drive rails, optical sensor positioning notches, and shuttle channels designed specifically for battery-powered radio shuttles and automated guided vehicles (AGVs), delivering semi-automated or fully automated high-density storage solutions.
Ready to Upgrade Your Warehouse to CE Certified High-Density Racking?
Consult with our senior structural logistics engineers today. Receive a free CAD layout drawing, structural load calculation, and factory-direct export proposal within 24 hours.
